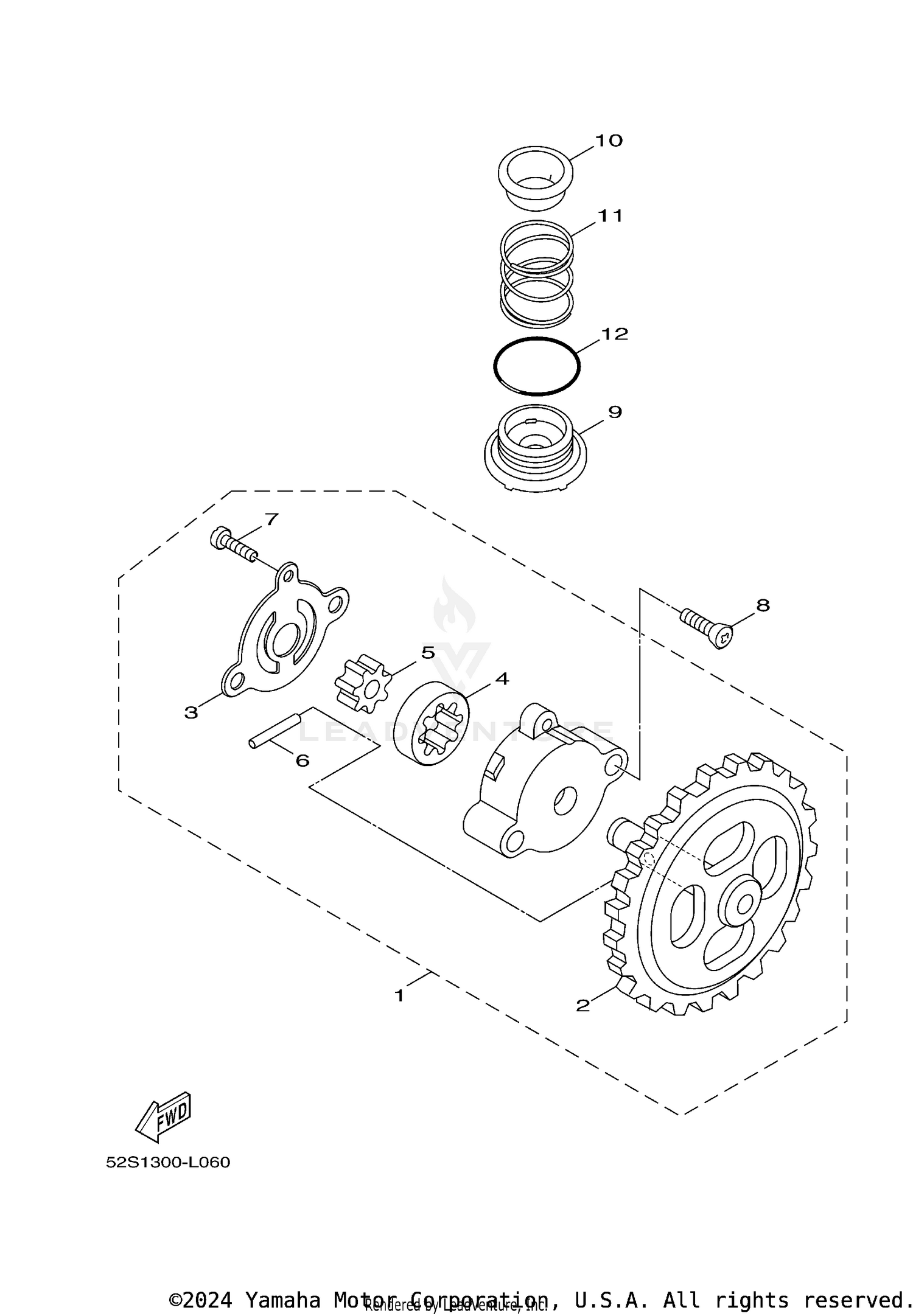

OIL PUMP
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 52S-E3300-00-00 | OIL PUMP ASSY Price: $30.99 |
| 2 | 52S-E3325-00-00 | GEAR, PUMP DRIVEN Price: $6.99 |
| 3 | 5P0-E3316-00-00 | COVER, PUMP Price: $1.40 |
| 4 | 5P0-E3336-00-00 | HOUSING, ROTOR Price: $4.05 |
| 5 | 5MX-E3310-00-00 | ROTOR ASSY 1 Price: $4.95 |
| 6 | 93602-11144-00 | PIN, DOWEL Price: $5.49 |
| 7 | 5LW-E5481-00-00 | BOLT 1 Price: $0.99 |
| 8 | 98580-05525-00 | SCREW, PAN HEAD This part replaces 98502-05025-00. Price: $2.00 |
| 9 | 3UH-E5351-00-00 | PLUG, DRAIN Price: $3.15 |
| 10 | 3KW-E3411-00-00 | STRAINER, OIL Price: $8.99 |
| 11 | 90501-16829-00 | SPRING, COMPRESSION Price: $1.00 |
