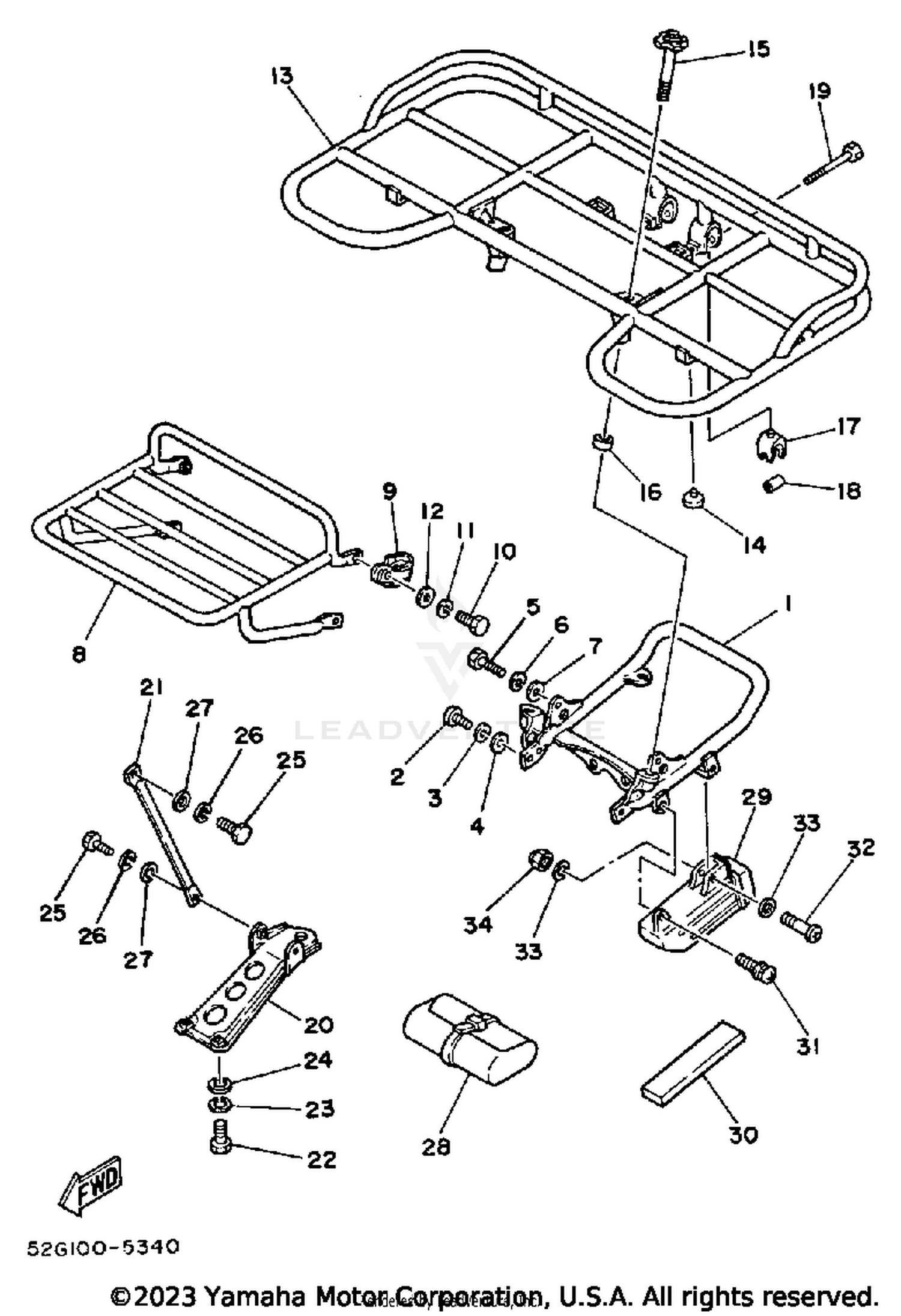

| Ref | Part Number | Description |
|---|
| 2 |
97013-08016-00 |
BOLT This part replaces 97313-08016-00. Price: $1.55 |
| 3 |
92990-08100-00 |
WASHER, SPRING Price: $5.60 |
| 4 |
92990-08600-00 |
WASHER, PLATE This part replaces 92901-08600-00. Price: $2.70 |
| 5 |
97013-08020-00 |
BOLT (661) This part replaces 97313-08020-00. Price: $1.80 |
| 6 |
92990-08100-00 |
WASHER, SPRING Price: $5.60 |
| 7 |
92990-08600-00 |
WASHER, PLATE This part replaces 92901-08600-00. Price: $2.70 |
| 8 |
24W-24832-00-00 |
BRACKET,CARRIER 1 Price: $61.68 |
| 9 |
24W-24833-00-00 |
BRACKET,CARRIER 2 Price: $39.99 |
| 10 |
97013-08020-00 |
BOLT (661) This part replaces 97313-08020-00. Price: $1.80 |
| 11 |
92990-08100-00 |
WASHER, SPRING Price: $5.60 |
| 12 |
92990-08600-00 |
WASHER, PLATE This part replaces 92901-08600-00. Price: $2.70 |
| 13 |
24W-24830-00-00 |
SUB CARRIER ASY Price: $201.99 |
| 14 |
107-24741-00-00 |
PAD, SEAT Price: $8.99 |
| 15 |
24W-23450-00-00 |
KNOB,HANDLEBAR Price: $29.99 |
| 16 |
90480-10258-00 |
GROMMET Price: $2.80 |
| 17 |
24W-2483H-00-00 |
BAND Price: $9.49 |
| 18 |
90560-06243-00 |
SPACER Price: $9.49 |
| 19 |
97017-06035-00 |
BOLT, HEX This part replaces 90119-06046-00. Price: $4.20 |
| 20 |
24W-24867-00-00 |
HOOK Price: $69.99 |
| 21 |
24W-24819-00-00 |
STAY, REAR Price: $14.49 |
| 22 |
97017-10020-00 |
BOLT This part replaces 97011-10020-00. Price: $9.49 |
| 23 |
92990-10100-00 |
WASHER, SPRING Price: $3.25 |
| 24 |
92990-10600-00 |
WASHER, PLATE Price: $3.00 |
| 25 |
90101-08691-00 |
BOLT, HEX This part replaces 97313-08018-00. Price: $4.65 |
| 26 |
92990-08100-00 |
WASHER, SPRING Price: $5.60 |
| 27 |
92990-08600-00 |
WASHER, PLATE This part replaces 92901-08600-00. Price: $2.70 |
| 28 |
59V-28100-00-00 |
TOOL KIT (24W-28100-00) Price: $42.99 |
| 29 |
1T2-21107-00-00 |
TOOL BOX Price: $36.99 |
| 30 |
24W-24183-00-00 |
DAMPER,LOCATING 3 Price: $5.49 |
| 31 |
90159-06060-00 |
SCREW, WITH WASHER Price: $9.49 |
| 32 |
98580-06040-00 |
SCREW, PAN HEAD (90501-06040-00 Price: $9.49 |
| 33 |
90201-06M08-00 |
WASHER, PLATE This part replaces 90201-06050-00. Price: $2.50 |
