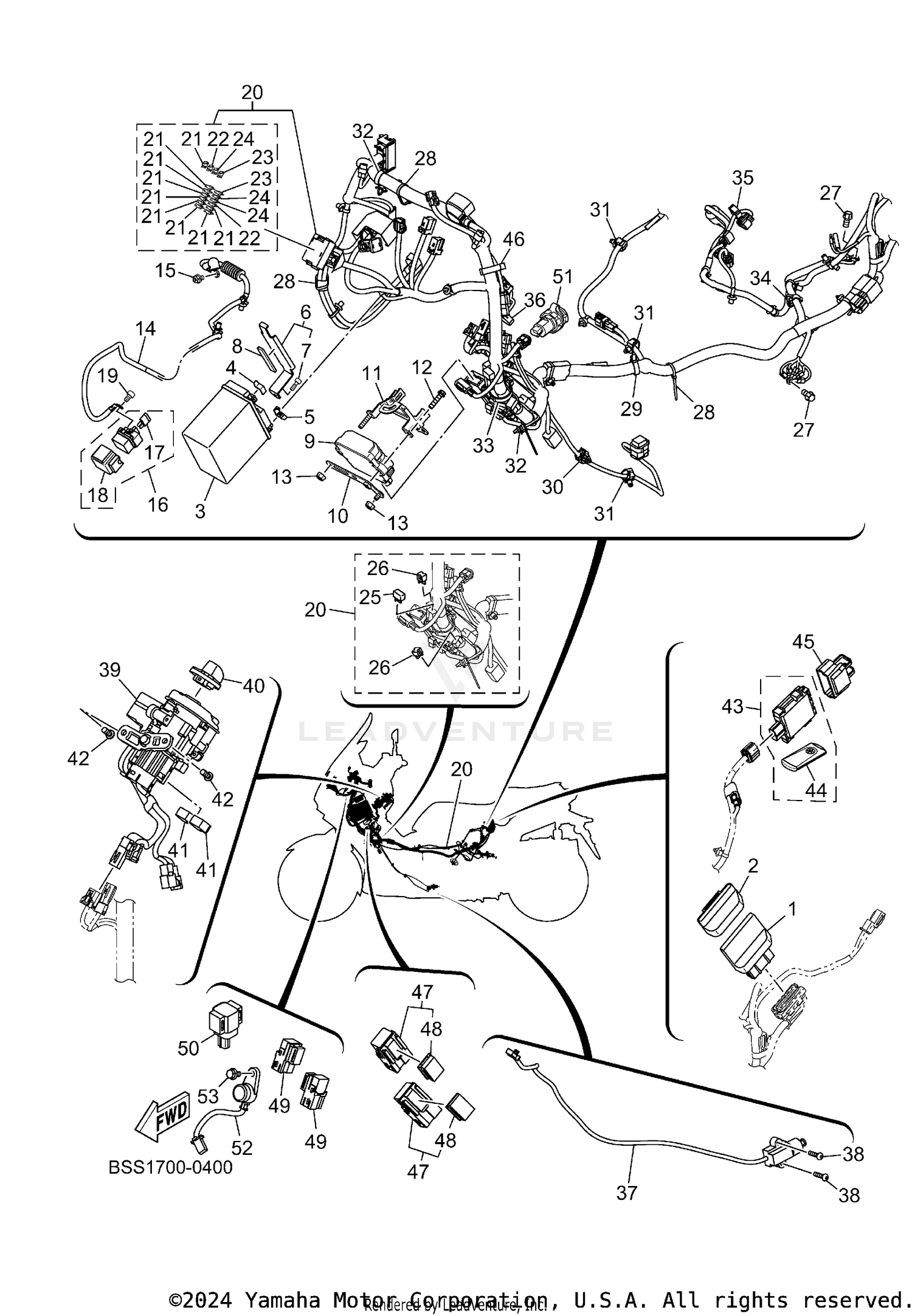

| Ref | Part Number | Description |
|---|
| 1 |
BSS-H591A-00-00 |
ENGINE CONTROL UNI Price: $152.99 |
| 2 |
B5V-H5546-00-00 |
BAND Price: $3.95 |
| 3 |
1WD-H2100-01-00 |
BATTERY ASSY (GS G Price: $110.99 |
| 4 |
BSS-H215B-00-00 |
CAP Price: $2.20 |
| 5 |
BSS-H215B-00-00 |
CAP Price: $2.20 |
| 6 |
BSS-F139C-00-00 |
BTRY.BOX BRKT. ASS Price: $8.49 |
| 7 |
90110-05816-00 |
BOLT, HEXAGON SOCK Price: $0.50 |
| 8 |
90520-04826-00 |
DAMPER, PLATE Price: $1.75 |
| 9 |
BSS-H1963-01-00 |
GENERATOR CONTROL UNIT Price: $184.99 |
| 10 |
BSS-H3614-00-00 |
BRACKET Price: $3.50 |
| 11 |
BSS-H1915-00-00 |
PLATE, REGULATOR F Price: $11.99 |
| 12 |
95027-06025-00 |
BOLT, FLANGE Price: $4.16 |
| 13 |
95707-06500-00 |
NUT, FLANGE Price: $1.00 |
| 14 |
BSS-H1815-00-00 |
CORD, STARTER MOTO Price: $36.99 |
| 15 |
90149-05018-00 |
SCREW Price: $8.49 |
| 16 |
1WD-H1940-00-00 |
STARTER RELAY ASSY Price: $37.99 |
| 18 |
1WD-H2155-00-00 |
BAND Price: $2.35 |
| 19 |
91312-05008-00 |
BOLT, HEXAGON SOCKET HEAD Price: $8.49 |
| 20 |
BSS-H2590-00-00 |
WIRE HARNESS ASSY Price: $412.99 |
| 21 |
BKA-H2151-00-00 |
FUSE Price: $1.30 |
| 23 |
BKA-H2151-60-00 |
FUSE Price: $1.30 |
| 24 |
BSS-H2151-20-00 |
FUSE (20A) Price: $1.40 |
| 25 |
4WA-81980-00-00 |
DIODE ASSY Price: $32.99 |
| 26 |
3WP-81980-00-00 |
DIODE ASSY Price: $24.99 |
| 27 |
95E32-06012-00 |
BOLT, FLANGE DEEP RECESS Price: $1.10 |
| 28 |
1UA-82591-00-00 |
BAND This part replaces 90464-36800-00. Price: $5.49 |
| 29 |
90464-24230-00 |
CLAMP Price: $8.49 |
| 30 |
90464-10008-00 |
CLAMP Price: $3.80 |
| 31 |
90464-12018-00 |
CLAMP Price: $2.65 |
| 33 |
90464-36802-00 |
CLAMP Price: $2.05 |
| 34 |
90464-14010-00 |
CLAMP Price: $3.65 |
| 35 |
90464-16003-00 |
CLAMP Price: $7.60 |
| 36 |
90464-30001-00 |
CLAMP Price: $8.49 |
| 37 |
B74-H2566-01-00 |
SWITCH, SIDE STAND Price: $31.99 |
| 38 |
90111-05810-00 |
BOLT, HEX. SOCKET BUTTON Price: $1.05 |
| 39 |
B74-H2501-14-00 |
MAIN SWITCH STEERING LOCK Price: $137.99 |
| 40 |
BSS-H276E-00-00 |
KNOB COMP. Price: $13.49 |
| 41 |
90464-09806-00 |
CLAMP Price: $3.50 |
| 42 |
90109-068D6-00 |
BOLT This part replaces 90109-068D5-00. Price: $3.65 |
| 43 |
BSS-H6260-60-00 |
REMOTE CONTROL UNIT ASSY Price: $399.99 |
| 44 |
B5X-H6261-16-00 |
XMTR. COMP. Price: $228.99 |
| 45 |
B65-H5546-00-00 |
BAND Price: $2.10 |
| 46 |
90464-30001-00 |
CLAMP Price: $8.49 |
| 47 |
1ST-81950-00-00 |
RELAY ASSY (1ST-00) Price: $19.99 |
| 48 |
5JJ-81952-00-00 |
HOLDER, RELAY Price: $10.99 |
| 49 |
B9Y-H1950-00-00 |
RELAY ASSY Price: $20.99 |
| 50 |
1PA-H2576-01-00 |
SENSOR, LEAN ANGLE Price: $29.99 |
| 51 |
BLS-H21E0-00-00 |
USB ASSY Price: $106.99 |
| 52 |
BSS-H3383-00-00 |
BUZZER Price: $41.99 |
