Parts Catalog

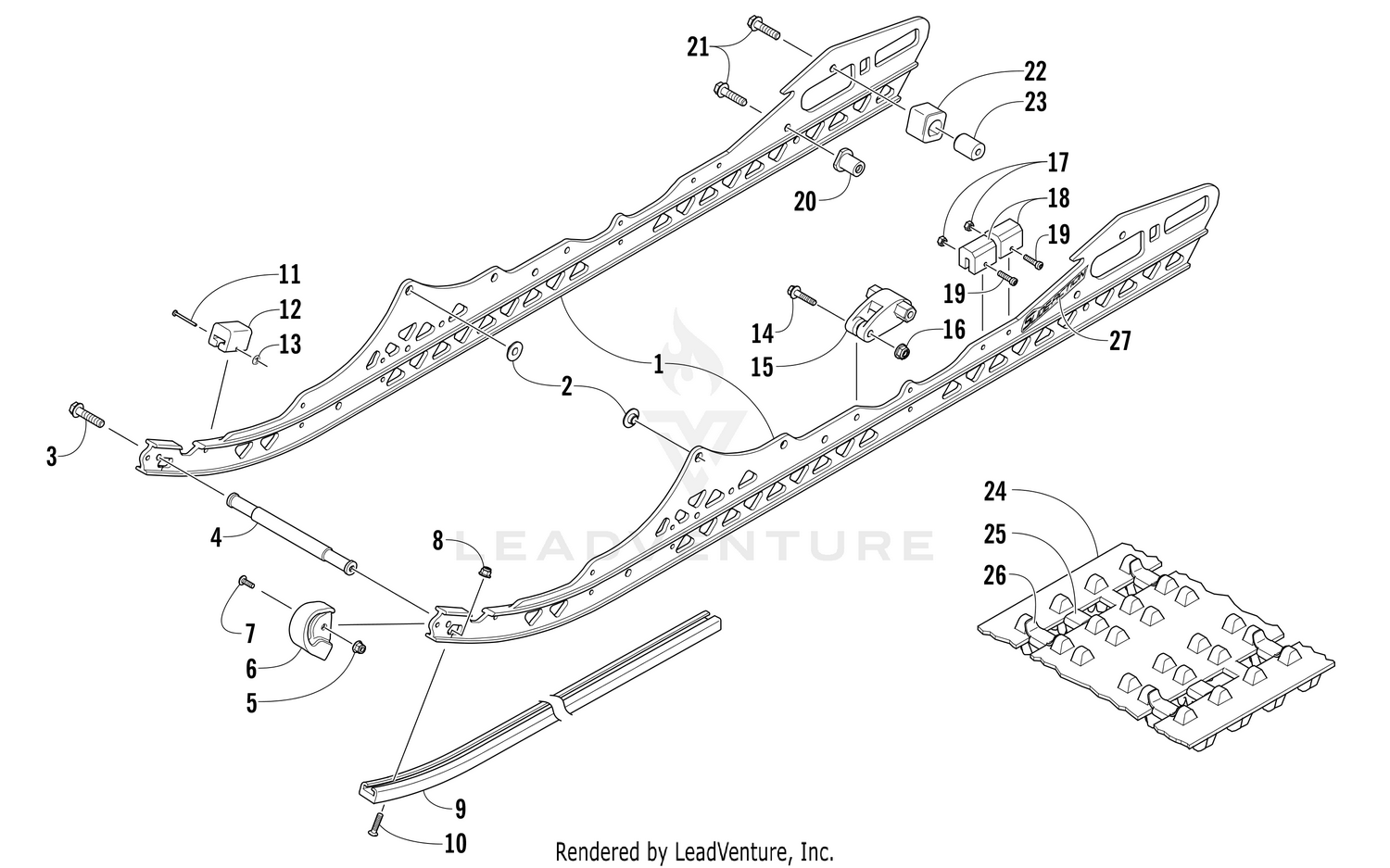

SLIDE RAIL AND TRACK ASSEMBLY [103003]

Parts (25)

Ref	Part Number	Description
1	3604-685	Rail, Formed Price: $269.95
2	3604-266	Insert, Rail Price: $3.51
3	8408-826	Screw, Cap Price: $0.46
4	3604-679	Axle Price: $77.95
5	8427-602	Nut, Hex Price: $0.23
6	3604-003	End Cap, Slide Rail Price: $20.56
7	8476-625	Screw, Machine Price: $1.92
8	8047-366	Nut, Lock Price: $0.46
9	3604-801	Wearstrip - Black Price: $28.95
10	0123-859	Screw, Machine Price: $1.18
11	0123-767	Rivet, Solid Price: $1.07
12	0104-631	Pad, Shock Price: $7.08
13	0123-766	Nut, Push Price: $1.32
14	8408-850	Screw, Cap Price: $1.20
15	3604-513	Block, Spring Tension Price: $19.35
16	8427-802	Nut, Lock Price: $0.58
17	8427-502	Nut, Lock Price: $1.07
18	1604-429	Pad, Shock Price: $7.23
19	8470-540	Screw, Machine Price: $1.45
20	3604-979	Axle Price: $3.75
21	8413-031	Screw, Cap Price: $2.91
22	2604-545	Block, Coupler Price: $15.71
23	3604-291	Bushing, Coupler Price: $13.28
25	2602-384	Clip, Wear Price: $3.75
26	2602-385	Clip, Guide Price: $4.60
