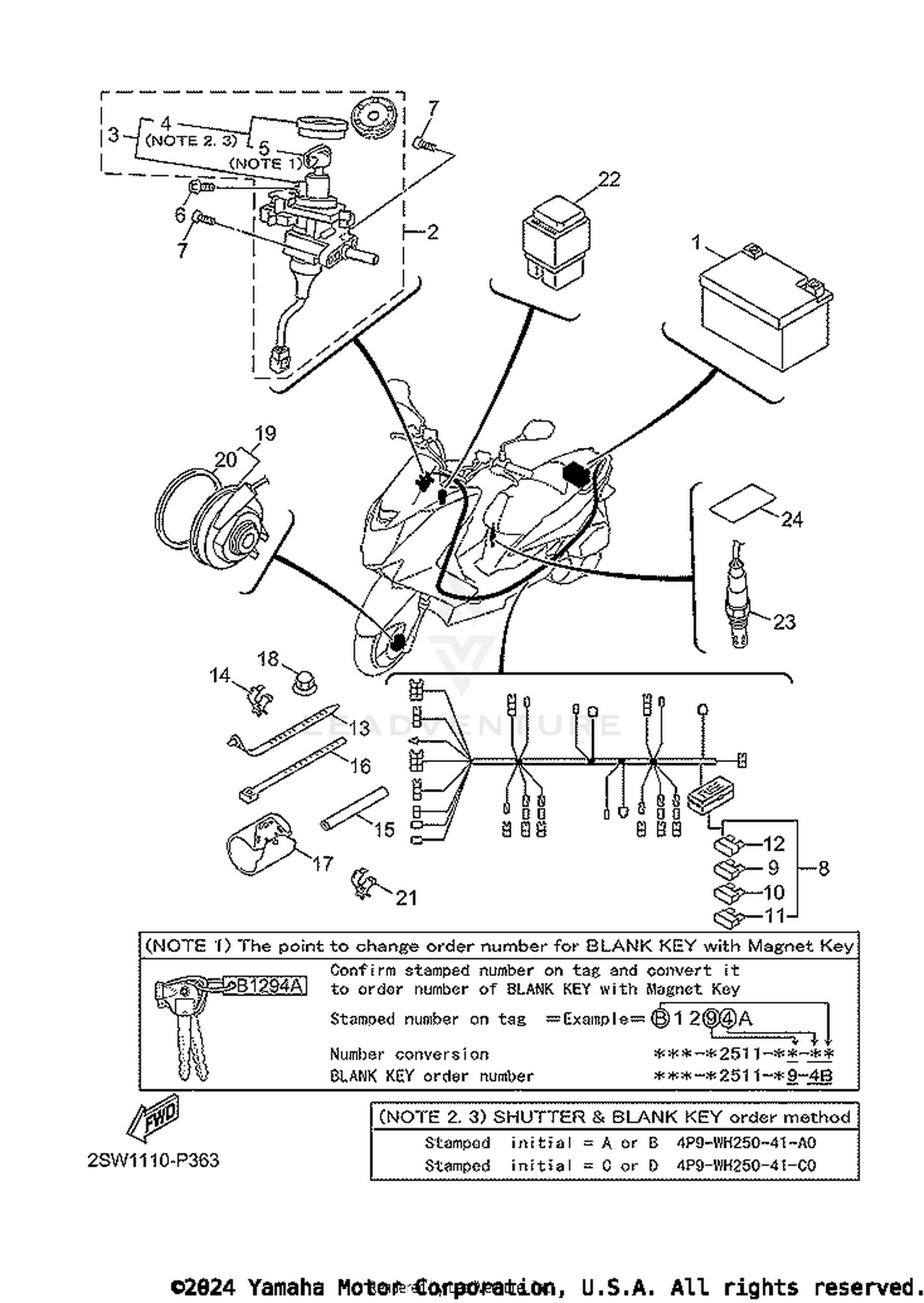

ELECTRICAL 2
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 1 | GT7-B4000-00-00 | GT7B4 GS BATTERY - Price: $94.99 |
| 2 | 2LD-WH203-02-00 | KEY SET This part replaces 2LD-WH203-00-00. Price: $325.99 |
| 3 | 2LD-H2501-01-00 | MAIN SWITCH STEERI This part replaces 2LD-H2501-00-00. Price: $104.99 |
| 4 | 4P9-WH25U-42-A0 | SHUTTER & BLANK KEY This part replaces 4P9-WH250-41-A0. Price: $47.99 |
| 4 | 4P9-WH25U-42-C0 | SHUTTER & BLANK KEY This part replaces 4P9-WH250-41-C0. Price: $41.99 |
| 5 | 4P9-H2511-**-** | KEY, MAIN SWITCH Price: Call Us |
| 6 | 90119-05004-00 | BOLT, WITH WASHER Price: $8.49 |
| 7 | 90155-06803-00 | SCREW, FLAT FILLISTER Price: $2.00 |
| 8 | 2SW-H2590-01-00 | WIRE HARNESS ASSY Price: $255.99 |
| 9 | 5ML-H2151-10-00 | FUSE (15A) Price: $1.00 |
| 10 | 5MH-H2151-00-00 | FUSE (20A) Price: $0.45 |
| 11 | 5ML-H2151-20-00 | FUSE (7.5A) Price: $1.00 |
| 12 | 1P5-H2151-00-00 | FUSE(10A) Price: $1.15 |
| 13 | 90464-30802-00 | CLAMP Price: $1.15 |
| 14 | 90464-30801-00 | CLAMP Price: $2.05 |
| 15 | 1CF-F117G-00-00 | PROTECTOR Price: $0.60 |
| 16 | 90464-60800-00 | CLAMP Price: $0.70 |
| 17 | 52S-H252U-00-00 | COVER Price: $4.50 |
| 18 | 90176-06055-00 | NUT, CROWN Price: $6.49 |
| 19 | 2LD-H3755-11-00 | SENSOR, SPEED Price: $93.99 |
| 20 | 93102-44800-00 | OIL SEAL Price: $6.49 |
| 21 | 90464-23003-00 | CLAMP Price: $0.55 |
| 22 | 3GM-83350-03-00 | FLASHER RELAY ASSY This part replaces 3GM-83350-01-00. Price: $88.99 |
| 23 | 2SW-H592A-00-00 | SENSOR, OXYGEN Price: $144.99 |
