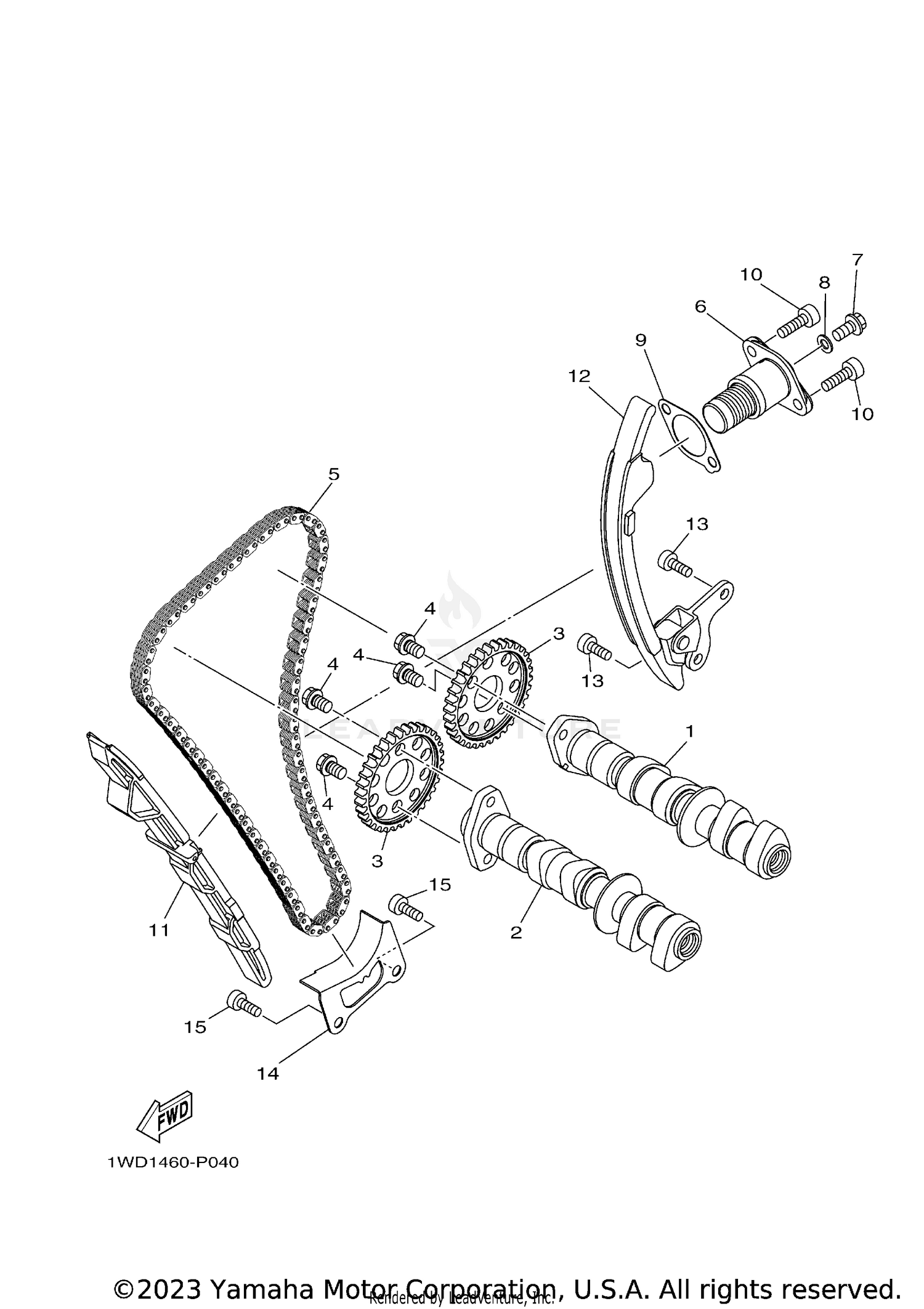

CAMSHAFT & CHAIN
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 2MS-E2170-01-00 | CAMSHAFT ASSY 1 Price: $162.99 |
| 2 | 2MS-E2180-01-00 | CAMSHAFT ASSY 2 Price: $161.99 |
| 3 | 1WD-E2176-00-00 | SPROCKET, CAM CHAIN Price: $62.99 |
| 4 | 90105-07800-00 | BOLT, FLANGE Price: $0.65 |
| 5 | 94568-K0118-00 | CHAIN (98XRH2015-1 Price: $64.99 |
| 6 | 2MS-12210-00-00 | TENSIONER ASSY, CAM CHAIN Price: $160.99 |
| 7 | 95022-06008-00 | BOLT, FLANGE Price: $9.49 |
| 8 | 90430-06014-00 | GASKET Price: $8.60 |
| 9 | 1WD-E2213-00-00 | GASKET, TENSIONER CASE Price: $2.35 |
| 10 | 91332-06020-00 | BOLT Price: $0.30 |
| 11 | 1WD-E2251-00-00 | DAMPER, CHAIN 1 Price: $5.49 |
| 12 | 2MS-E2252-01-00 | DAMPER, CHAIN 2 Price: $224.99 |
| 13 | 91317-06016-00 | BOLT (4MY) This part replaces 90110-06161-00. Price: $1.25 |
| 14 | 1WD-E2256-00-00 | COVER, CHAIN Price: $4.75 |
