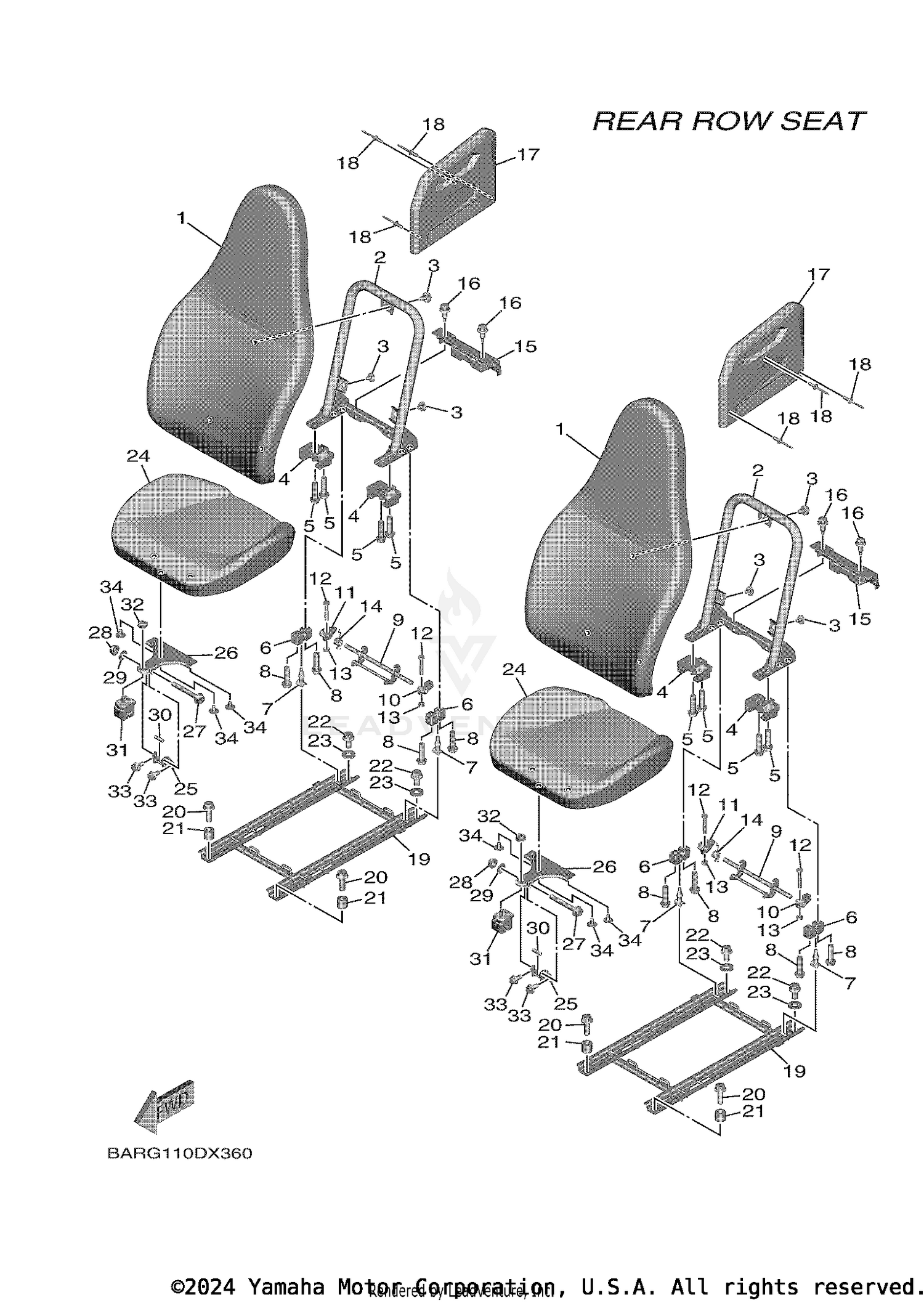

| Ref | Part Number | Description |
|---|
| 1 |
BAR-F4790-30-00 |
SEAT BACK ASSY Price: $225.99 |
| 2 |
BG4-F473Y-01-00 |
DAMPER Price: $50.99 |
| 3 |
90111-06180-00 |
BOLT,HEX. SOCKET BUT Price: $2.20 |
| 4 |
BG4-F386R-01-00 |
SLIDER Price: $8.49 |
| 5 |
95022-08025-00 |
BOLT, FLANGE Price: $9.49 |
| 6 |
BG4-F1778-10-00 |
DAMPER, LOCATING 1 Price: $74.99 |
| 7 |
BAR-F4723-01-00 |
DAMPER, SEAT Price: $1.40 |
| 8 |
95022-08030-00 |
BOLT, FLANGE Price: $4.20 |
| 9 |
BG4-K7180-01-00 |
LATCH ASSY Price: $25.99 |
| 10 |
BG4-F2231-00-00 |
CAM, 1 Price: $133.99 |
| 11 |
BG4-F2232-00-00 |
CAM, 2 Price: $126.99 |
| 12 |
97022-05030-00 |
BOLT, HEXAGON Price: $0.90 |
| 13 |
95380-05600-00 |
NUT This part replaces 95302-05600-00. Price: $9.49 |
| 14 |
BG4-F4424-00-00 |
SEAT, SPRING Price: $7.49 |
| 15 |
BG4-F6143-01-00 |
COVER, HANDLE UPPER 1 Price: $146.99 |
| 16 |
90269-07805-00 |
RIVET Price: $1.75 |
| 17 |
BG4-F475X-00-00 |
COVER,2 Price: $39.99 |
| 18 |
90267-49152-00 |
RIVET, BLIND (4.9X16.1) Price: $4.05 |
| 19 |
BG4-F110B-00-00 |
SEAT RAIL ASSY 1 Price: $47.99 |
| 20 |
95817-08025-00 |
BOLT, FLANGE This part replaces 95812-08025-00. Price: $9.49 |
| 21 |
90387-08258-00 |
COLLAR Price: $11.49 |
| 22 |
95817-08016-00 |
BOLT,FLANGE (JN5) This part replaces 95812-08016-00. Price: $5.49 |
| 23 |
90201-08048-00 |
WASHER, PLATE Price: $6.49 |
| 24 |
BAR-F4700-30-00 |
SEAT ASSY Price: $391.99 |
| 25 |
BG4-F114B-00-00 |
BRACKET, HINGE Price: $84.99 |
| 26 |
BG4-F4726-00-00 |
HINGE, SEAT Price: $8.99 |
| 27 |
95817-06050-00 |
BOLT, FLANGE Price: $4.60 |
| 28 |
95617-06100-00 |
NUT, S/L Price: $2.90 |
| 29 |
90201-06557-00 |
WASHER, PLATE Price: $3.55 |
| 30 |
90387-068S4-00 |
COLLAR Price: $5.49 |
| 31 |
BG4-F5915-01-00 |
RUBBER, DAMPING Price: $8.49 |
| 32 |
95607-05200-00 |
NUT, U FLANGE This part replaces 95602-05200-00. Price: $10.49 |
| 33 |
95D32-06012-00 |
BOLT, FLANGE DEEP RECESS Price: $9.49 |
