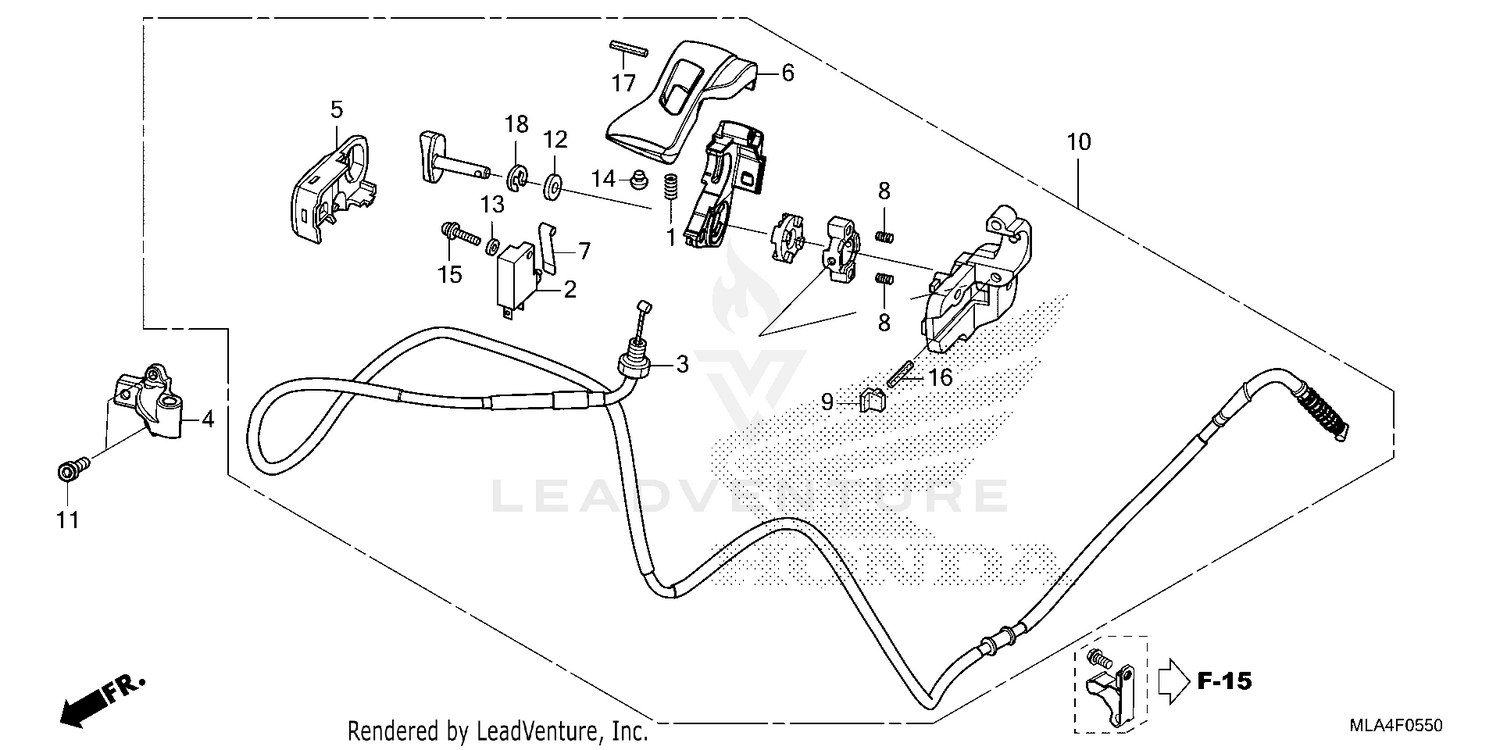

| Ref | Part Number | Description |
|---|
| 1 |
24271-743-000 |
SPRING, BALL SETTING Price: $3.00 |
| 2 |
35340-HR0-305 |
SWITCH ASSY., FR. STOP (COO) Price: $21.85 |
| 3 |
43450-MLA-A51 |
CABLE, PARKING BRAKE Price: $60.73 |
| 4 |
47111-MLA-A50 |
HOLDER, PARKING BRAKE Price: $58.71 |
| 5 |
47117-MGE-D00 |
COVER, HOLDER Price: $3.84 |
| 6 |
47152-MGE-D00 |
LEVER, PARKING TOP Price: $7.84 |
| 7 |
47154-MGE-D00 |
SPRING, SWITCH Price: $9.71 |
| 8 |
47155-MGE-D00 |
SPRING, PLUNGER Price: $4.55 |
| 9 |
47156-MGE-D00 |
CAP, HOLDER (LOWER) Price: $2.64 |
| 10 |
47205-MLA-A50 |
LEVER ASSY., PARKING Price: $415.89 |
| 11 |
90116-MGE-D00 |
BOLT, SOCKET (5X20) Price: $3.82 |
| 12 |
90401-430-000 |
WASHER (10.2MM) Price: $1.96 |
| 13 |
90515-GN5-910 |
WASHER, PLAIN (4X8) Price: $1.42 |
| 14 |
90801-SB0-000 |
PLUG, CHANGE REINFORCEMENT Price: $3.97 |
| 15 |
93892-04014-07 |
SCREW-WASHER (4X14) Price: $1.03 |
| 16 |
94305-30223 |
PIN, SPRING (3X22) Price: $1.36 |
| 17 |
94305-30283 |
PIN, SPRING (3X28) (NOT AVAILABLE) Price: $1.58 |
