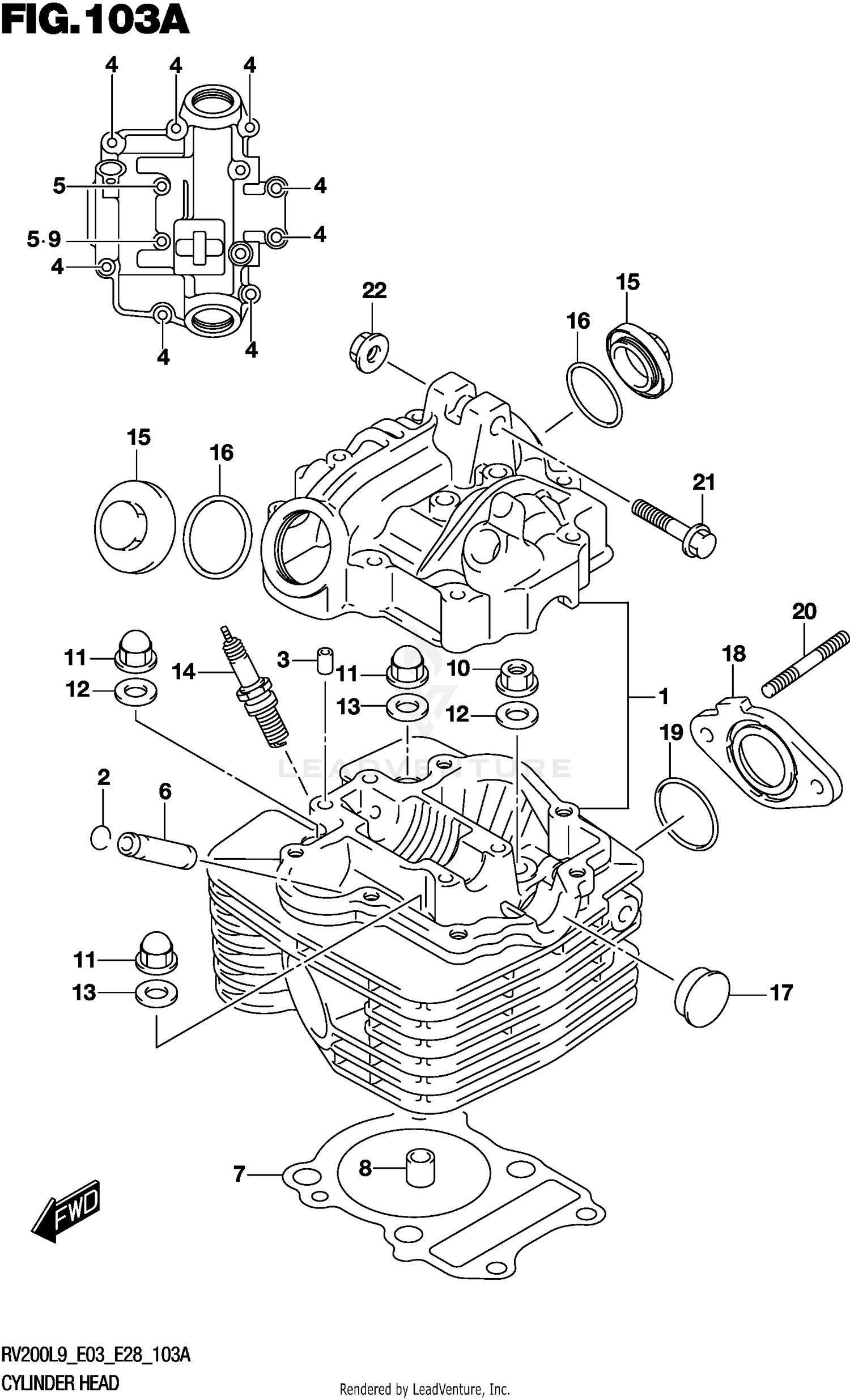

CYLINDER HEAD
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 11100-42A70 | HEAD ASSY, CYLINDER Price: $654.69 |
| 4 | 01550-0635A | BOLT Price: $2.79 |
| 6 | 11115-05270 | GUIDE, VALVE (OS:0.3) Price: $40.78 |
| 8 | 04211-11169 | PIN Price: $2.15 |
| 9 | 09168-06023 | GASKET (5.8X13X1.2) Price: $2.45 |
| 10 | 08316-1008A | NUT Price: $2.99 |
| 11 | 09159-08049 | NUT Price: $5.73 |
| 12 | 09160-08039 | WASHER (8.5X19X2.3) Price: $2.37 |
| 15 | 11175-18920 | CAP INSPECTION This part replaces 11175-18900. Price: $15.07 |
| 17 | 09241-22002 | PLUG (OD:22.5) Price: $6.38 |
| 18 | 13128-13GA0 | INSULATOR, THROTTLE BODY Price: $18.62 |
| 19 | 09280-35001 | O RING (D:1.9,ID:34.6) Price: $2.18 |
| 20 | 01421-0620A | STUD BOLT Price: $2.30 |
| 21 | 09103-08519 | BOLT (8X55) Price: Call Us |
