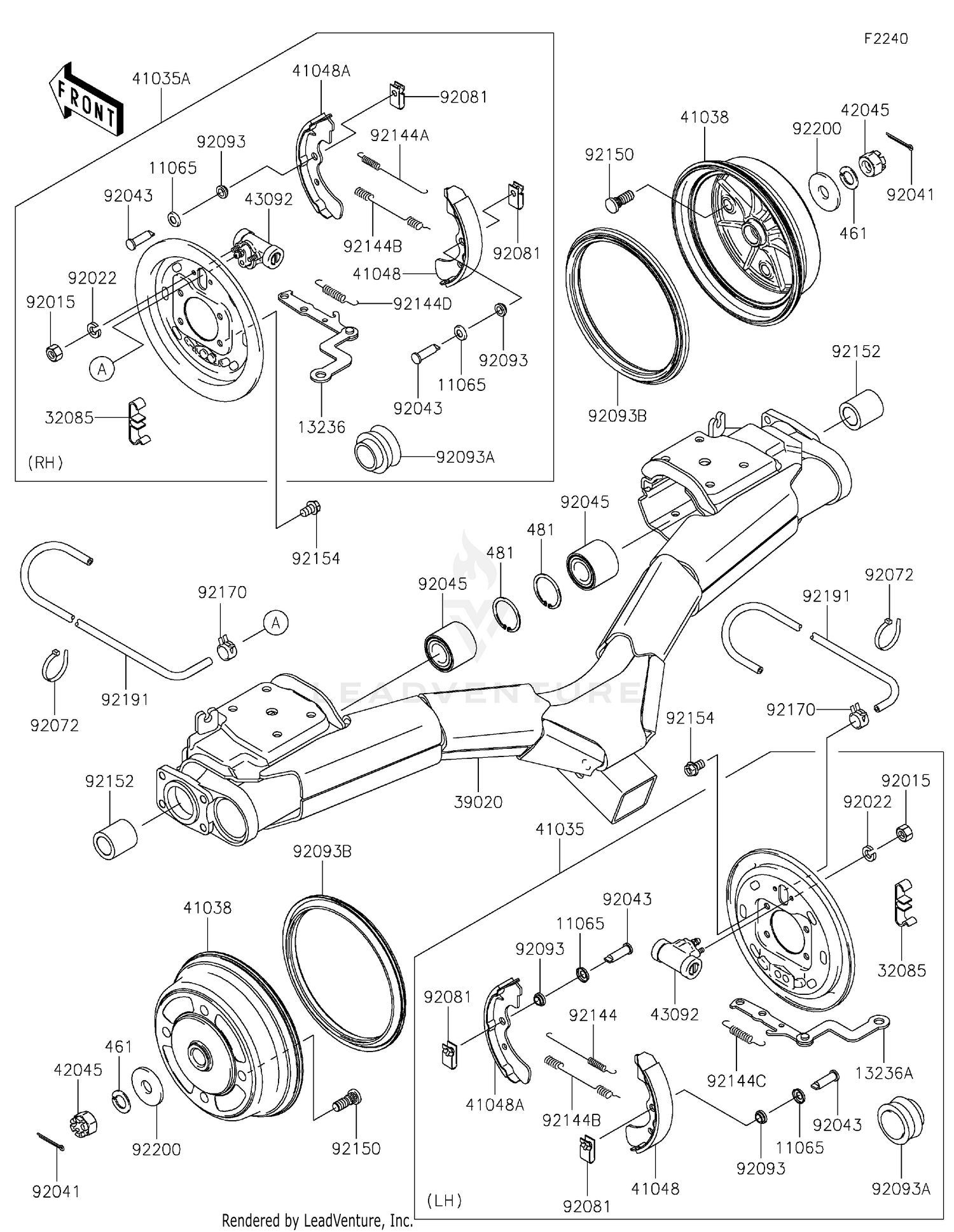

| Ref | Part Number | Description |
|---|
| 461 |
461DA1800 |
WASHER-SPRING,18MM Price: $2.91 |
| 11065 |
11065-1175 |
CAP Price: $4.87 |
| 13236 |
13236-1355 |
LEVER-COMP,RR BRAKE PANEL,RH Price: $35.38 |
| 13236A |
13236-1356 |
LEVER-COMP,RR BRAKE PANEL,LH Price: $34.87 |
| 32085 |
32085-1298 |
STOPPER,REAR BRAKE LEVER Price: $11.07 |
| 39020 |
39020-0005 |
BRACKET-COMP-REAR SUSP Price: $763.30 |
| 41035 |
41035-7506 |
PANEL-ASSY-BRAKE,RR,LH Price: $502.19 |
| 41035A |
41035-7508 |
PANEL-ASSY-BRAKE,RR,RH Price: $502.19 |
| 41038 |
41038-7502 |
DRUM,REAR BRAKE This part replaces 41038-0035. Price: $262.76 |
| 41048 |
41048-7502 |
SHOE-BRAKE Price: $22.70 |
| 41048A |
41048-7503 |
SHOE-BRAKE Price: $22.70 |
| 42045 |
42045-018 |
NUT,CASTLE,18MM Price: $9.23 |
| 43092 |
43092-1053 |
CYLINDER,REAR WHEEL Price: $90.98 |
| 92015 |
92015-1729 |
NUT,6MM Price: $2.78 |
| 92022 |
92022-1951 |
WASHER,SPRING,6MM Price: $2.78 |
| 92041 |
92041-1053 |
COTTER,4.0X35 Price: $3.92 |
| 92043 |
92043-1636 |
PIN Price: $4.20 |
| 92045 |
92045-1411 |
BEARING-BALL,25BWD02C This part replaces 92045-0107. Price: $91.34 |
| 92072 |
92072-030 |
BAND,L=123 Price: $5.00 |
| 92081 |
92081-1904 |
SPRING,SHOE CLAMP Price: $8.03 |
| 92093 |
92093-1532 |
SEAL Price: $8.60 |
| 92093A |
92093-1533 |
SEAL Price: $13.63 |
| 92093B |
92093-1543 |
SEAL,BS184.8X13.5ZS Price: $112.98 |
| 92144 |
92144-1299 |
SPRING,BRAKE Price: $8.30 |
| 92144A |
92144-1300 |
SPRING,BRAKE Price: $8.30 |
| 92144B |
92144-1301 |
SPRING,BRAKE Price: $8.30 |
| 92144C |
92144-1302 |
SPRING,ROD,LH Price: $8.30 |
| 92144D |
92144-1303 |
SPRING,ROD,RH Price: $7.60 |
| 92150 |
92150-1366 |
BOLT Price: $8.05 |
| 92152 |
92152-1276 |
COLLAR,25.1X38X40.8 Price: $28.89 |
| 92154 |
92154-7268 |
BOLT,FLANGED,10X16 Price: $3.58 |
| 92170 |
92170-2042 |
CLAMP Price: $1.30 |
| 92191 |
92191-1525 |
TUBE,4.7X9.5X1100 Price: $7.87 |
| 92200 |
92200-1474 |
WASHER,18.5X52X4.5 Price: $8.10 |
