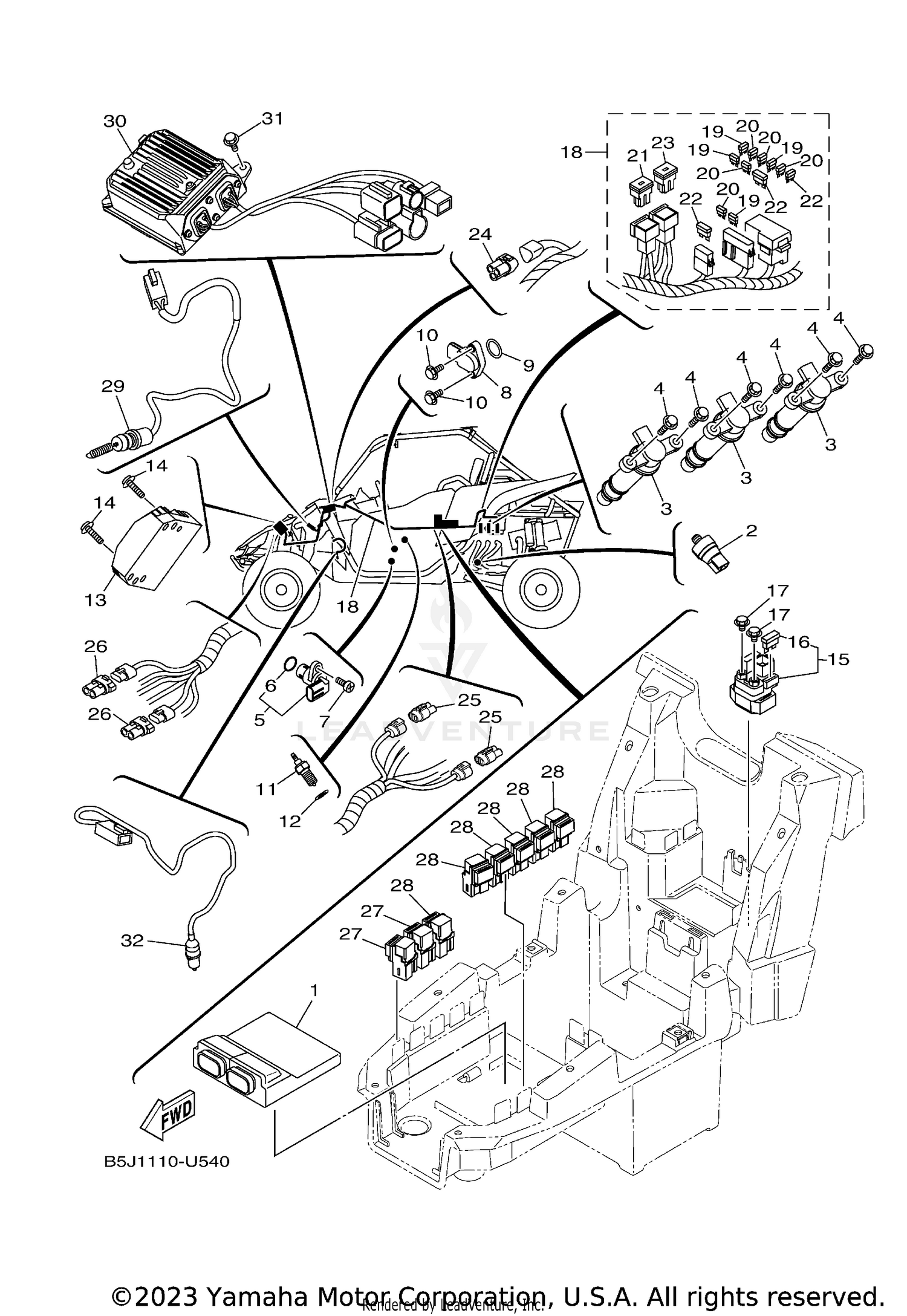

ELECTRICAL 1
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 1 | B5J-8591A-11-00 | ENGINE CONTROL UNIT ASSY Price: $1,275.99 |
| 2 | 8FP-82504-01-00 | OIL PRESSURE SWITCH ASSY Price: $71.99 |
| 3 | 2HC-82310-00-00 | IGNITION COIL ASSY Price: $127.99 |
| 4 | 95817-06025-00 | BOLT, FLANGE This part replaces 95812-06025-00. Price: $1.75 |
| 5 | 1TP-83755-00-00 | SENSOR, SPEED Price: $84.99 |
| 6 | 4D9-81168-00-00 | O-RING Price: $7.49 |
| 7 | 91317-06016-00 | BOLT (4MY) This part replaces 90110-06193-00. Price: $1.25 |
| 8 | 2HC-85899-10-00 | SENSOR, GEAR POSITION Price: $95.99 |
| 9 | 93210-17008-00 | O-RING Price: $2.65 |
| 10 | 90110-05038-00 | BOLT, HEXAGON SOCKET HEAD This part replaces 90110-05067-00. Price: $8.49 |
| 11 | 3GB-82540-01-00 | NEUTRAL SWITCH ASSY Price: $63.99 |
| 12 | 90430-10148-00 | GASKET Price: $5.99 |
| 13 | B5H-81960-00-00 | RECTIFIER & REGULATO Price: $286.99 |
| 14 | 90105-06833-00 | BOLT, FLANGE Price: $2.30 |
| 15 | 4D3-81940-00-00 | STARTER RELAY ASSY (RC19-077A) Price: $115.99 |
| 16 | 36Y-82151-00-00 | FUSE (15A-BLUE) Price: $6.49 |
| 17 | 95022-06008-00 | BOLT, FLANGE Price: $9.49 |
| 18 | B5J-82590-11-00 | WIRE HARNESS ASSY Price: $1,300.99 |
| 19 | 67F-82151-50-00 | FUSE (15A) This part replaces 5JJ-82151-10-00. Price: $4.05 |
| 20 | 67F-82151-40-00 | FUSE (10A) This part replaces 5JJ-82151-30-00. Price: $7.10 |
| 21 | JR9-82151-00-00 | SLOW BLOW FUSE This part replaces 5PS-82151-00-00. Price: $13.49 |
| 22 | 5JJ-82151-60-00 | FUSE (30A-BL) Price: $8.49 |
| 23 | 5JW-82151-10-00 | FUSE (50A) Price: $17.99 |
| 24 | 8CR-82378-00-00 | CONNECTOR Price: $13.49 |
| 25 | B57-82378-00-00 | CONNECTOR Price: $8.49 |
| 26 | B5H-82378-00-00 | CONNECTOR Price: $8.49 |
| 27 | 5DM-81950-01-00 | RELAY ASSY (G8HN-1C4T-DJ-Y52) Price: $31.99 |
| 28 | 8DM-81950-11-00 | RELAY ASSY (8DM-11) Price: $33.99 |
| 29 | B90-82530-01-00 | STOP SWITCH ASSY This part replaces B90-82530-00-00. Price: $57.99 |
| 30 | B5H-859A0-01-00 | POWER STRG. CONT. UNIT ASSY This part replaces B5H-859A0-00-00. Price: $875.99 |
| 31 | 95817-06016-00 | BOLT, FLANGE This part replaces 95812-06016-00. Price: $1.95 |
