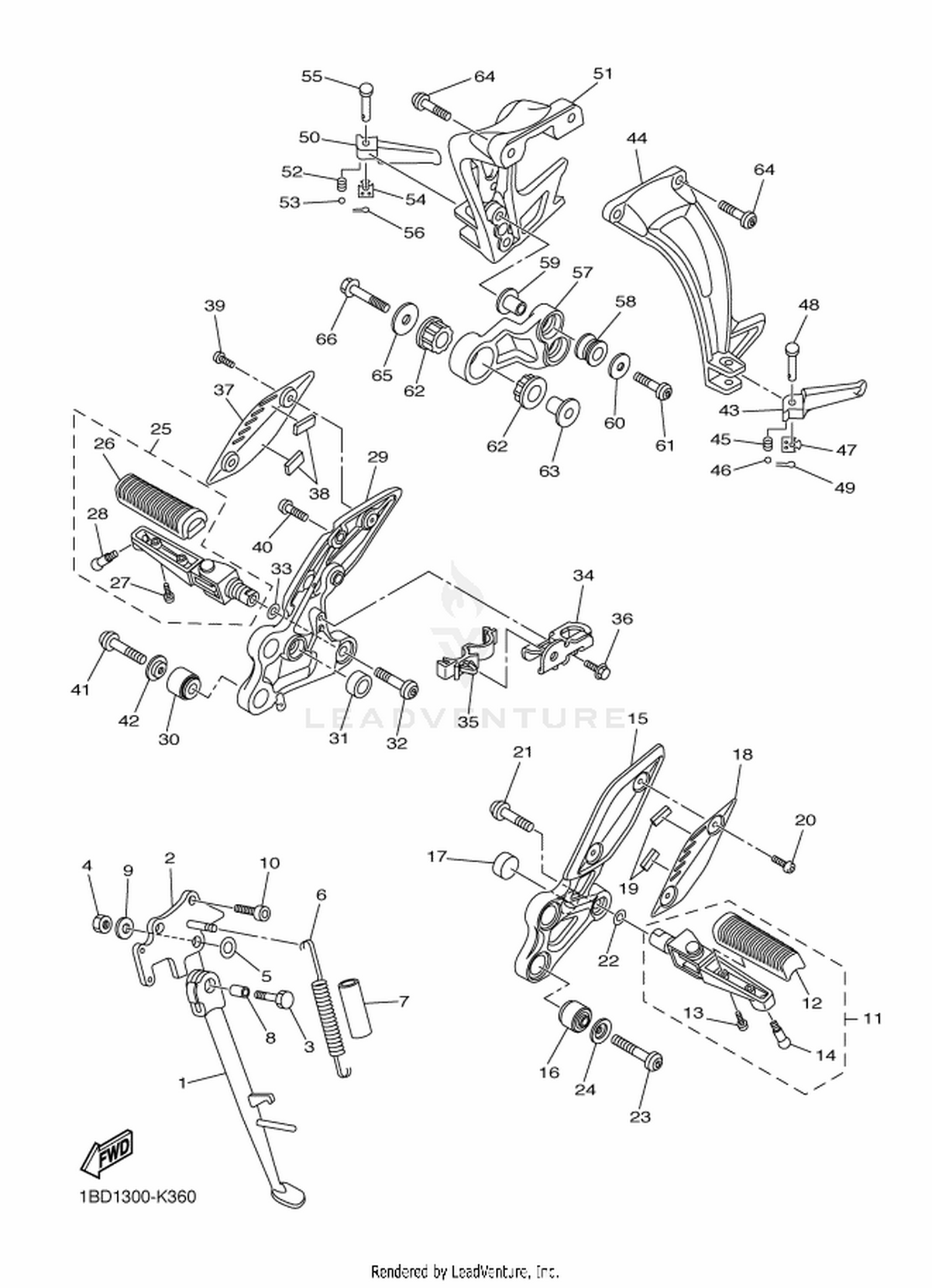

| Ref | Part Number | Description |
|---|
| 1 |
39P-27311-00 |
STAND, SIDE Price: Call Us |
| 2 |
2D1-27321-00 |
BRACKET, SIDE STAND Price: Call Us |
| 3 |
90101-10025 |
BOLT Price: Call Us |
| 4 |
90185-10023 |
NUT, SELF-LOCKING Price: Call Us |
| 5 |
90201-16027 |
WASHER, PLATE Price: Call Us |
| 6 |
90506-18020 |
SPRING, TENSION Price: Call Us |
| 7 |
90445-19002 |
HOSE (L60) Price: Call Us |
| 8 |
90387-10050 |
COLLAR Price: Call Us |
| 9 |
90201-10035 |
WASHER, PLATE Price: Call Us |
| 10 |
90110-10028 |
BOLT, HEXAGON SOCKET HEAD Price: Call Us |
| 11 |
39P-27410-00 |
FRONT FOOTREST ASSY (LEFT) Price: Call Us |
| 14 |
90109-08203 |
BOLT Price: Call Us |
| 15 |
39P-27442-00 |
BRACKET 2 Price: Call Us |
| 16 |
1NL-27424-00 |
DAMPER, FOOTREST 2 Price: Call Us |
| 17 |
5VX-27114-00 |
STOPPER, MAIN STAND Price: Call Us |
| 18 |
39P-27486-00 |
COVER 1 Price: Call Us |
| 19 |
1HX-27415-00 |
PLATE, DAMPER Price: Call Us |
| 20 |
90111-05015 |
BOLT,HEX. SOCKET BUTTON Price: Call Us |
| 21 |
90111-10039 |
BOLT,HEX. SOCKET BUTTON Price: Call Us |
| 22 |
90206-17084 |
WASHER, WAVE Price: Call Us |
| 23 |
90110-08071 |
BOLT, HEXAGON SOCKET HEAD Price: Call Us |
| 24 |
90209-08295 |
WASHER Price: Call Us |
| 25 |
39P-27420-00 |
FRONT FOOTREST ASSY (RIGHT) Price: Call Us |
| 28 |
90109-08203 |
BOLT Price: Call Us |
| 29 |
39P-27443-00 |
BRACKET 3 Price: Call Us |
| 30 |
1NL-27424-00 |
DAMPER, FOOTREST 2 Price: Call Us |
| 31 |
5VX-27114-00 |
STOPPER, MAIN STAND Price: Call Us |
| 32 |
90111-10039 |
BOLT,HEX. SOCKET BUTTON Price: Call Us |
| 33 |
90206-17084 |
WASHER, WAVE Price: Call Us |
| 34 |
39P-2144G-00 |
STAY, STOP SWITCH Price: Call Us |
| 35 |
90464-16006 |
CLAMP Price: Call Us |
| 36 |
95802-06008 |
BOLT, FLANGE Price: Call Us |
| 37 |
39P-27487-00 |
COVER 2 Price: Call Us |
| 38 |
1HX-27415-00 |
PLATE, DAMPER Price: Call Us |
| 39 |
90111-05015 |
BOLT,HEX. SOCKET BUTTON Price: Call Us |
| 40 |
92017-08020 |
BOLT, BUTTON HEAD Price: Call Us |
| 41 |
90110-08071 |
BOLT, HEXAGON SOCKET HEAD Price: Call Us |
| 42 |
90209-08295 |
WASHER Price: Call Us |
| 44 |
2D1-2741L-10 |
BRACKET 4 Price: Call Us |
| 45 |
90501-12743 |
SPRING, COMPRESSION Price: Call Us |
| 46 |
93501-04011 |
BALL Price: Call Us |
| 47 |
5VX-27437-00 |
WASHER, SPECIAL Price: Call Us |
| 49 |
91401-25015 |
PIN, COTTER Price: Call Us |
| 51 |
39P-2742L-00 |
BRACKET 5 Price: Call Us |
| 52 |
90501-12743 |
SPRING, COMPRESSION Price: Call Us |
| 53 |
93501-04011 |
BALL Price: Call Us |
| 54 |
5VX-27437-00 |
WASHER, SPECIAL Price: Call Us |
| 56 |
91401-25015 |
PIN, COTTER Price: Call Us |
| 57 |
39P-21436-00 |
BRKT., MUFF. 2 Price: Call Us |
| 59 |
90387-08021 |
COLLAR Price: Call Us |
| 60 |
90201-08054 |
WASHER, PLATE Price: Call Us |
| 61 |
92012-08035 |
BOLT, BUTTON HEAD Price: Call Us |
| 62 |
39P-27424-00 |
DAMPER, FOOTREST 2 Price: Call Us |
| 63 |
90387-10097 |
COLLAR Price: Call Us |
| 64 |
90109-085G6 |
BOLT Price: Call Us |
| 65 |
90201-10073 |
WASHER, PLATE Price: Call Us |
