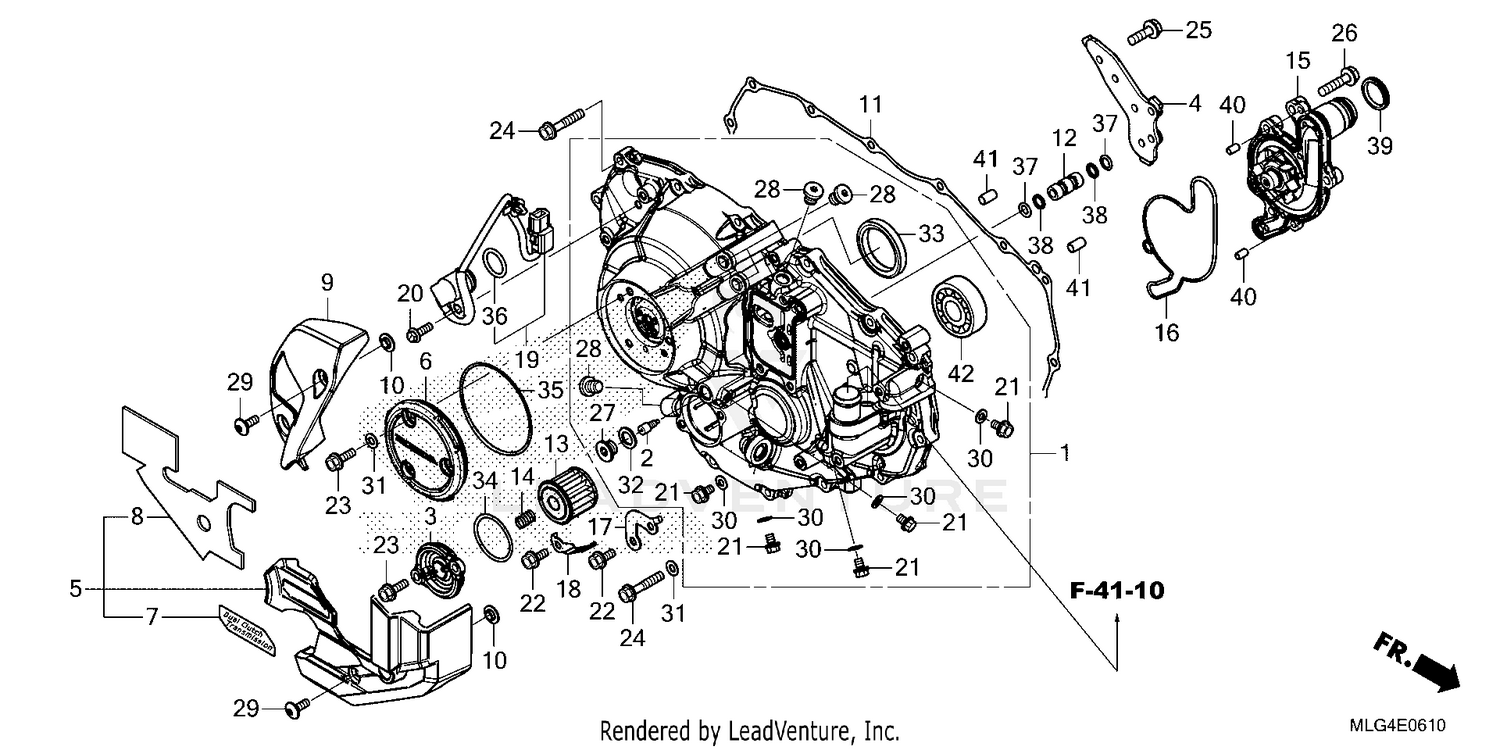

| Ref | Part Number | Description |
|---|
| 1 |
11330-MKS-E50 |
COVER, R. CRANKCASE Price: $543.04 |
| 2 |
11335-MJP-G80 |
ORIFICE Price: $20.51 |
| 3 |
11337-MJP-G80 |
COVER, OIL FILTER Price: $32.95 |
| 4 |
11361-MJP-G80 |
COVER (INNER) Price: $52.00 |
| 5 |
11370-MKS-E50 |
COVER, OIL PRESSURE SENSOR Price: $59.27 |
| 6 |
11375-MJP-G80 |
CAP, R. COVER Price: $95.64 |
| 7 |
11378-MKS-E50 |
PLATE, EMBLEM Price: $19.31 |
| 8 |
11379-MKS-E50 |
MAT, R. FR. COVER Price: $17.80 |
| 9 |
11381-MJP-G80 |
COVER, R. RR. ENGINE Price: $12.18 |
| 10 |
11385-MJF-A00 |
COLLAR Price: $3.53 |
| 11 |
11394-MJP-G51 |
GASKET, R. CRANKCASE COVER Price: $58.58 |
| 12 |
15104-MGS-D20 |
PIPE, OIL PASSAGE Price: $11.16 |
| 13 |
15412-MGS-D21 |
ELEMENT, OIL FILTER Price: $10.26 |
| 14 |
15414-MEB-670 |
SPRING, OIL FILTER Price: $3.00 |
| 15 |
19200-MJP-G50 |
WATER PUMP Price: $224.56 |
| 16 |
19226-MJP-G50 |
GASKET, WATER PUMP BODY Price: $12.93 |
| 17 |
32157-MJP-G80 |
STAY, HARNESS CLIP Price: $5.42 |
| 18 |
32158-MJP-G80 |
STAY, HARNESS CLIP Price: $4.45 |
| 19 |
38810-MJP-G81 |
SENSOR ASSY., ANGLE (40DEGREE) Price: $214.18 |
| 20 |
90011-MGE-D00 |
BOLT, KNOCK (6MM) Price: $3.29 |
| 21 |
90026-GHB-600 |
BOLT, FLANGE (6X8) Price: $2.55 |
| 22 |
90026-GHB-630 |
BOLT, FLANGE (6X14) Price: $2.55 |
| 23 |
90026-GHB-650 |
BOLT, FLANGE (6X18) Price: $2.55 |
| 24 |
90026-GHB-690 |
BOLT, FLANGE (6X28) Price: $2.49 |
| 25 |
90030-GHB-660 |
BOLT, FLANGE (6X20) Price: $2.49 |
| 26 |
90030-GHB-680 |
BOLT, FLANGE (6X25) Price: $2.53 |
| 27 |
90031-MJP-G80 |
BOLT, SEALING (12X8) Price: $3.78 |
| 28 |
90042-MJP-G80 |
BOLT, SPECIAL (10MM) Price: $4.85 |
| 29 |
90085-MGC-920 |
BOLT, SPECIAL (6X17) Price: $2.95 |
| 30 |
90404-HW1-670 |
WASHER, SEALING (6MM) Price: $2.13 |
| 31 |
90488-425-000 |
WASHER, SEALING (6MM) Price: $2.60 |
| 32 |
90545-KF0-000 |
WASHER (12MM) Price: $4.09 |
| 33 |
91004-MJP-G81 |
BEARING, RADIAL BALL (40X52X7) Price: $34.65 |
| 34 |
91302-K0G-911 |
O-RING (39.8X2.2) This part replaces 91302-PA9-003. Price: $1.15 |
| 35 |
91307-MGE-D01 |
O-RING (81X2.2) Price: $4.47 |
| 36 |
91310-MGE-D01 |
O-RING (16.5X2.5) Price: $5.49 |
| 37 |
91311-RFH-003 |
O-RING (7.7X1.9) Price: $2.98 |
| 38 |
91315-MGS-D20 |
RING, BACK-UP (8X11) Price: $3.82 |
| 39 |
91315-MJP-G51 |
SEAL, WATER PIPE Price: $2.75 |
| 40 |
94301-06100 |
PIN A, DOWEL (6X10) (YAMADA) Price: $2.35 |
| 41 |
94301-08140 |
PIN, DOWEL (8X14) (Honda Code 0069310) Price: $2.35 |
