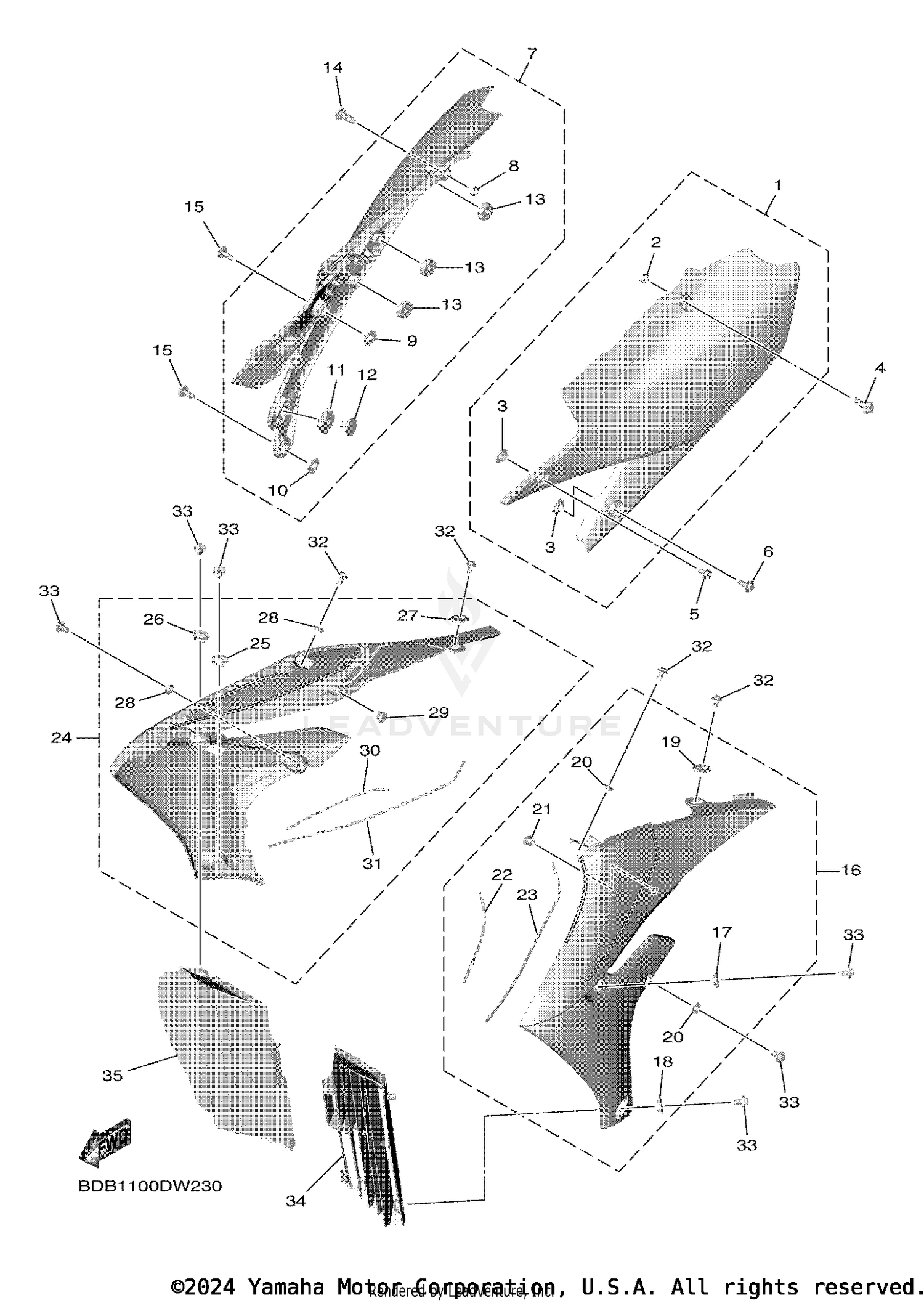

SIDE COVER
Parts (34)
| Ref | Part Number | Description |
|---|---|---|
| 1 | BR9-21710-10-00 | SIDE COVER ASSY 1 Price: $34.99 |
| 2 | 90387-08057-00 | COLLAR Price: $10.49 |
| 3 | 5TA-21749-00-00 | COLLAR Price: $12.99 |
| 4 | 90105-08230-00 | BOLT, FLANGE Price: $4.65 |
| 5 | 90119-06212-00 | BOLT, WITH WASHER Price: $9.49 |
| 6 | 90119-06179-00 | BOLT, WITH WASHER This part replaces 90119-06170-00. Price: $9.49 |
| 7 | B7R-21720-10-00 | SIDE COVER ASSY 2 Price: $111.99 |
| 8 | 90387-08057-00 | COLLAR Price: $10.49 |
| 9 | 5BE-21749-00-00 | COLLAR Price: $7.49 |
| 10 | 5TA-21749-00-00 | COLLAR Price: $12.99 |
| 11 | BR9-21719-00-00 | GROMMET Price: $34.99 |
| 12 | 1DX-21746-01-00 | DAMPER Price: $24.99 |
| 13 | 1SL-21719-00-00 | GROMMET Price: $17.99 |
| 14 | 90105-08230-00 | BOLT, FLANGE Price: $4.65 |
| 15 | 90119-06179-00 | BOLT, WITH WASHER This part replaces 90119-06170-00. Price: $9.49 |
| 16 | B7R-217R0-G0-00 | SIDE COVER INSERT ASSY. 3 Price: $246.99 |
| 17 | 17D-21749-00-00 | COLLAR Price: $17.99 |
| 18 | 5BE-21749-00-00 | COLLAR Price: $7.49 |
| 19 | 1SL-21748-00-00 | COLLAR Price: $12.99 |
| 20 | 90387-07045-00 | COLLAR Price: $8.49 |
| 21 | 90480-10068-00 | GROMMET Price: $9.49 |
| 22 | BR9-14467-00-00 | SEAL Price: $4.55 |
| 23 | BR9-1446R-00-00 | SEAL Price: $4.45 |
| 24 | B7R-217S0-G0-00 | SIDE COVER INSERT ASSY. 4 Price: $264.99 |
| 25 | 17D-21749-00-00 | COLLAR Price: $17.99 |
| 26 | 5BE-21749-00-00 | COLLAR Price: $7.49 |
| 27 | 1SL-21748-00-00 | COLLAR Price: $12.99 |
| 28 | 90387-07045-00 | COLLAR Price: $8.49 |
| 29 | 90480-10068-00 | GROMMET Price: $9.49 |
| 30 | BR9-14467-00-00 | SEAL Price: $4.55 |
| 31 | BR9-1446R-00-00 | SEAL Price: $4.45 |
| 32 | 90105-06064-00 | BOLT, FLANGE Price: $3.45 |
| 33 | 90119-06217-00 | BOLT, WITH WASHER Price: $9.49 |
| 34 | BR9-2172A-10-00 | PANEL 1 Price: $25.99 |
