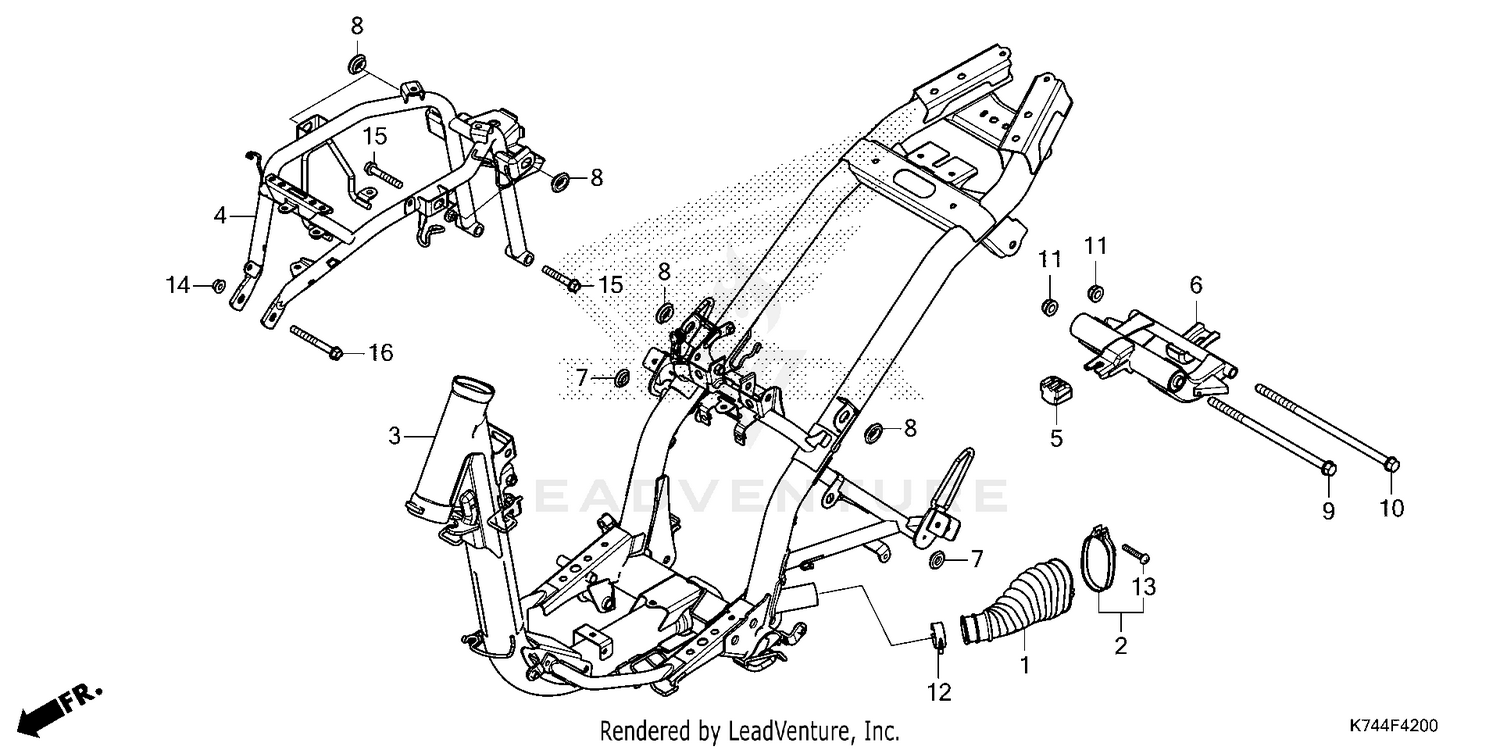

| Ref | Part Number | Description |
|---|
| 1 |
11345-KWP-G00 |
DUCT, L. COVER Price: $1.15 |
| 2 |
11346-KCW-870 |
BAND, L. COVER DUCT Price: $0.75 |
| 3 |
50100-K74-A10 |
FRAME COMP Price: $475.63 |
| 4 |
50160-K74-A00 |
STAY, FUEL TANK Price: $36.27 |
| 5 |
50352-GW0-730 |
RUBBER, LINK STOPPER Price: $7.89 |
| 6 |
50355-K74-N00 |
LINK SUB-ASSY. Price: $19.69 |
| 7 |
83551-376-000 |
GROMMET, SIDE COVER Price: $3.62 |
| 8 |
83551-GE2-000 |
GROMMET, AIR CLEANER HOUSING Price: $7.07 |
| 9 |
90105-KJ9-000 |
BOLT, FLANGE (10X210) Price: $17.69 |
| 10 |
90106-GCC-000 |
BOLT, FLG (10X238) Price: $8.20 |
| 11 |
90304-KTE-911 |
NUT (10MM) Price: $1.22 |
| 12 |
91405-KPL-900 |
CLAMP, TUBE (D29) Price: $0.53 |
| 13 |
93500-04025-0G |
SCREW, PAN (4X25) Price: $0.75 |
| 14 |
94050-08000 |
NUT, FLANGE (8MM) NUT, FLANGE (10MM) Price: $0.98 |
| 15 |
95701-08050-00 |
BOLT, FLANGE (8X50) Price: $2.57 |
