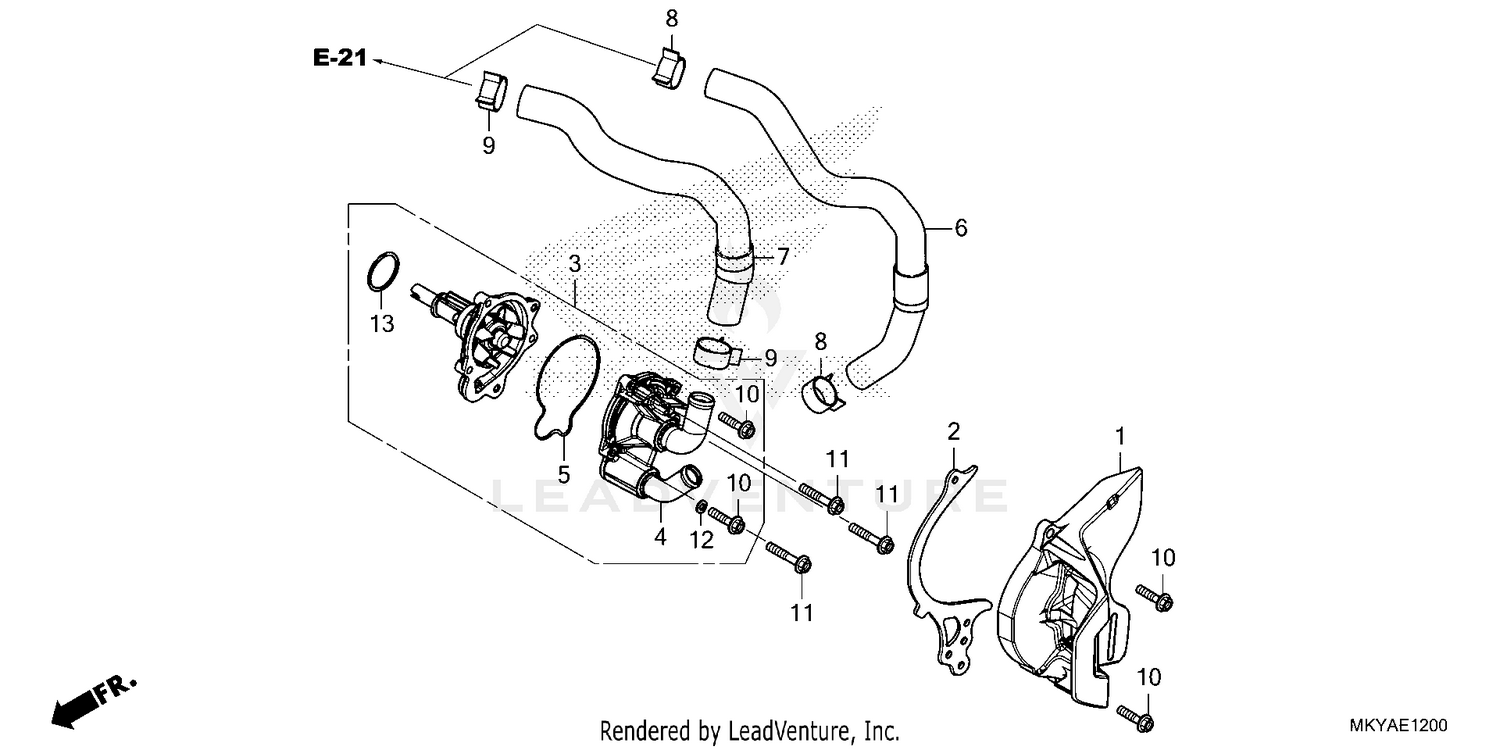

| Ref | Part Number | Description |
|---|
| 1 |
11350-MKY-E20 |
COVER, L. RR. Price: $8.09 |
| 2 |
11356-MKY-E20 |
PLATE, CHAIN GUIDE Price: $10.89 |
| 3 |
19200-MKY-305 |
WATER PUMP Price: $223.82 |
| 4 |
19220-MJE-DB0 |
COVER, WATER PUMP Price: $183.05 |
| 5 |
19226-MJE-D00 |
GASKET, WATER PUMP BODY Price: $10.45 |
| 6 |
19525-MKY-D10 |
HOSE A, WATER Price: $26.20 |
| 7 |
19526-MJE-D00 |
HOSE B, WATER Price: $29.91 |
| 8 |
19531-MGZ-J00 |
CLIP, WATER HOSE (D27) Price: $2.27 |
| 9 |
19533-MGZ-J00 |
CLIP, WATER HOSE (D30) Price: $4.15 |
| 10 |
90028-GHB-680 |
BOLT, FLANGE (6X25) (S-NSHF) Price: $1.25 |
| 11 |
90028-GHB-720 |
BOLT, FLANGE (6X35) (S-NSHF) Price: $1.25 |
| 12 |
90463-ML7-000 |
WASHER, SEALING (6.5MM) Price: $3.53 |
