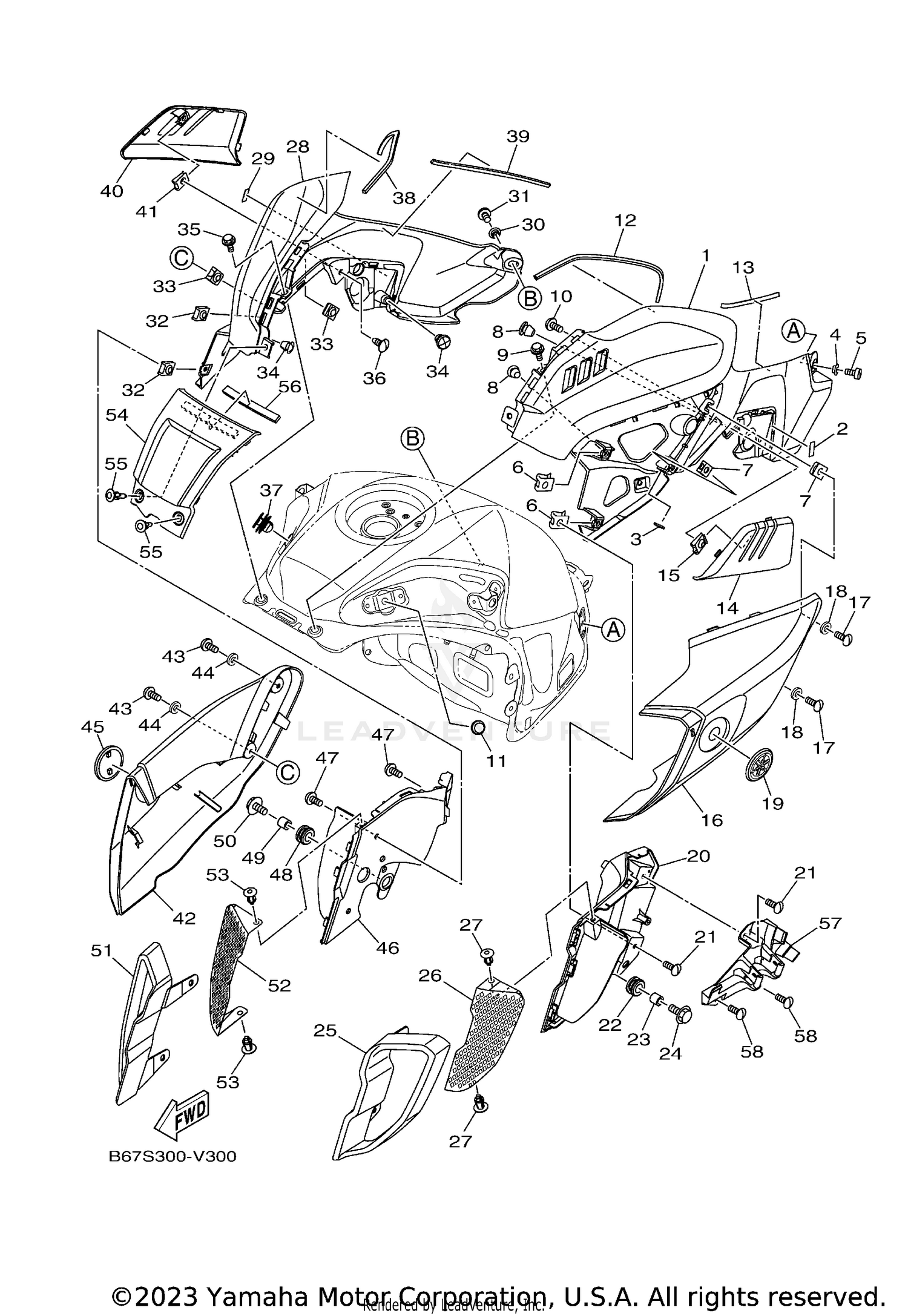

| Ref | Part Number | Description |
|---|
| 2 |
1S4-2476U-00-00 |
PROTECTOR 1 Price: $3.15 |
| 3 |
90520-01001-00 |
DAMPER, PLATE Price: $9.49 |
| 4 |
90387-05035-00 |
COLLAR Price: $8.49 |
| 5 |
98902-05008-00 |
SCREW, BIND Price: $1.85 |
| 6 |
90183-05042-00 |
NUT, SPRING Price: $1.00 |
| 7 |
90183-050A6-00 |
NUT, SPRING This part replaces 90183-05076-00. Price: $2.95 |
| 8 |
90338-07180-00 |
PLUG This part replaces 90338-06018-00. Price: $8.49 |
| 9 |
90110-05014-00 |
BOLT, HEXAGON SOCKET HEAD Price: $9.49 |
| 10 |
97707-50012-00 |
SCREW, TRUSS HEAD TAPPING This part replaces 97702-50012-00. Price: $4.63 |
| 11 |
90269-09006-00 |
RIVET Price: $2.55 |
| 12 |
4C8-21746-00-00 |
DAMPER Price: $2.50 |
| 13 |
5YU-2177N-00-00 |
DAMPER, LOCATING 4 Price: $2.75 |
| 14 |
B67-28345-00-00 |
MOLE 1 Price: $12.49 |
| 15 |
90183-05042-00 |
NUT, SPRING Price: $1.00 |
| 17 |
90111-05021-00 |
BOLT, HEX. SOCKET BUTTON Price: $6.49 |
| 18 |
90202-05180-00 |
WASHER, PLATE Price: $11.49 |
| 19 |
1RC-2413B-02-00 |
EMBLEM This part replaces 1RC-2413B-01-00. Price: $22.99 |
| 21 |
97707-50014-00 |
SCREW, TRUSS HEAD TAPPING Price: $9.49 |
| 22 |
90480-14003-00 |
GROMMET Price: $9.49 |
| 23 |
90387-06260-00 |
COLLAR Price: $9.49 |
| 24 |
95817-06016-00 |
BOLT, FLANGE This part replaces 95802-06016-00. Price: $1.95 |
| 26 |
B67-2837N-00-00 |
GRILL, AIR INTAKE 1 Price: $45.99 |
| 27 |
90269-06019-00 |
RIVET Price: $3.45 |
| 29 |
1S4-2476U-00-00 |
PROTECTOR 1 Price: $3.15 |
| 30 |
90387-05035-00 |
COLLAR Price: $8.49 |
| 31 |
98902-05008-00 |
SCREW, BIND Price: $1.85 |
| 32 |
90183-05042-00 |
NUT, SPRING Price: $1.00 |
| 33 |
90183-050A6-00 |
NUT, SPRING This part replaces 90183-05076-00. Price: $2.95 |
| 34 |
90338-07180-00 |
PLUG This part replaces 90338-06018-00. Price: $8.49 |
| 35 |
90110-05014-00 |
BOLT, HEXAGON SOCKET HEAD Price: $9.49 |
| 36 |
97707-50012-00 |
SCREW, TRUSS HEAD TAPPING This part replaces 97702-50012-00. Price: $4.63 |
| 37 |
90269-09006-00 |
RIVET Price: $2.55 |
| 38 |
4C8-21746-00-00 |
DAMPER Price: $2.50 |
| 39 |
5YU-2177N-00-00 |
DAMPER, LOCATING 4 Price: $2.75 |
| 40 |
B67-28346-00-00 |
MOLE 2 Price: $18.49 |
| 41 |
90183-05042-00 |
NUT, SPRING Price: $1.00 |
| 43 |
90111-05021-00 |
BOLT, HEX. SOCKET BUTTON Price: $6.49 |
| 44 |
90202-05180-00 |
WASHER, PLATE Price: $11.49 |
| 45 |
1RC-2413B-02-00 |
EMBLEM This part replaces 1RC-2413B-01-00. Price: $22.99 |
| 47 |
97707-50014-00 |
SCREW, TRUSS HEAD TAPPING Price: $9.49 |
| 48 |
90480-14003-00 |
GROMMET Price: $9.49 |
| 49 |
90387-06260-00 |
COLLAR Price: $9.49 |
| 50 |
95817-06016-00 |
BOLT, FLANGE This part replaces 95802-06016-00. Price: $1.95 |
| 52 |
B67-2837R-00-00 |
GRILL, AIR INTAKE 2 Price: $45.99 |
| 53 |
90269-06019-00 |
RIVET Price: $3.45 |
| 55 |
90269-06008-00 |
RIVET Price: $9.49 |
| 56 |
4B5-2174X-00-00 |
DAMPER Price: $8.49 |
| 57 |
B67-2172M-01-00 |
BRACKET 3 This part replaces B67-2172M-00-00. Price: $15.49 |
