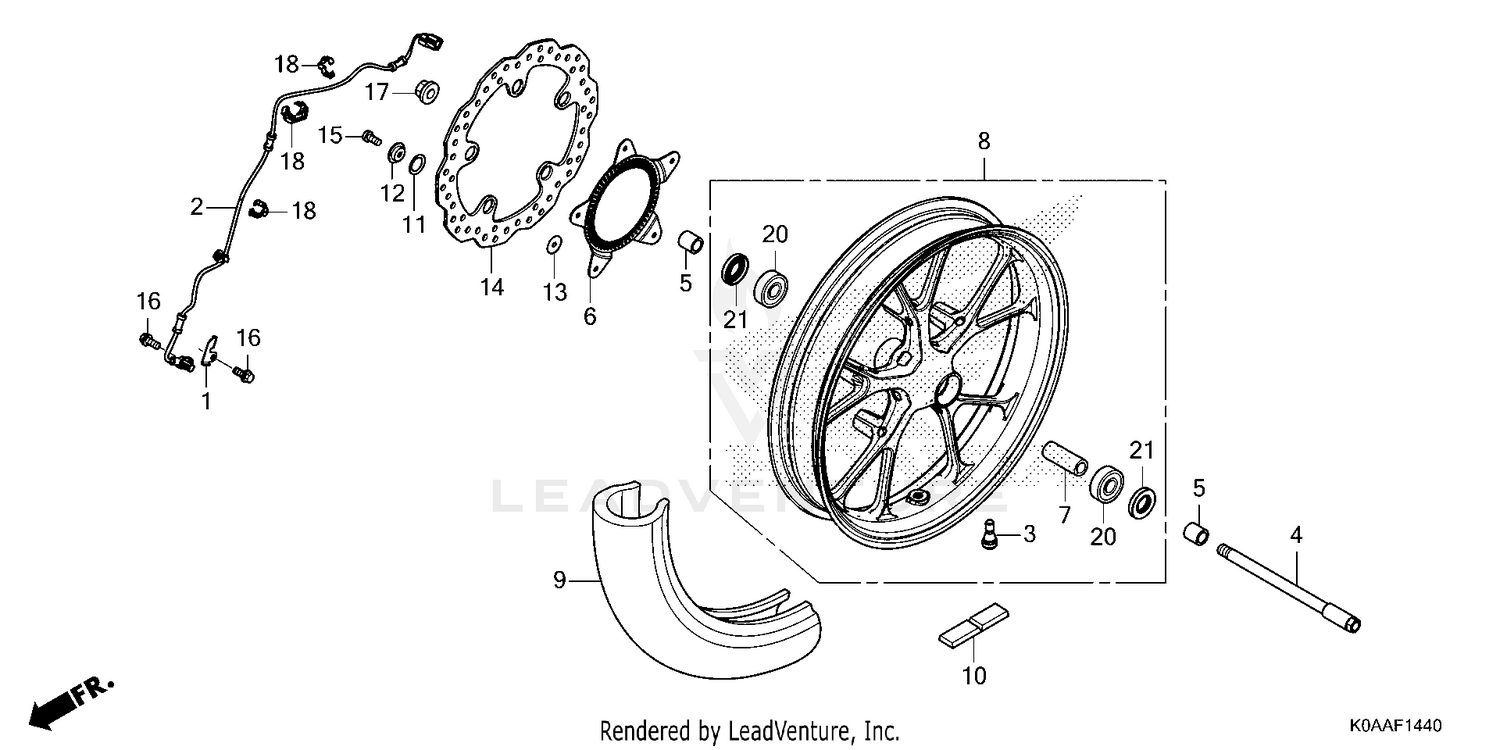

| Ref | Part Number | Description |
|---|
| 1 |
38514-K94-T10 |
CLAMP, SENSOR Price: $1.73 |
| 2 |
38520-K98-E21 |
SENSOR, FR. Price: $27.20 |
| 3 |
42753-GM9-743 |
VALVE, RIM (IRC) Price: $10.51 |
| 4 |
44301-K94-T00 |
AXLE, FR. WHEEL Price: $24.82 |
| 5 |
44311-KYJ-900 |
COLLAR, FR. WHEEL Price: $10.24 |
| 6 |
44515-K0A-DB0 |
RING, FR. PULSER Price: $48.33 |
| 7 |
44620-K94-T00 |
COLLAR, FR. AXLE DISTANCE Price: $7.58 |
| 8 |
44650-K94-T10ZC |
WHEEL SUB-ASSY., FR. *NH303M* (MAT AXIS GRAY METALLIC) Price: $313.55 |
| 8 |
44650-K94-T10ZD |
WHEEL SUB-ASSY., FR. *YR325M* (PYRITE BROWN METALLIC) Price: $316.49 |
| 9 |
44711-K94-T02 |
TIRE, FR. (110/70R17M/C 54H) (DUNLOP) Price: $167.23 |
| 10 |
44721-MLN-EQ1 |
WEIGHT, BALANCE (10G) Price: Call Us |
| 10 |
44722-MLN-EQ1 |
WEIGHT, BALANCE (15G) Price: $4.71 |
| 10 |
44723-MLN-EQ1 |
WEIGHT, BALANCE (20G) Price: $4.63 |
| 11 |
45223-MGC-003 |
SPRING, FR. DISK Price: $7.16 |
| 12 |
45225-K0A-DB0 |
COLLAR, FR. DISK Price: $2.56 |
| 13 |
45226-K94-T00 |
WASHER, FR. DISK Price: $1.38 |
| 14 |
45251-K94-T01 |
DISK, FR. BRAKE Price: $153.29 |
| 15 |
90106-K0A-DB0 |
BOLT, TORX (8X18) Price: $1.15 |
| 16 |
90117-KZZ-J80 |
BOLT, FLANGE (6X14) (NOT AVAILABLE) Price: $0.65 |
| 17 |
90305-K64-N00 |
NUT, AXLE (14MM) Price: $8.69 |
| 18 |
90690-MGS-D81 |
CLIP, CABLE (12MM) Price: $2.55 |
| 20 |
91051-KVS-F01 |
BEARING, RADIAL BALL (6302UU) (FUJIKOSHI) Price: $16.13 |
