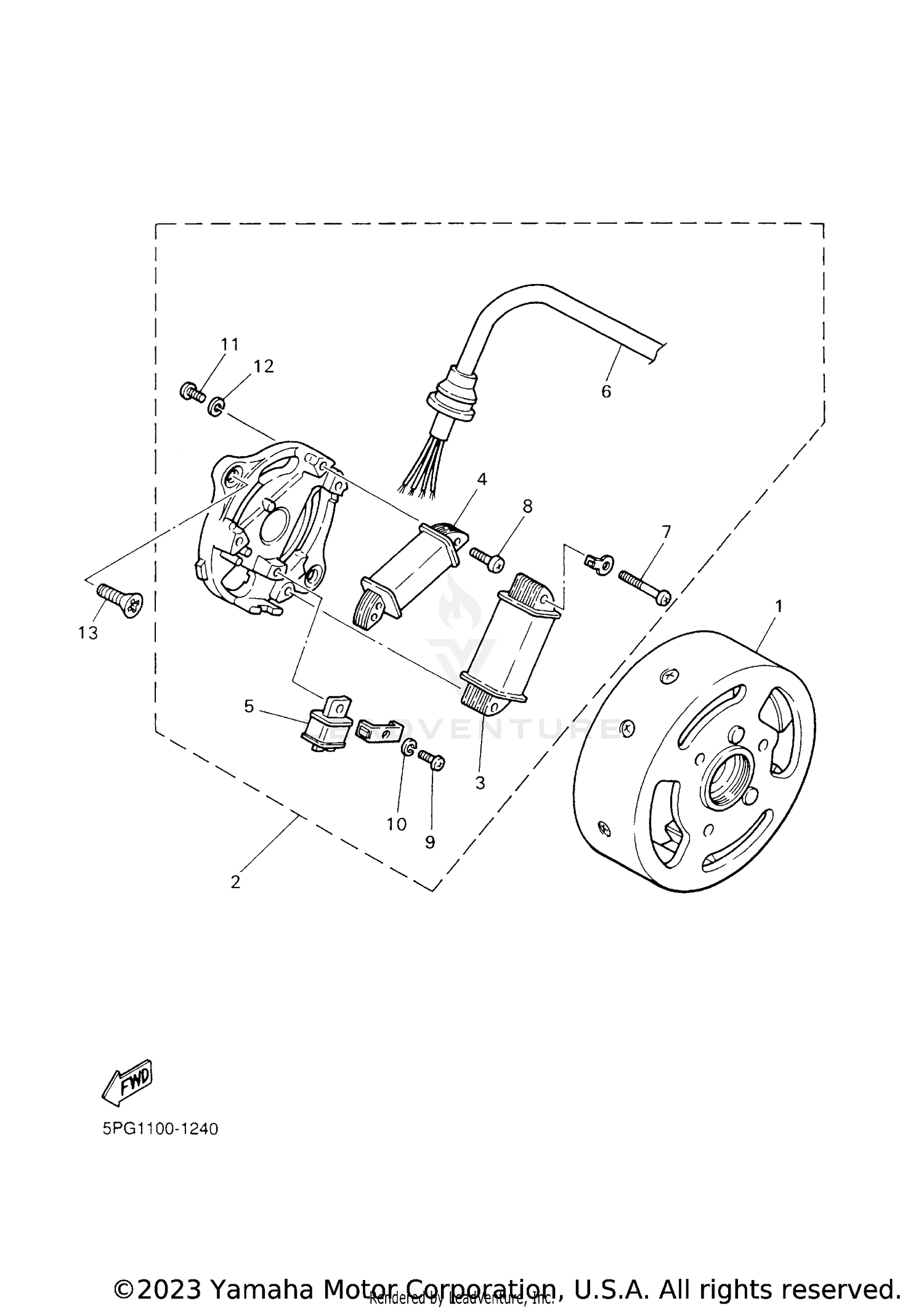

GENERATOR
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 3L6-85550-M1-00 | ROTOR ASSY Price: $182.99 |
| 2 | 3PT-85560-03-00 | BASE ASSY This part replaces 3PT-85560-00-00. Price: $119.99 |
| 3 | 4X4-81313-M0-00 | COIL, LIGHTING 1 Price: $89.99 |
| 4 | 4Y4-85520-M1-00 | COIL, CHARGE This part replaces 4Y4-85520-M0-00. Price: $50.99 |
| 5 | 3L5-85580-M0-00 | COIL, PULSER Price: $76.99 |
| 6 | 3PT-8131X-00-00 | CORD ASSY Price: $45.99 |
| 7 | 98517-04025-00 | SCREW, PAN HEAD Price: $3.20 |
| 8 | 98517-04012-00 | SCREW,PANHEAD Price: $4.20 |
| 9 | 98507-04010-00 | SCREW, PAN HEAD Price: $3.55 |
| 10 | 92907-04100-00 | WASHER, SPRING Price: $9.49 |
| 11 | 98517-04006-00 | SCREW, PAN HEAD This part replaces 98507-04006-00. Price: $4.50 |
| 12 | 92907-04100-00 | WASHER, SPRING Price: $9.49 |
