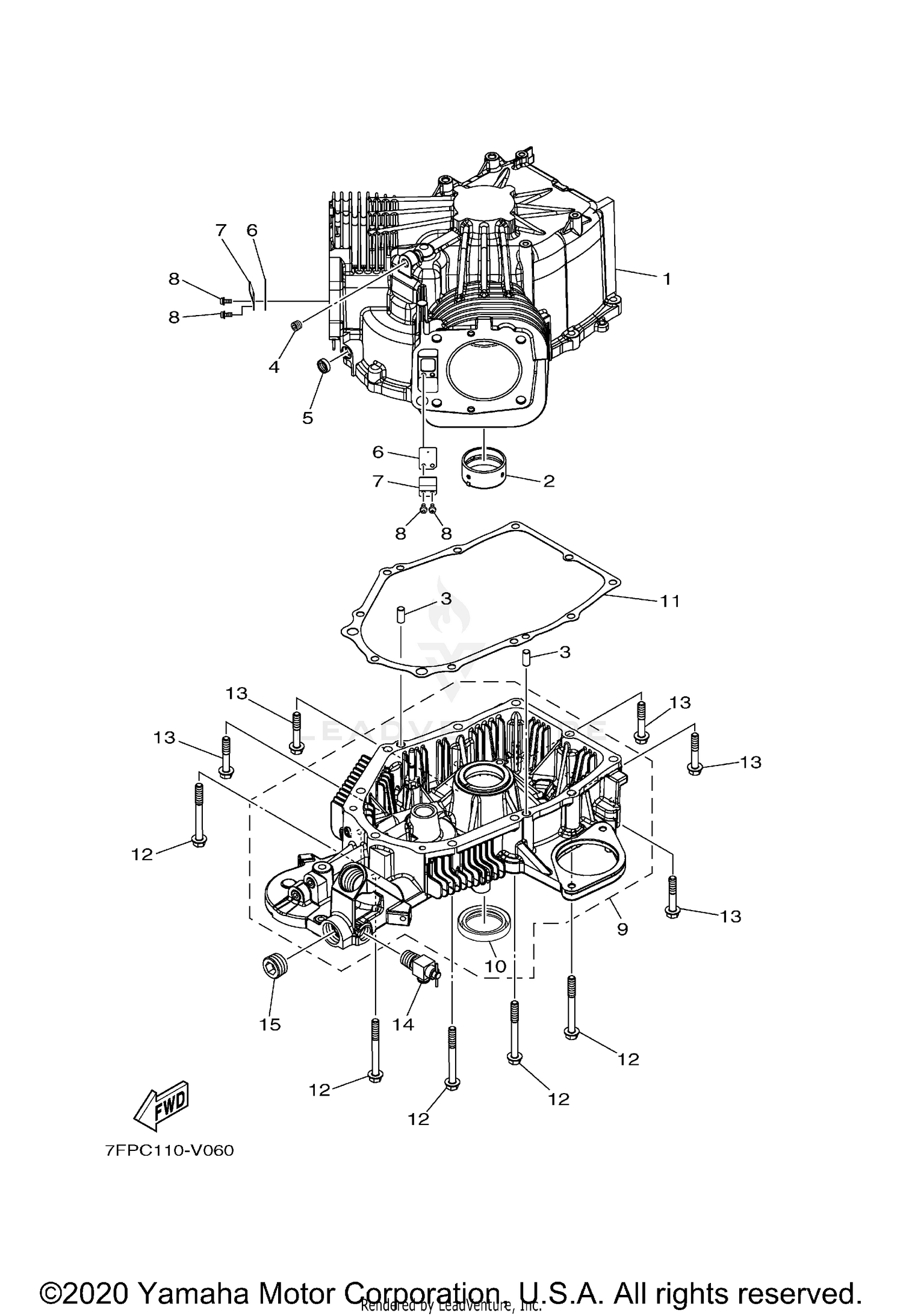

CRANKCASE
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 7FP-15111-00-00 | CRANKCASE 1 Price: $445.99 |
| 2 | 7D3-15693-00-00 | BEARING Price: $43.99 |
| 3 | 7D3-15181-00-00 | PIN, DOWEL Price: $2.20 |
| 4 | 7D3-15167-00-00 | PLUG, BLIND 1 Price: $4.25 |
| 5 | 7D3-1511A-00-00 | OIL SEAL Price: $4.35 |
| 6 | 7FP-13613-00-00 | REED, VALVE Price: $3.20 |
| 7 | 7FP-13616-00-00 | STOPPER, REED VALV Price: $7.49 |
| 8 | 7D3-5238L-00-00 | SCREW,SPECIAL 1 Price: $0.60 |
| 9 | 7FP-15410-01-00 | CRANKCASE COVER ASSY This part replaces 7FP-15410-00-00. Price: $463.99 |
| 10 | 7D3-1511B-00-00 | OIL SEAL Price: $17.99 |
| 11 | 7FP-15451-00-00 | GASKET, CRANKCASE Price: $65.99 |
| 12 | 7FP-5A112-00-00 | BOLT, FLANGE Price: $3.60 |
| 13 | 7D3-5A112-00-00 | BOLT, FLANGE Price: $2.25 |
| 14 | 7FP-12478-00-00 | COCK, DRAIN Price: $86.99 |
