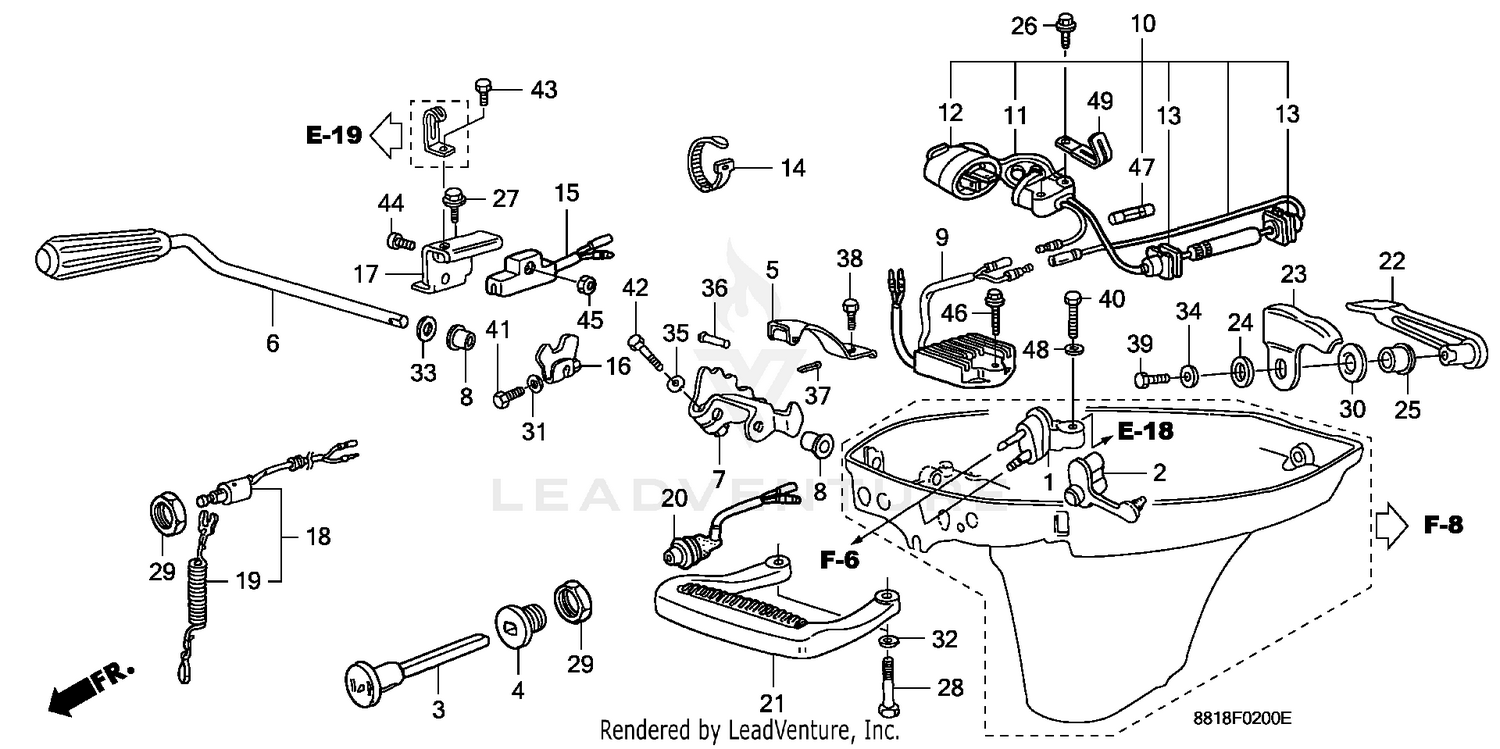

| Ref | Part Number | Description |
|---|
| 1 |
17710-881-840ZB |
CONNECTOR, FUEL *NH282MU* (OYSTER SILVER METALLIC-U) Price: $31.46 |
| 2 |
17711-881-000 |
CAP, FUEL JOINT Price: $3.34 |
| 3 |
17951-921-030 |
KNOB, CHOKE Price: $14.96 |
| 4 |
17953-921-010 |
GUIDE, CHOKE KNOB Price: $7.00 |
| 5 |
24210-921-000 |
SPRING, CLICK Price: $12.40 |
| 6 |
24610-881-010 |
SEE PART DETAILS - PRI; SHAFT, SHIFT Price: $50.04 |
| 7 |
24612-881-030 |
ARM, GEARSHIFT Price: $21.38 |
| 8 |
24621-921-010 |
BUSH, SHAFT Price: $6.84 |
| 9 |
31620-881-A02 |
RECTIFIER ASSY., REGULATOR Price: $208.52 |
| 10 |
31650-881-A02 |
SEE PART DETAILS - PRI; RECEPTACLE ASSY., CHARGE Price: $37.00 |
| 11 |
31651-881-A01 |
RECEPTACLE Price: $19.90 |
| 12 |
31652-881-024 |
SEE PART DETAILS - PRI; PLUG, RECEPTACLE This part replaces 31652-881-014. Price: $23.08 |
| 13 |
32653-HA8-680 |
GROMMET, FUSE HOLDER Price: $4.16 |
| 14 |
32901-952-770 |
TIE, CABLE (NATURAL 2.4X92) Use up to Frame SN 1300359. Price: $3.00 |
| 15 |
35100-881-003 |
SWITCH ASSY., NEUTRAL Price: $97.12 |
| 16 |
35110-881-000 |
PLATE, SWITCH SHIELD Price: $31.50 |
| 17 |
35120-881-000 |
PLATE, SWITCH SETTING Price: $28.44 |
| 18 |
36180-881-A04 |
SEE PART DETAILS - PRI; SWITCH ASSY., EMERGENCY STOP Price: $62.98 |
| 19 |
36182-ZV4-651 |
SEE PART DETAILS - PRI; WIRE, EMERGENCY (SINGLE) (DUAL) Price: $25.28 |
| 20 |
37210-ZV4-003 |
SEE PART DETAILS - PRI; LAMP ASSY., INDICATOR Price: $51.50 |
| 21 |
50281-881-841ZB |
HANDLE, CARRYING *NH282MU* (OYSTER SILVER METALLIC-U) Price: $35.28 |
| 22 |
63201-881-841ZB |
LEVER, COVER LOCK *NH282MU* (OYSTER SILVER METALLIC-U) Price: $34.60 |
| 23 |
63202-881-000 |
HOOK, COVER LOCK Price: $19.48 |
| 24 |
63203-935-000 |
WASHER, COVER LOCK Price: $3.94 |
| 25 |
63205-920-000 |
BUSH, COVER LOCK Price: $6.20 |
| 26 |
90014-ZV1-010 |
SEE PART DETAILS - PRI; BOLT, FLANGE (5X22) This part replaces 90014-ZV1-000. Price: $1.64 |
| 27 |
90016-920-000 |
BOLT, FLANGE (6X12) Price: $2.46 |
| 28 |
90115-881-000 |
BOLT, HEX. (8X32) Price: $5.50 |
| 29 |
90302-921-000 |
NUT, HEX. (16MM) DUAL QTY = (2) (SINGLE) Price: $5.62 |
| 30 |
90455-881-000 |
SEE PART DETAILS - PRI; SPRING, LEVER Price: $4.46 |
| 31 |
90504-921-010 |
WASHER, PLAIN (6MM) Use from Frame SN 4800713. Price: $1.74 |
| 32 |
90507-ZV4-000 |
WASHER, PLAIN (8MM) Use up to Frame SN 4800712. Price: $3.02 |
| 33 |
90511-921-000 |
WASHER, PLAIN (10MM) Price: $1.18 |
| 34 |
90512-921-010 |
SEE PART DETAILS - PRI; WASHER (6MM) Price: $1.46 |
| 35 |
90518-921-000 |
WASHER, PLAIN (8MM) Use from Frame SN 4800713. Price: $1.64 |
| 36 |
90754-921-010 |
PIN (5X17) Price: $11.94 |
| 37 |
90756-921-000 |
PIN, COTTER (1.6MM) Price: $1.98 |
| 38 |
92101-06012-0B |
SEE PART DETAILS - PRI; BOLT, HEX. (6X12) (Honda Code 2959526). Price: $1.46 |
| 39 |
92101-06016-0B |
SEE PART DETAILS - PRI; BOLT, HEX. (6X16) Price: $1.62 |
| 40 |
92101-06020-4J |
SEE PART DETAILS - PRI; BOLT, HEX. (6X20) Price: $1.74 |
| 41 |
92101-06028-4J |
SEE PART DETAILS - PRI; BOLT, HEX. (6X28) Price: $5.92 |
| 42 |
92101-08028-4J |
BOLT, HEX. (8X28) Price: $4.24 |
| 43 |
92101-06008-0B |
SEE PART DETAILS - PRI; BOLT, HEX. (6X8) Price: $2.30 |
| 44 |
93500-05020-4J |
SCREW, PAN (5X20) Price: $1.18 |
| 45 |
94001-05490-0S |
NUT, HEX. (5MM) Price: $1.26 |
| 46 |
95701-06025-02 |
BOLT, FLANGE (6X25) Price: $1.82 |
| 47 |
98200-10500 |
FUSE A (5A) Price: $1.26 |
| 48 |
90504-921-010 |
WASHER, PLAIN (6MM) Use from Frame SN 4800713. Price: $1.74 |
