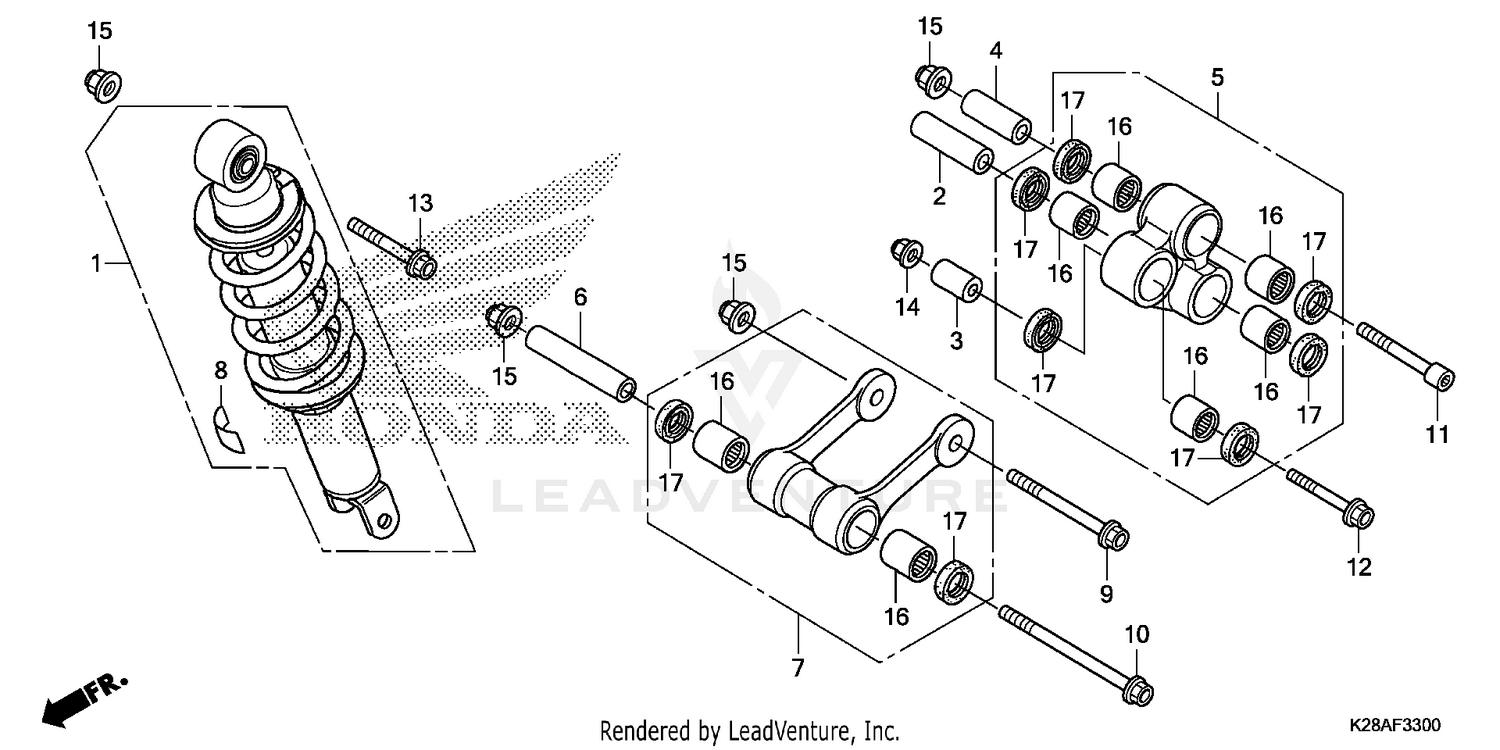

| Ref | Part Number | Description |
|---|
| 1 |
52400-K28-A61 |
CUSHION ASSY., RR. Price: $553.60 |
| 2 |
52462-K28-910 |
COLLAR A, CUSHION ARM Price: $23.76 |
| 3 |
52463-K28-910 |
COLLAR, DAMPER (LOWER) Price: $22.05 |
| 4 |
52464-K28-910 |
COLLAR B, CUSHION ARM Price: $23.75 |
| 5 |
52465-K28-910 |
ARM SUB-ASSY., CUSHION Price: $263.15 |
| 6 |
52472-K28-910 |
COLLAR, CONNECTING ROD Price: $30.42 |
| 7 |
52475-K28-910 |
ROD SUB-ASSY., CUSHION CONNECTING Price: $225.40 |
| 8 |
87516-KRH-901 |
LABEL, RR. DAMPER (ENGLISH) Price: $9.11 |
| 9 |
90102-K28-910 |
BOLT, FLANGE (10X95) Price: $7.15 |
| 10 |
90106-K28-910 |
BOLT, FLANGE (10X121) Price: $7.76 |
| 11 |
90128-K28-910 |
BOLT, SOCKET (10X68) Price: $9.97 |
| 12 |
90150-K28-910 |
BOLT, FLANGE (8X48) Price: $3.65 |
| 13 |
90152-K28-910 |
BOLT, FLANGE (10X54) Price: $3.80 |
| 14 |
90303-K28-911 |
NUT, FLANGE SPECIAL (8MM) Price: $5.20 |
| 15 |
90304-KYA-601 |
NUT, FLANGE (10MM) (PT) Price: $4.25 |
| 16 |
91071-MY1-005 |
BEARING, NEEDLE (17X24X17) (KOYO) Price: $23.85 |
