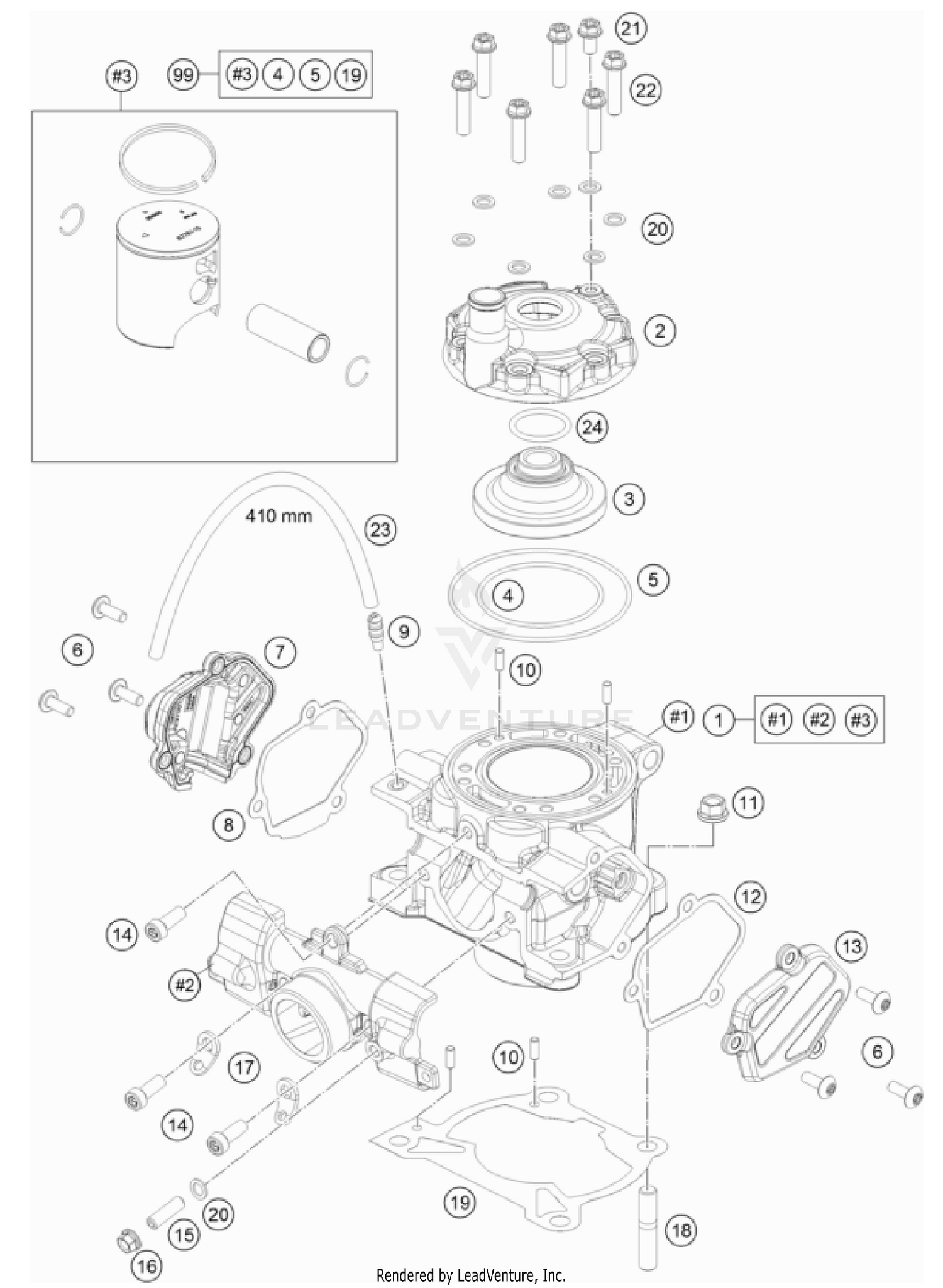

CYLINDER
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 47230038000 | Cylinder + piston 85SX/TC85 Price: $925.97 |
| 2 | 47230006000 | Cylinder head Price: $46.85 |
| 3 | 47230060100 | Combustion chamber inlay Price: $33.10 |
| 4 | 0770540020 | O-RING 54X2 VITON Price: $12.20 |
| 5 | 0770800021 | O-RING 80,00X2,00 VITON Price: $8.13 |
| 6 | 58605083014 | SCREW M5X14 TORX 25 07 Price: $3.99 |
| 7 | 4723700700033 | Exhaust regulation cover rh Price: $20.45 |
| 8 | 47237008000 | Exhaust ctrl cover gasket rhs Price: $4.99 |
| 9 | 58336020090 | VACUUM CONNECTION M 6X1 Price: $7.80 |
| 10 | 0402040980 | NEEDLE ROL.DIN5402 NRB 4X9,8 Price: $3.99 |
| 12 | 47237006000 | Exhaust ctrl cover gasket lhs Price: $5.49 |
| 13 | 4723700500033 | Exhaust regulation vover lh Price: $19.24 |
| 14 | 014580060166 | SHCS ISO 14580 M6x16 Price: $2.99 |
| 15 | 0913060203 | THREAD PIN DIN0913-M 6X20 Price: $1.99 |
| 16 | 77336088106 | COLLAR NUT M6X1 SW8 Price: $14.84 |
| 17 | 51005074000 | RETAINING PLATE Price: $3.99 |
| 18 | 0835080256 | STUD DIN0835-M 8X25 10.9 Price: $3.99 |
| 20 | 0603061001 | CU-SEAL RING DIN7603-6X10X1 Price: $2.99 |
| 21 | 0025060106 | HH collar screw M6x10 TX30 Price: $3.99 |
| 22 | 0025060256 | HH collar screw M6x25 TX30 Price: $3.99 |
| 23 | 50335030001 | PVC-HOSE 6X9 Price: $7.91 |
| 24 | 07702300251 | O-RING 23,00X2,5 NBR 70 SH Price: $2.99 |
