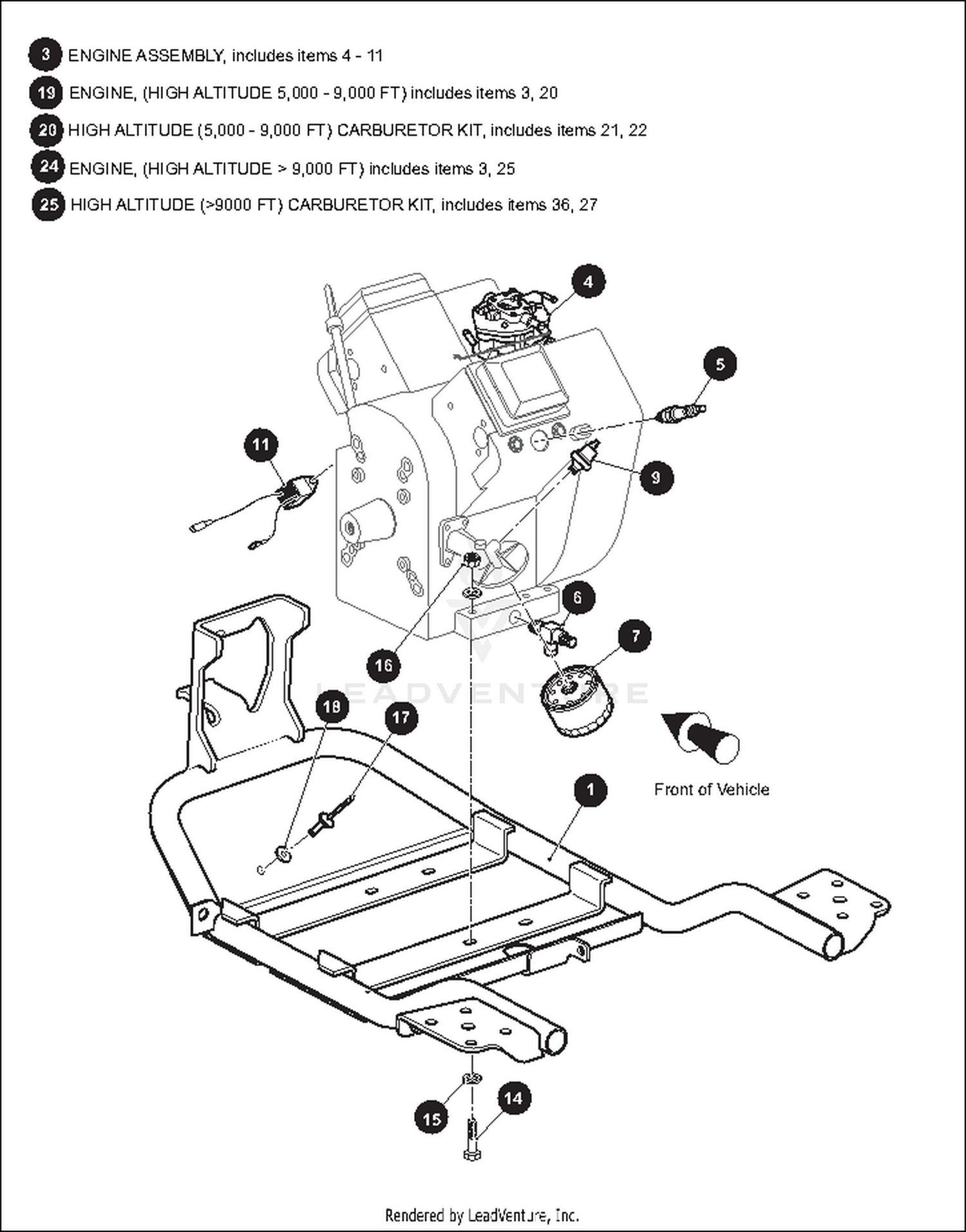

| Ref | Part Number | Description |
|---|
| 1 |
627538 |
WELDMENT,INNER FRAME Price: $931.80 |
| 3 |
627655 |
B&S 479CC 16HP ENGINE W/O MUFFLER Not Available Price: |
| 4 |
808979 |
CARBURETOR Price: Call Us |
| 5 |
491055S |
SPARK PLUG,ST480,B/S Price: $22.99 |
| 6 |
75814G01 |
VALVE OIL DRAIN Price: $50.01 |
| 7 |
492932S |
OIL FILTER (2-1/4),ST480,B/S Price: $21.25 |
| 9 |
690233 |
SWITCH-OIL PRESSURE Price: $69.62 |
| 11 |
809093 |
IGNITION CONTROL MODULE (ST480) Price: $296.29 |
| 14 |
N/S |
NON-SERVICEABLE PART Price: Call Us |
| 15 |
00559G8 |
FLAT WASHER, 5/16" Price: $0.99 |
| 16 |
11098G6 |
LOCK NUT, 5/16"-18 Price: $2.99 |
| 17 |
10570G3 |
RIVET-1/8 X 17/32 Price: $0.33 |
| 18 |
00559G4 |
FLAT WASHER, #8 Price: $1.99 |
| 20 |
617110 |
KIT,CARB JET,HA,5K-9K B&S Not Available Price: |
| 21 |
617108 |
CARB MAIN JET #94 B&S 16HP Not Available Price: |
| 22 |
617128 |
DECAL,CARB,HIGH ALT,5K-9K FT Not Available Price: |
| 25 |
617111 |
KIT,CARB JET,HA>9K B&S Not Available Price: |
| 26 |
617109 |
CARB MAIN JET #89 B&S 16HP Price: $121.35 |
