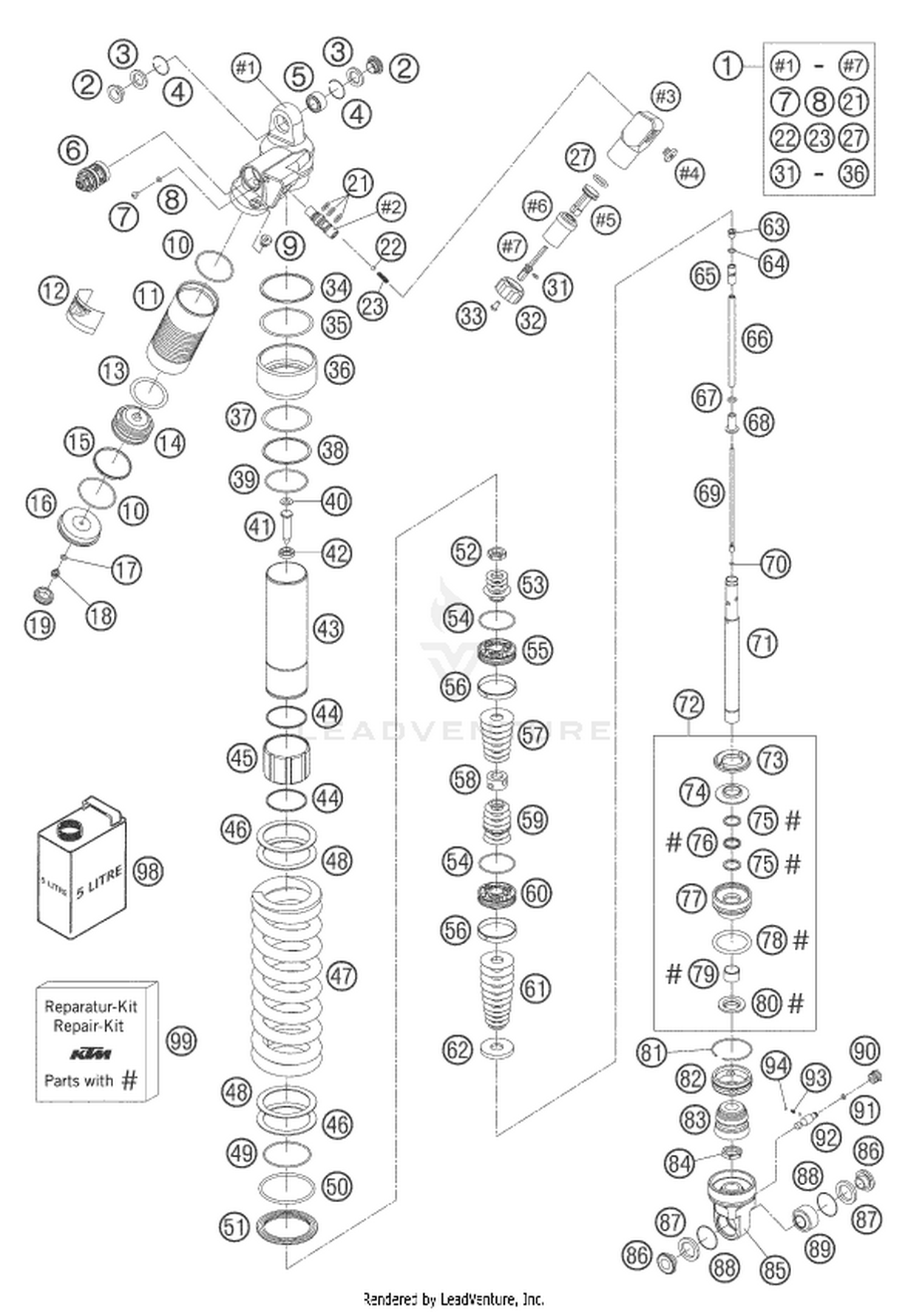

| Ref | Part Number | Description |
|---|
| 1 |
1200Y002 |
PA cpl. KTM LC8 Price: Call Us |
| 2 |
50180366 |
Bearing bush 14x15/18/24,5x10, Price: Call Us |
| 3 |
46180003 |
Seal ring 19,5x26x3 Price: Call Us |
| 4 |
50180168 |
Round-wire snap ring 25x1 Price: Call Us |
| 5 |
50180005 |
Ball joint bearing 15x25x13 Price: Call Us |
| 6 |
50180213S4 |
NEEDS DESCRIPTION Price: Call Us |
| 7 |
48600058 |
Cross flat head screw M4x6 Price: Call Us |
| 8 |
48600009 |
O-ring 3,7x1,6 NBR70 Price: Call Us |
| 9 |
50180095 |
HS cylinder-head screw R1/8 l8 Price: Call Us |
| 10 |
46810016 |
O-ring 48x2 NBR70 siliconized Price: Call Us |
| 11 |
50180237 |
RESERVOIR SCREW L=123,5 D=52 Not Available Price: |
| 12 |
52000086 |
Sticker WP clear 35x55 This part replaces 52000044. Price: Call Us |
| 13 |
46180014 |
O-ring 41x5 Viton75 Price: Call Us |
| 14 |
46180002 |
Piston 52mm reservoir Price: Call Us |
| 15 |
46180015 |
Pistonring 47,5x50,5x3,9 Price: Call Us |
| 16 |
50180344 |
RESERVOIR CAP D=58 Not Available Price: |
| 17 |
S208600003000FB |
O-ring 5,28x1,78 HNBR70 red This part replaces 46810893. Price: Call Us |
| 18 |
36120151ST |
PLUG SCREW M5X6 CPL. This part replaces 36120151. Price: Call Us |
| 19 |
46811208 |
Rubber cap do not open 22x5,5 Price: Call Us |
| 21 |
35480083 |
O-ring 10x2 NBR70 siliconized Price: Call Us |
| 22 |
40540440 |
Steel ball d5 Price: Call Us |
| 23 |
46810332 |
Spring (3,2) 17 Price: Call Us |
| 27 |
46810003 |
O-ring 17x3 NBR70 siliconized Price: Call Us |
| 31 |
48600044 |
O-ring 6x1,5 NBR70 Price: Call Us |
| 32 |
50180381 |
Adjuster PA black Price: Call Us |
| 33 |
46811771 |
HS flat head screw M5x10 Price: Call Us |
| 34 |
50180370 |
Washer 64,6x70x1,4 support rin Price: Call Us |
| 35 |
50180369 |
O-ring 63,09x3,53 NBR70 Price: Call Us |
| 36 |
50180371 |
PA outside ring 58.13/70x61.4/ Price: Call Us |
| 37 |
50180372 |
O-ring 57,15x3,53 NBR70 Price: Call Us |
| 38 |
50180373 |
Washer 58x63.4x1.4 support rin Price: Call Us |
| 39 |
50180097 |
O-ring 52x2 NBR70 Price: Call Us |
| 41 |
50180300 |
Needle 10.2x37 Price: Call Us |
| 42 |
50180437 |
SCREW CAP M20X1 D=11,5 H=5 Not Available Price: |
| 43 |
50180367 |
Tube 50x180 PDS Price: Call Us |
| 45 |
50180081 |
Spring guide 54,15x60x40 Price: Call Us |
| 46 |
50180114 |
Intermediate washer spring 61, Price: Call Us |
| 47 |
91210036SA |
SPRING 150-225 (62) D=14,5 This part replaces 91210036. Price: Call Us |
| 48 |
50180402 |
Interm. ring spring ret. H=3.5 Not Available Price: |
| 49 |
50180273 |
Round-wire snap ring 58,5x2 Price: Call Us |
| 50 |
50180352 |
O-ring 66,27x1,78 Viton70 Price: Call Us |
| 51 |
50180463S |
SPRING RET. D=80 W. O-RING 05 Price: Call Us |
| 52 |
50180141 |
Piston rod nut 16x1 Price: Call Us |
| 53 |
50180054 |
Shim 16x28x0,2 Price: Call Us |
| 53 |
50180209 |
Shim 21x36x0,25 Price: Call Us |
| 53 |
50180210 |
WASHER 16X21X1 Price: Call Us |
| 54 |
50180099 |
O-ring 44x,17x1,78 Viton70 Price: Call Us |
| 55 |
50180197 |
Piston 16,05x49,6x13,5 4,5/7 Price: Call Us |
| 56 |
50180135 |
Piston ring 47,95x49,95x8 Price: Call Us |
| 57 |
50180062 |
SHIM 16X44X0,20 Price: Call Us |
| 57 |
50180068 |
SHIM 16X38X0,25 Price: Call Us |
| 57 |
50180069 |
SHIM 16X40X0,25 Price: Call Us |
| 57 |
50180070 |
SHIM 16X42X0,25 Price: Call Us |
| 57 |
50180074 |
SHIM 16X32X0,30 Price: Call Us |
| 57 |
50180075 |
SHIM 16X34X0,30 Price: Call Us |
| 57 |
50180076 |
SHIM 16X36X0,30 Price: Call Us |
| 58 |
50180269 |
SANDWICH BUSH D25XD16X14,5/D Not Available Price: |
| 59 |
46811637 |
Shim 32,25x36x0,30 Price: Call Us |
| 59 |
50180008 |
SHIM 16X22X0,10 Price: Call Us |
| 59 |
50180035 |
Shim 16x21x0,30 Price: Call Us |
| 59 |
50180047 |
SHIM 16X32X0,15 Price: Call Us |
| 59 |
50180056 |
Shim 16x32x0,2 Price: Call Us |
| 59 |
50180057 |
Shim 16x34x0,2 y5 Price: Call Us |
| 59 |
50180058 |
SHIM 16X36X0,20 Price: Call Us |
| 60 |
50180197 |
Piston 16,05x49,6x13,5 4,5/7 Price: Call Us |
| 61 |
50180036 |
Shim 16x22x0,30 Price: Call Us |
| 61 |
50180058 |
SHIM 16X36X0,20 Price: Call Us |
| 61 |
50180059 |
SHIM 16X38X0,20 Price: Call Us |
| 61 |
50180064 |
SHIM 16X30X0,25 Price: Call Us |
| 61 |
50180065 |
SHIM 16X32X0,25 Price: Call Us |
| 61 |
50180066 |
SHIM 16X34X0,25 Price: Call Us |
| 61 |
50180069 |
SHIM 16X40X0,25 Price: Call Us |
| 61 |
50180070 |
SHIM 16X42X0,25 Price: Call Us |
| 61 |
50180071 |
SHIM 16X44X0,25 Price: Call Us |
| 62 |
50180453 |
SHIM REBOUND H=24 05 Not Available Price: |
| 63 |
50180200 |
BUSH M8X1 Price: Call Us |
| 64 |
50180157 |
O-ring 7x1,5 Viton70 green Price: Call Us |
| 65 |
50180439 |
NEEDLE SEAT M8X1 D=5,5 05 Price: Call Us |
| 66 |
50180363 |
Tube 5,5x138 Price: Call Us |
| 67 |
48600049 |
O-ring 8x2 NBR70 Price: Call Us |
| 68 |
50180279 |
Bush 5/8,2/7x9,5/16,8x23 Price: Call Us |
| 69 |
50180364 |
Needle 4x161 Price: Call Us |
| 70 |
46811265 |
O-ring 2,2x1,6 Viton75 green Price: Call Us |
| 71 |
50180362 |
PISTON ROD D=18 M16X1 Not Available Price: |
| 72 |
50180349S1 |
ADAPTOR CPL. D=50, H=28,5 Not Available Price: |
| 73 |
50180107 |
Rubber pad rebound 27x48x8 NBR Price: Call Us |
| 74 |
50180304 |
STEEL DISC 18,5X43,7X6 Price: Call Us |
| 75 |
50180102 |
Washer 18x22,5x1,5 plastic Price: Call Us |
| 76 |
50180101 |
X-ring 18x2,62 Viton70 Price: Call Us |
| 77 |
50180349 |
ADAPTOR D=50, H=28,5 Not Available Price: |
| 78 |
50180103 |
O-ring 41x5 NBR70 Price: Call Us |
| 79 |
46180119 |
Guide bushing 18x20x12 Price: Call Us |
| 80 |
50180082 |
Dirt scarper 18mm Price: Call Us |
| 81 |
50180126 |
Round-wire snap ring 53x1,75 Price: Call Us |
| 82 |
50180211 |
CAP D=50 This part replaces 50180165. Price: Call Us |
| 83 |
50180276 |
Rubber pad 17,2x45,2x40 black Price: Call Us |
| 84 |
50180283 |
HH locking nut M18x1 h5 WAF24 Price: Call Us |
| 85 |
50180358 |
Footpart M18x1 h54 natural Price: Call Us |
| 86 |
50180365 |
Bearing bush 14x16/21,8/29x14 Price: Call Us |
| 87 |
50180159 |
Seal ring 22x32x4 Price: Call Us |
| 88 |
50180175 |
Round-wire snap ring 32x1 Price: Call Us |
| 89 |
50180179 |
Ball joint bearing 16x32x21 Price: Call Us |
| 90 |
50180281 |
HH screw M14x9 Price: Call Us |
| 91 |
50180222 |
O-ring 4x1,5 NBR70 Price: Call Us |
| 92 |
50180434 |
Adjustment screw slot Price: Call Us |
| 93 |
48600028 |
Spring (1,7) l7,9 Price: Call Us |
| 94 |
40540603 |
Steel ball d3 Price: Call Us |
