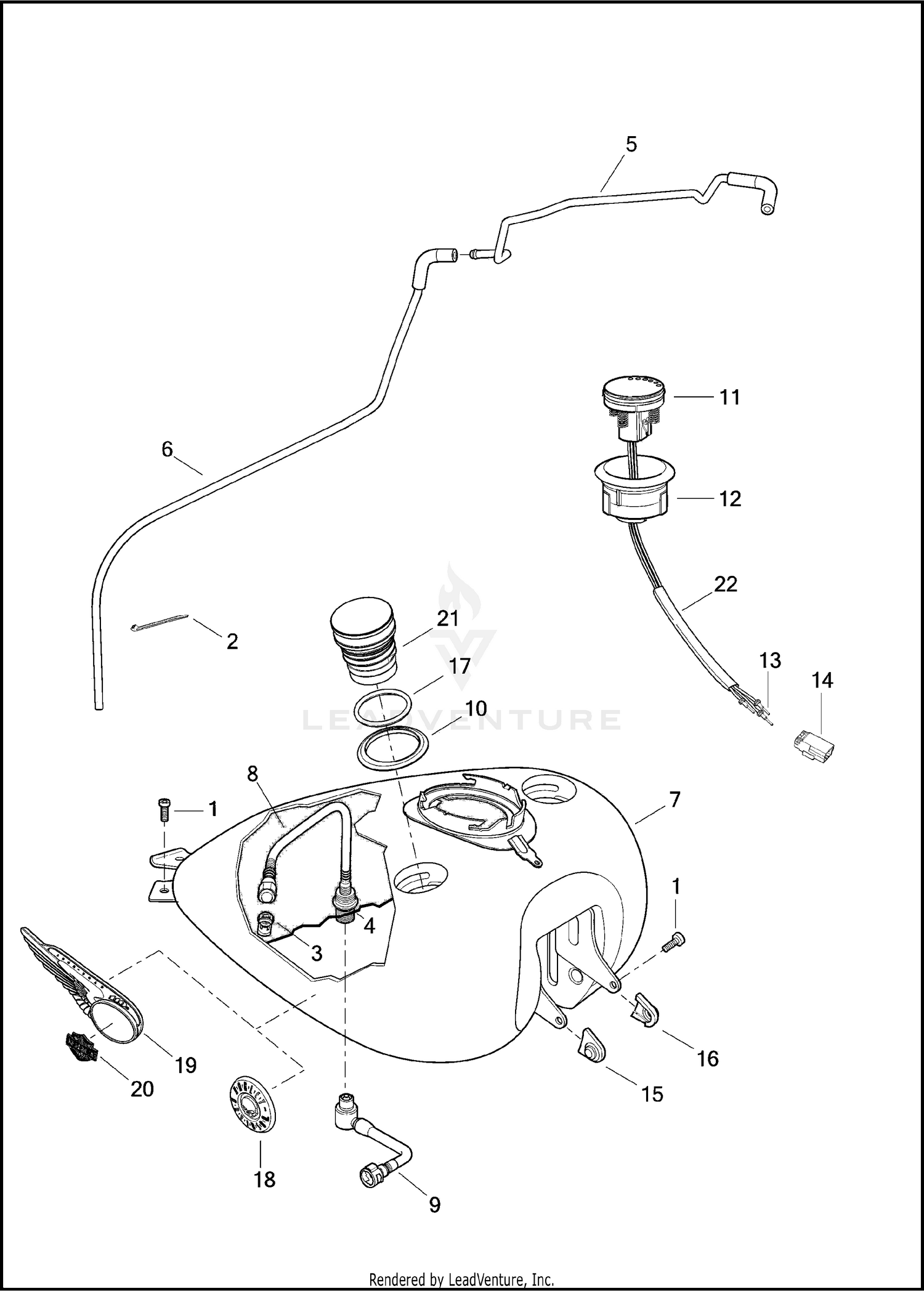

| Ref | Part Number | Description |
|---|
| 1 |
10201381 |
SCREW,HEX,SEMS,SELF-TAP/SPECIAL This part replaces 3634. Price: $1.04 |
| 2 |
10039 |
CABLE STRAP Price: $1.22 |
| 3 |
10396 |
RETAINER FUEL LINE 3/8(NATURAL) Price: $5.30 |
| 4 |
11323A |
O-RING CHECK VALVE TO FUEL TANK This part replaces 11323. Price: $1.17 |
| 5 |
27291-09A |
EVAP LINE TANK (CALIFORNIA, BRAZIL) This part replaces 27291-09. Price: $16.65 |
| 6 |
27440-09A |
TUBE EVAPORATIVE LINE (EXCEPT CALIFORNIA) This part replaces 27440-09. Price: $16.41 |
| 7 |
61000055DRI |
FUEL TANK W/ MEDALLIONS (DIAMOND DUST/OBSIDIAN) Not Available Price: |
| 7 |
61000691 |
TANK,FUEL,WELDMENT,SIDE FILL This part replaces 61268-08. Price: $1,457.99 |
| 8 |
62228-08D |
VALVE,FUEL,ASSY This part replaces 62228-08A. Price: $61.74 |
| 9 |
61208-10 |
FUEL LINE TANK TO INTAKE Price: $104.64 |
| 10 |
63028-06 |
TRIM RING (CHROME) Price: $14.88 |
| 10 |
75015-08 |
TRIM RING (BLACK) Price: $14.37 |
| 11 |
70900040 |
FUEL GAUGE W/ 72990-01 (CHROME) Price: $170.90 |
| 11 |
74782-11 |
FUEL GAUGE W/ 72990-01 (BLACK) Price: $170.90 |
| 12 |
63038-06 |
HOUSING ASSEMBLY (CHROME) Price: $64.47 |
| 12 |
75019-08 |
HOUSING ASSEMBLY (BLACK) Price: $45.48 |
| 13 |
72990-01 |
TERMINAL PIN, 18-22 GAUGE Price: $0.59 |
| 14 |
72904-01BK |
HOUSING PIN, 4-WAY (BLACK) Price: $5.16 |
| 15 |
70999-09 |
BOOT TANK BRACKET, RIGHT Price: $13.19 |
| 16 |
70901-09 |
BOOT TANK BRACKET, LEFT Price: $13.19 |
| 17 |
11900004 |
O-RING FILLER CAP Price: $11.34 |
| 19 |
14100305 |
MEDALLION RIGHT, W/ 14100372 (FOR DIAMOND DUST/OBSIDIAN) Not Available Price: |
| 19 |
14100307 |
MEDALLION LEFT, W/ 14100372 (FOR DIAMOND DUST/OBSIDIAN) Not Available Price: |
| 20 |
14100372 |
MEDALLION (FOR DIAMOND DUST/OBSIDIAN) Not Available Price: |
| 21 |
61100052A |
CAP,FUEL,FLUSH MT,CHROME This part replaces 61100004. Price: $86.11 |
| 21 |
63136-10C |
CAP,FUEL,FLUSH MT,BLK This part replaces 61100005. Price: $86.11 |
