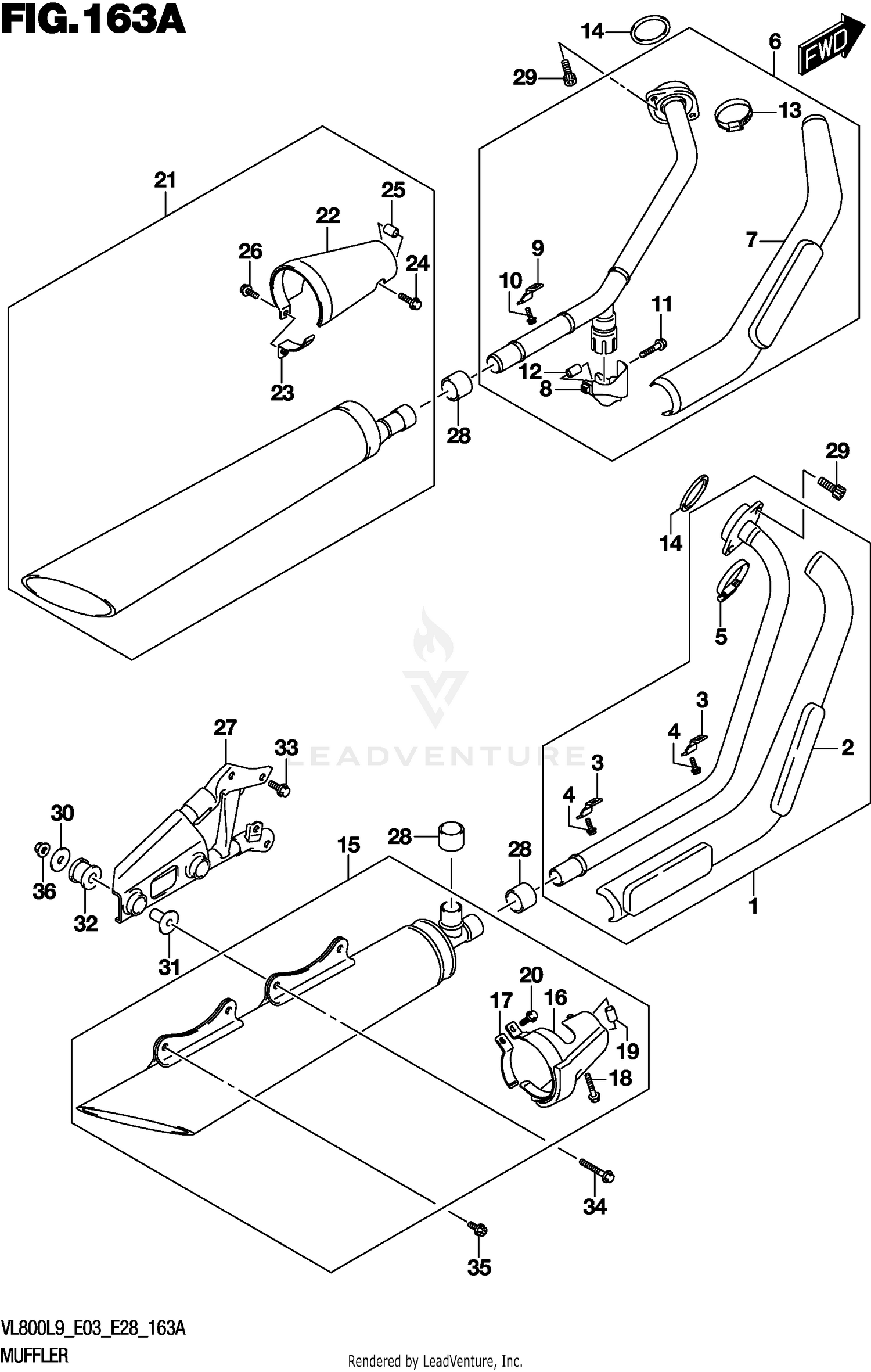

MUFFLER (VL800L9 E03)
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 14150-39G00 | PIPE Price: $691.08 |
| 4 | 07120-0616A | BOLT Price: $3.08 |
| 6 | 14160-39G00 | PIPE,EXH RR Price: $324.74 |
| 10 | 07120-0616A | BOLT Price: $3.08 |
| 15 | 14310-39G00-H01 | MUFFLER Price: $1,142.76 |
| 20 | 07120-0616A | BOLT Price: $3.08 |
| 21 | 14340-39G00-H01 | MUFFLER Price: $973.81 |
| 26 | 07120-0616A | BOLT Price: $3.08 |
| 27 | 14410-39G00 | BRACKET,MUF SPRT Price: $141.40 |
| 28 | 14771-39G00 | CONNECTOR,MUFFLER Price: $29.77 |
| 29 | 09106-08178 | BOLT (8X25) Price: $4.01 |
| 30 | 09160-08146 | WASHER (8.5X33X1.5) Price: $3.02 |
| 31 | 09180-08156 | SPACER (8.6X12X25.5) Price: $8.28 |
| 32 | 09320-12049 | CUSHION Price: $13.00 |
| 33 | 09103-08570 | BOLT (8X16) This part replaces 09103-08283-A05. Price: $2.81 |
| 34 | 01550-0845B | BOLT Price: $4.22 |
| 35 | 09106-08107 | BOLT (8X20) Price: $3.31 |
