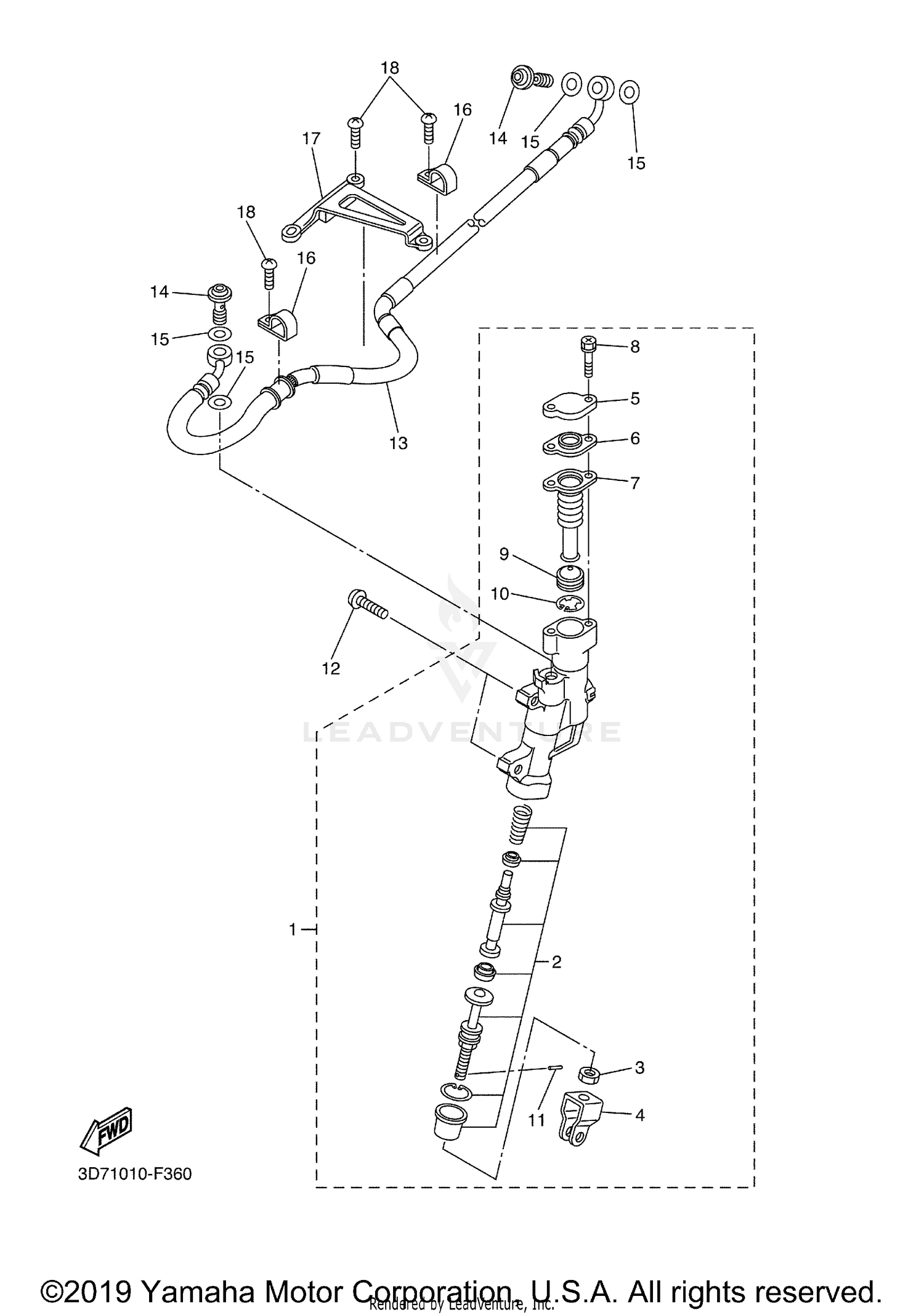

| Ref | Part Number | Description |
|---|
| 1 |
3D7-2583V-00-00 |
REAR MASTER CYLINDER ASSY. Price: $210.99 |
| 2 |
3D7-W0042-00-00 |
CYLINDER KIT, MASTER Price: $59.99 |
| 3 |
3D7-27218-00-00 |
NUT Price: $2.15 |
| 4 |
5UN-27222-00-00 |
JOINT Price: $18.99 |
| 5 |
5UN-25852-50-00 |
CAP, RESERVOIR Price: $18.99 |
| 6 |
5UN-2585B-00-00 |
PLATE, DIAPHRAGM Price: $8.49 |
| 7 |
5UN-25854-00-00 |
DIAPHRAGM, RESERVOIR Price: $15.49 |
| 8 |
5UN-27217-00-00 |
BOLT Price: $5.99 |
| 9 |
5CG-25715-00-00 |
SEPARATOR ASSY Price: $14.49 |
| 10 |
5CG-2585G-00-00 |
CIRCLIP Price: $5.99 |
| 11 |
3KW-27234-00-00 |
PIN, BRAKE ROD Price: $8.49 |
| 12 |
90111-06059-00 |
BOLT, HEX. SOCKET BUTTON This part replaces 90111-06092-00. Price: $5.49 |
| 13 |
3D7-25873-01-00 |
HOSE, BRAKE 2 This part replaces 3D7-25873-00-00. Price: $69.99 |
| 14 |
90401-10172-00 |
BOLT, UNION Price: $6.49 |
| 15 |
90430-10005-00 |
GASKET Price: $9.49 |
| 16 |
3D7-25876-00-00 |
HOLDER, BRAKE HOSE 2 Price: $4.75 |
| 17 |
3D7-25886-00-00 |
HOLDER, BRAKE HOSE Price: $9.99 |
