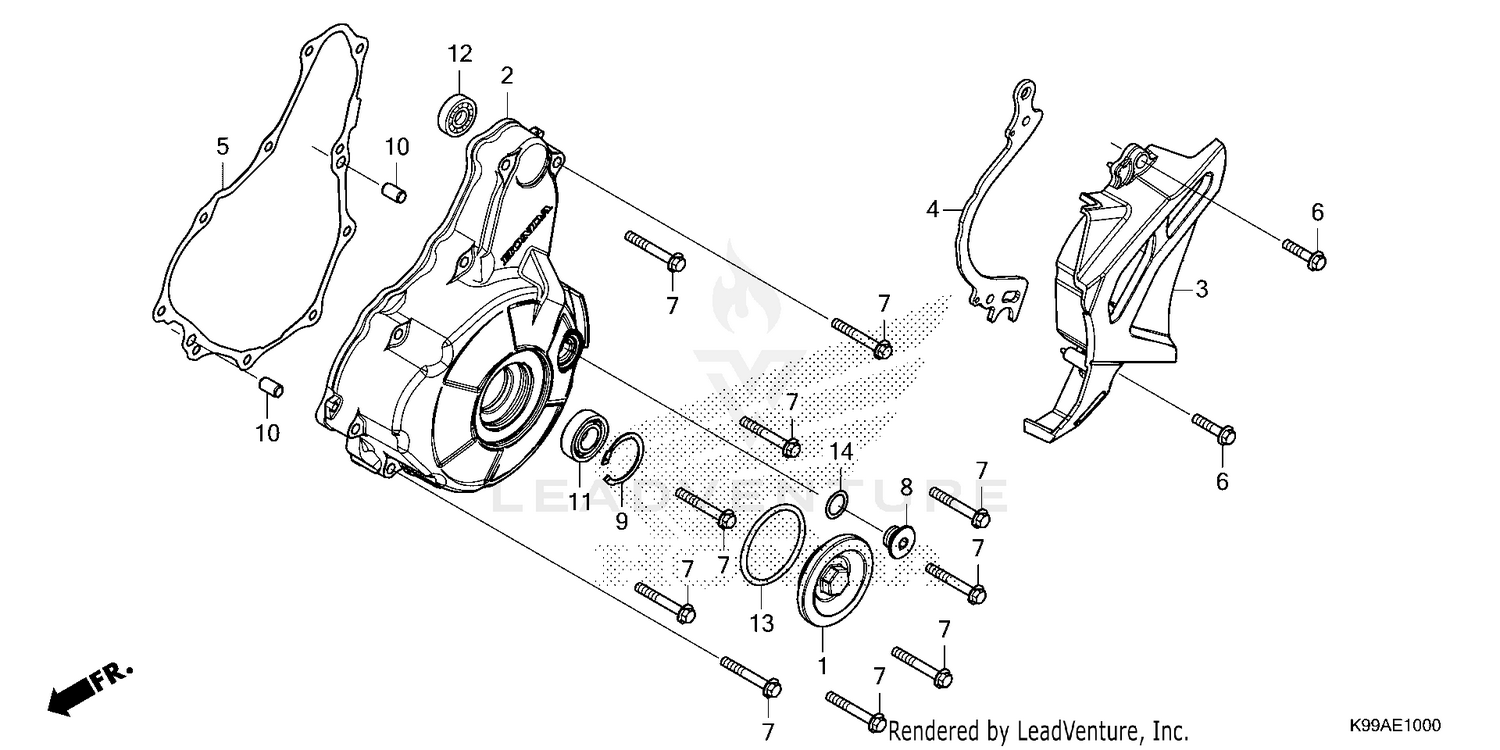

LEFT CRANKCASE COVER
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 11332-K99-A70 | CAP (45MM) Price: $13.20 |
| 2 | 11341-K99-A70 | COVER, L. CRANKCASE Price: $104.82 |
| 3 | 11361-K99-A70 | COVER, L. RR. Price: $57.60 |
| 4 | 11363-K99-A70 | GUIDE, DRIVE CHAIN Price: $7.51 |
| 5 | 11395-K2K-D01 | GASKET, L. CRANKCASE COVER (NOT AVAILABLE) Price: $15.09 |
| 6 | 90004-GHB-670 | BOLT, FLANGE (6X25) (NSHF) Price: $3.47 |
| 7 | 90004-GHB-710 | BOLT, FLANGE (6X40) (NSHF) Price: $5.11 |
| 8 | 90084-KPS-900 | CAP (14MM) Price: $1.96 |
| 9 | 90601-K0L-D00 | CIRCLIP (INNER) (32MM) (NOT AVAILABLE) Price: $2.55 |
| 10 | 90702-KRM-840 | PIN, DOWEL (8X14) Price: $0.76 |
| 11 | 91005-KSE-671 | BEARING, SPECIAL RADIAL BALL (6002) Price: $14.24 |
| 12 | 91011-GCE-D62 | BEARING, RADIAL BALL (6000) (NOT AVAILABLE) Price: $10.78 |
| 13 | 91301-ML7-003 | O-RING (48.1X3.6) (ARAI) Price: $4.93 |
