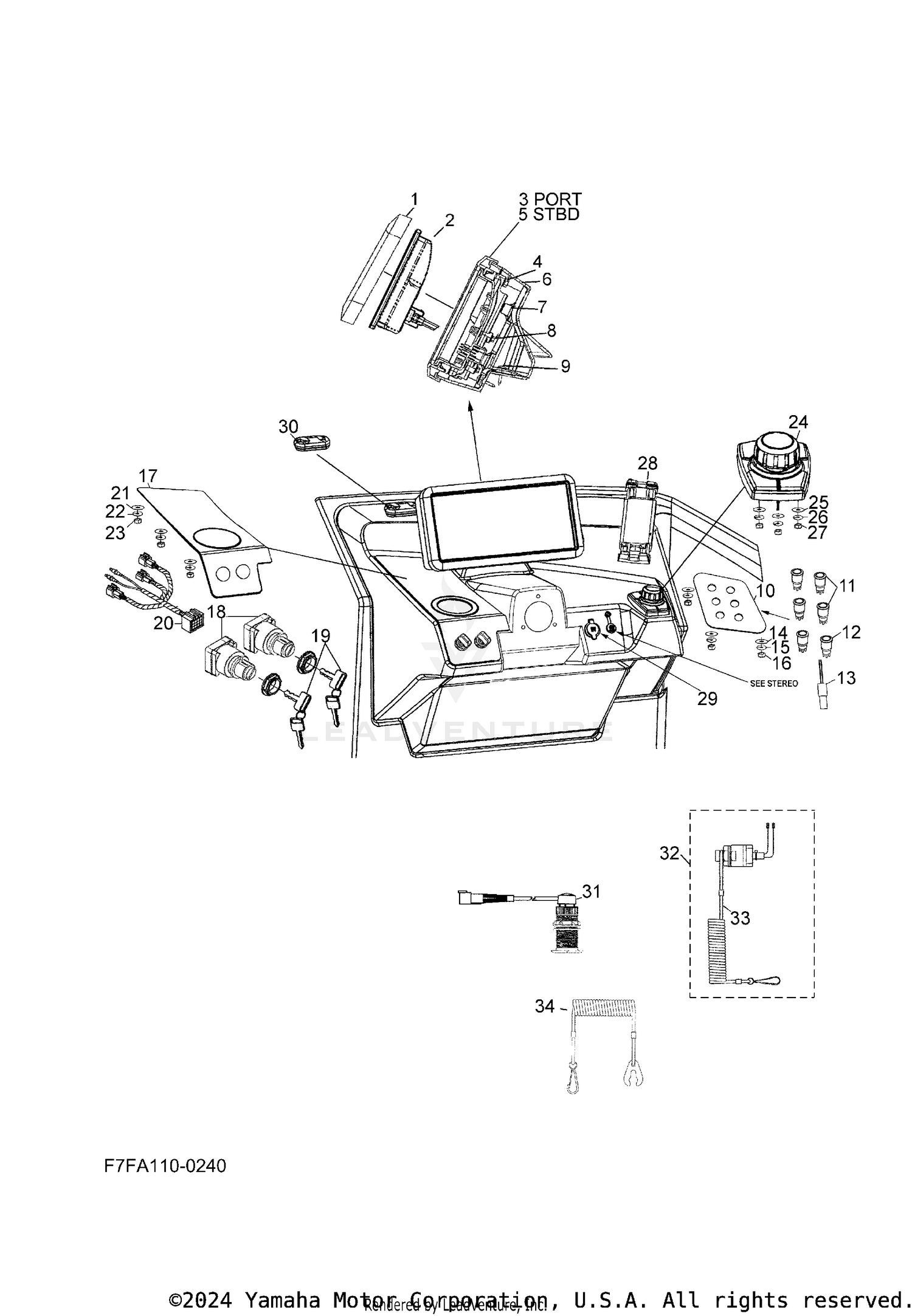

| Ref | Part Number | Description |
|---|
| 1 |
F6D-U15A1-00-00 |
BEZEL ASSY. Price: $44.99 |
| 2 |
F5K-U0870-10-00 |
DISPLAY UNIT Price: $3,830.99 |
| 3 |
F6D-U591F-00-00 |
BRACKET, CASE Price: $18.99 |
| 4 |
F6D-U8K1R-00-00 |
BRACKET, DISPLAY UNIT Price: $39.99 |
| 5 |
F6D-U591F-10-00 |
BRACKET, CASE Price: $13.99 |
| 6 |
90160-12S16-00 |
SCREW, ROUND TAPPING Price: $5.99 |
| 7 |
90105-03S16-00 |
BOLT, FLANGE Price: $1.99 |
| 8 |
95880-06020-00 |
BOLT, FLANGE Price: $5.49 |
| 9 |
95D95-06025-00 |
BOLT, FLANGE DEEP This part replaces 95880-06025-00. Price: $0.95 |
| 10 |
F4Y-U82B5-10-00 |
PANEL, SWITCH 1 Price: $428.99 |
| 11 |
F4X-U2336-01-00 |
SWITCH,FLAP Price: $110.99 |
| 12 |
F4Y-U2336-00-00 |
SWITCH,FLAP Price: $149.99 |
| 13 |
F4Y-U827F-10-00 |
WIRE HARNESS 4 Price: $442.99 |
| 14 |
90209-10SB1-00 |
WASHER Price: $5.99 |
| 15 |
90204-10S00-00 |
WASHER, SPRING Price: $6.99 |
| 16 |
90170-08S00-00 |
NUT, HEX Price: $5.99 |
| 17 |
F4Y-U82B6-00-00 |
PANEL, SIDE 1 Price: $821.99 |
| 18 |
F3A-U8036-00-00 |
KEY SWITCH PACK ASSY Price: $233.99 |
| 19 |
F3A-U8037-00-00 |
KEY SWITCH ASSY Price: $233.99 |
| 20 |
F4Y-U827F-20-00 |
WIRE HARNESS 4 Price: $241.99 |
| 21 |
90209-10SB1-00 |
WASHER Price: $5.99 |
| 22 |
90204-10S00-00 |
WASHER, SPRING Price: $6.99 |
| 23 |
90170-08S00-00 |
NUT, HEX Price: $5.99 |
| 24 |
F4Y-U8313-00-00 |
START BUTTON COMP. Price: $512.99 |
| 25 |
90209-14SA2-00 |
WASHER Price: $1.99 |
| 26 |
90204-14S00-00 |
WASHER, SPRING Price: $5.99 |
| 27 |
95680-06100-00 |
NUT, U Price: $8.70 |
| 28 |
F6D-U827C-10-00 |
HOLDER Price: $78.99 |
| 29 |
F6A-U8284-00-00 |
RECEPTACLE, ACCESSORY Price: $47.99 |
| 30 |
F4Y-U8K1L-01-00 |
ANTENA, GPS Price: $549.99 |
| 31 |
F2D-U8K1W-01-00 |
TRANSDUCER Price: $544.99 |
| 32 |
F2A-6834C-01-00 |
LANYARD,STOP SWITCH Price: $170.49 |
| 33 |
682-82556-00-00 |
LANYARD, STOP SWITCH Price: $8.20 |
