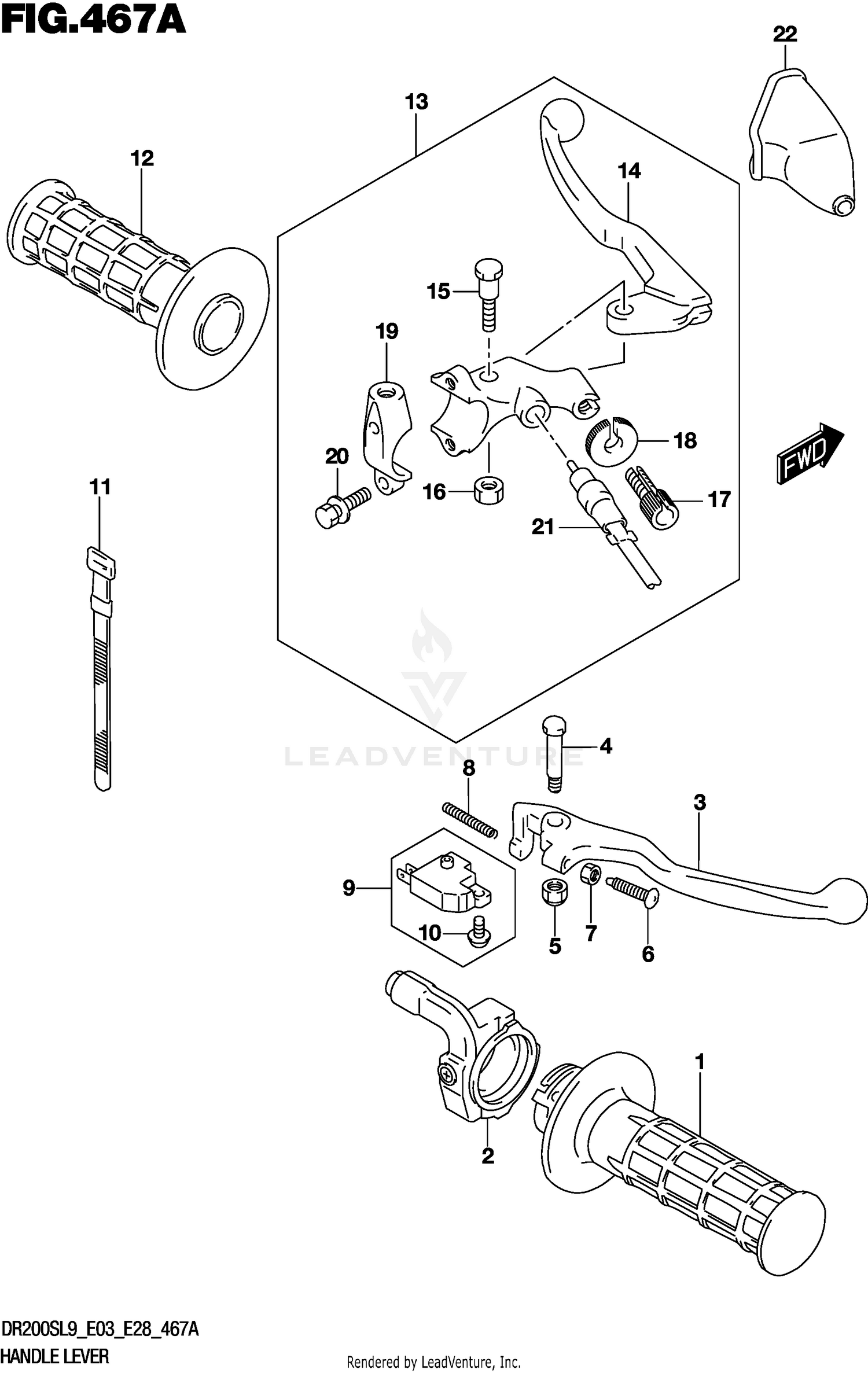

HANDLE LEVER
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 57110-14D00 | GRIP,THROTTLE Price: $39.35 |
| 2 | 57100-13610 | CASE ASSY,THROTTLE Price: $69.23 |
| 3 | 57421-44E00 | LEVER,BRAKE Price: $17.53 |
| 4 | 57431-14500 | BOLT Price: $7.76 |
| 6 | 57431-14511 | BOLT, ADJUST Price: $7.37 |
| 7 | 08310-0005A | NUT Price: $2.22 |
| 8 | 57318-14502 | SPRING Price: $5.53 |
| 9 | 57460-14J02 | SWITCH ASSY,FR BRAKE This part replaces 57460-14J01. Price: $47.51 |
| 11 | 09407-12402 | CLAMP (L:120) Price: $3.70 |
| 12 | 57211-27C00 | GRIP, LH Price: $15.18 |
| 13 | 57500-29F32 | LEVER ASSY CLUTCH This part replaces 57500-29F31. Price: $84.60 |
