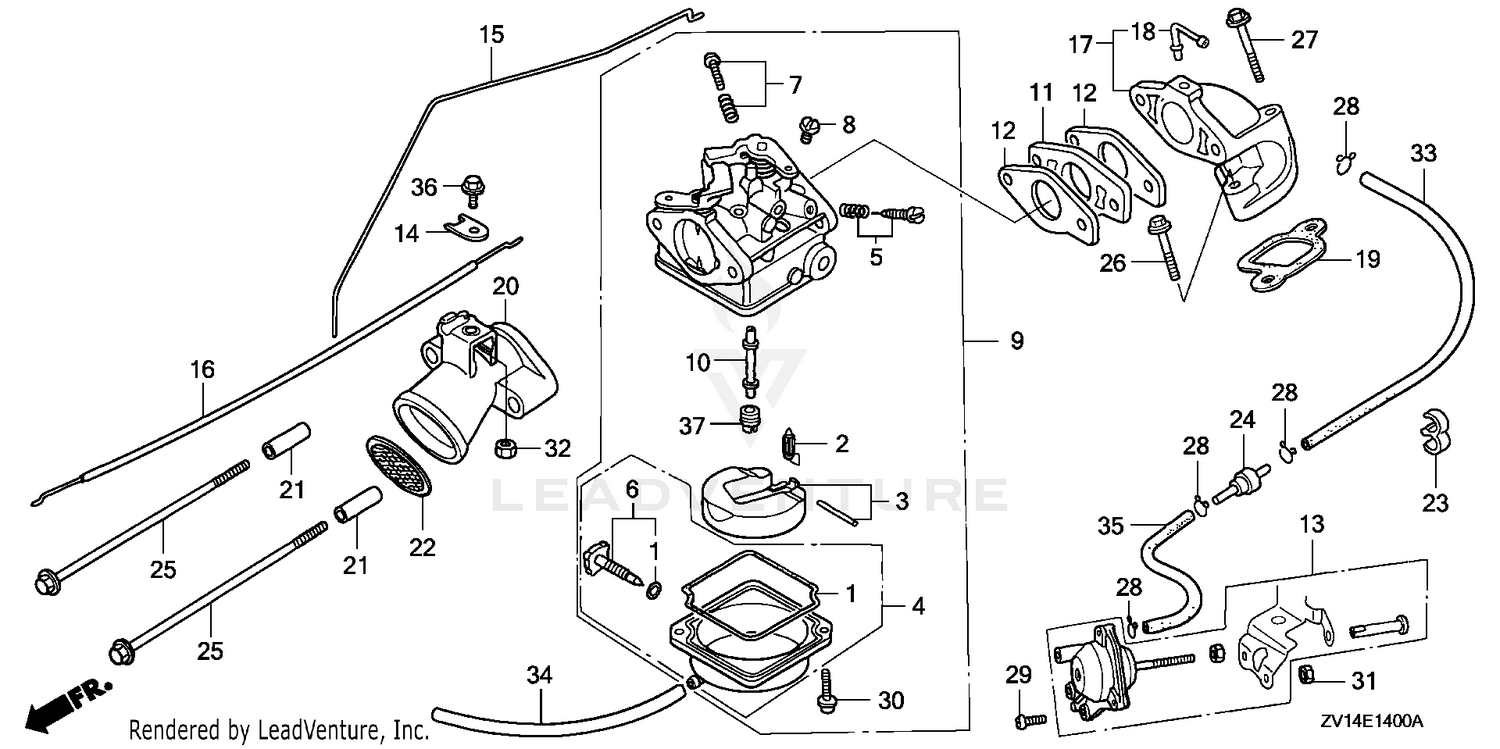

| Ref | Part Number | Description |
|---|
| 2 |
16011-881-741 |
SEE PART DETAILS - PRI; VALVE SET, FLOAT Price: $33.12 |
| 3 |
16013-881-003 |
SEE PART DETAILS - PRI; FLOAT SET Price: $20.98 |
| 4 |
16015-ZVD-701 |
CHAMBER SET, FLOAT Price: $58.74 |
| 6 |
16024-ZV1-A00 |
SEE PART DETAILS - PRI; SCREW SET, DRAIN Price: $10.30 |
| 7 |
16028-ZV1-A00 |
SEE PART DETAILS - PRI; SCREW SET Price: $8.42 |
| 8 |
99103-881-0400 |
JET (#40) Price: $15.64 |
| 9 |
16100-ZV1-A03 |
SEE PART DETAILS - PRI; CARBURETOR ASSY. (BC05B C) This part replaces 16100-ZV1-A02. Price: $161.48 |
| 10 |
16166-ZV1-A00 |
NOZZLE, MAIN Price: $17.90 |
| 11 |
16211-ZV1-000 |
INSULATOR, CARBURETOR Price: $7.94 |
| 12 |
16221-ZV1-850 |
GASKET, CARBURETOR Price: $2.56 |
| 14 |
16576-ZV0-000 |
HOLDER, CABLE (NOT AVAILABLE) Price: $4.08 |
| 15 |
16593-ZV1-000 |
ROD, THROTTLE Price: $13.42 |
| 16 |
16620-ZVD-000 |
CABLE, CHOKE Price: $8.62 |
| 19 |
17151-ZV1-850 |
GASKET, IN. MANIFOLD Price: $2.28 |
| 21 |
17202-ZV1-010 |
SEE PART DETAILS - PRI; COLLAR, DISTANCE This part replaces 17202-ZV1-000. Price: $4.34 |
| 25 |
90012-ZV1-010 |
BOLT, FLANGE (6X102) Price: $3.94 |
| 26 |
90015-ZV0-000 |
BOLT, FLANGE (6X28) (CT200) Price: $3.62 |
| 27 |
90125-ZV1-010 |
BOLT, FLANGE (6X42) Price: $2.56 |
| 30 |
16081-ZV1-A00 |
SCREW, PAN Price: $2.38 |
| 32 |
94001-06020-0S |
SEE PART DETAILS - PRI; NUT, HEX. (6MM) Price: $1.72 |
| 36 |
95701-06012-00 |
SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use up to Engine SN 1543277. Price: $2.04 |
| 37 |
99101-ZF5-0750 |
SEE PART DETAILS - SUP; JET, MAIN (#75) Price: $9.78 |
| 37 |
99101-ZH7-0750 |
SEE PART DETAILS - PRI; JET, MAIN (#75) (CARBURETOR NO.) Price: $9.78 |
