Parts Catalog

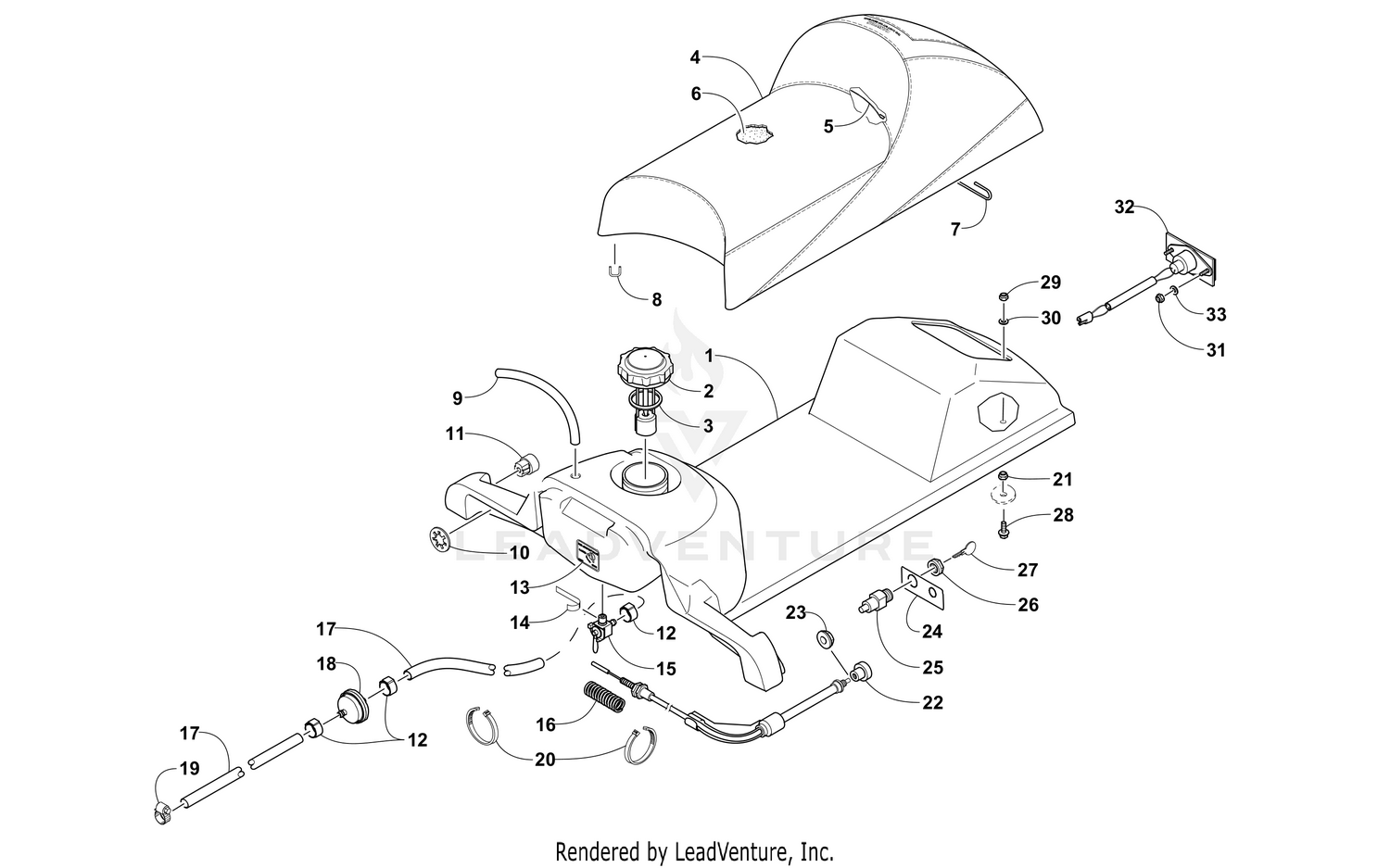

GAS TANK, SEAT, AND TAILLIGHT ASSEMBLY [110702]

Parts (28)

Ref	Part Number	Description
1	2670-719	Tank, Gas/Seat-Base Price: $561.95
3	0109-733	Seal, Gas Cap Price: $3.67
5	5606-156	Wire, Seat Price: $5.46
6	1706-017	Foam, Seat Price: $109.95
7	2606-942	Wire, Seat Price: $2.85
8	0624-528	Staple Price: $169.95
9	0610-960	Hose Price: $17.80
10	2623-348	Ring, Retaining Price: $0.92
11	0608-791	Bushing Price: $14.23
12	0610-415	CLAMP,HOSE-10.8 MM TO 13.3 MM Price: $3.92
13	3611-856	Decal, Shut-Off Valve Price: $13.18
14	0670-289	Tape, Teflon Price: $7.81
15	2670-064	Valve, Shut-Off - Gas Tank Price: $62.95
16	2670-144	Spring Price: $9.47
17	0410-143	Hose - 25 ft Price: $248.95
18	2670-543	Filter, Fuel Price: $19.00
19	0623-373	Clamp, Hose Price: $3.08
20	0123-788	Tie, Cable - 8 in Price: $0.23
21	8041-366	Nut, Lock Price: $0.35
23	0687-181	Nut Price: $1.77
24	4611-767	Decal, Switch/Choke Price: $9.67
26	0609-111	Nut, Retaining Price: $2.49
27	0116-065	Key Price: $9.64
28	8020-041	Screw, Cap Price: $8.27
29	0123-108	Nut, Cap Price: $1.41
30	8450-109	Washer Price: $0.70
31	8427-502	Nut, Lock Price: $1.07
32	0609-934	Taillight Assembly Price: $56.95
