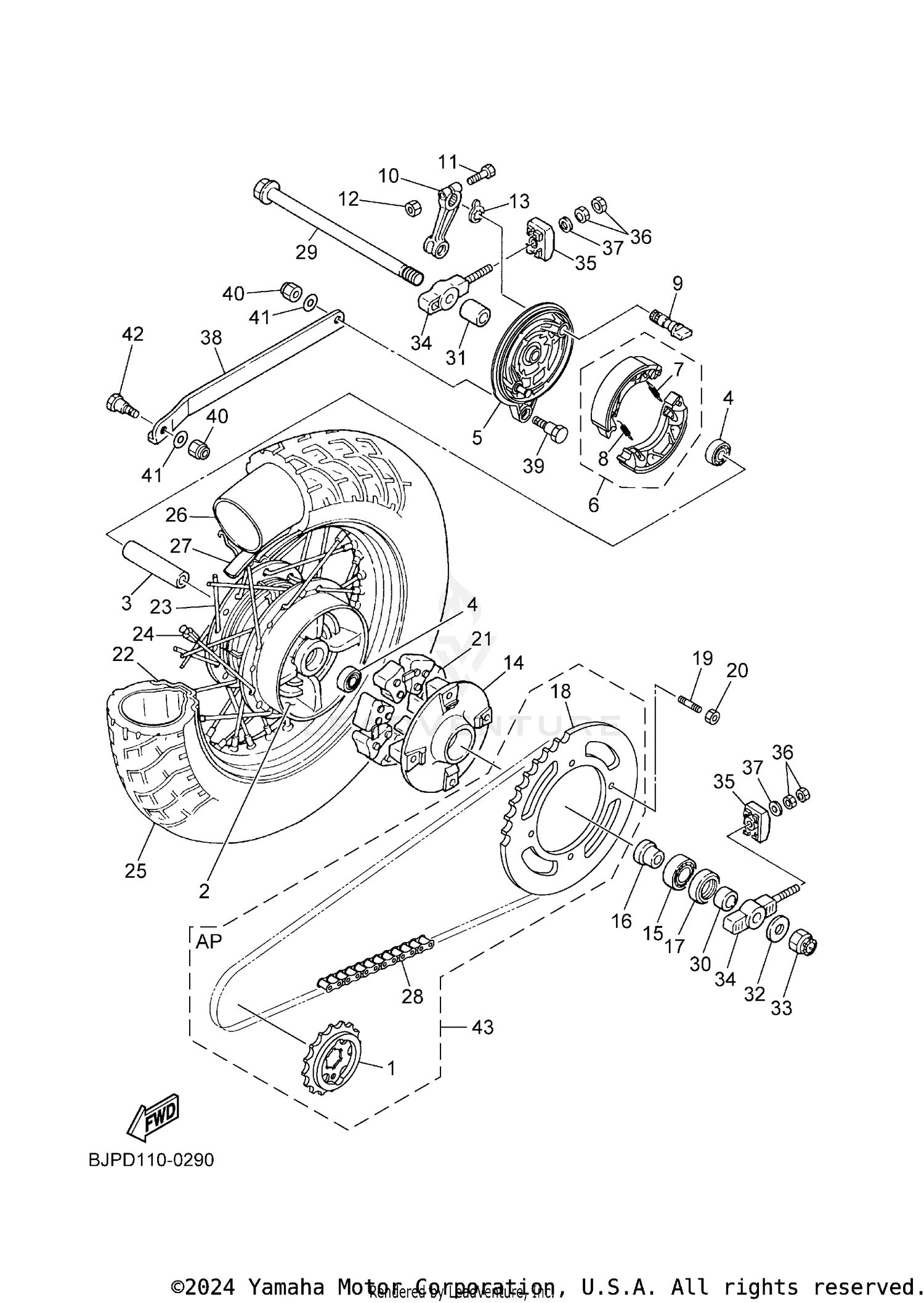

| Ref | Part Number | Description |
|---|
| 1 |
93834-16100-00 |
SPROCKET, DRIVE 16T (3Y11746160 Price: $21.99 |
| 2 |
2UJ-25311-10-00 |
HUB, REAR Price: $211.99 |
| 3 |
2UJ-25317-00-00 |
SPACER, BEARING Price: $11.49 |
| 4 |
93306-20226-00 |
BEARING This part replaces 93306-20212-00. Price: $42.99 |
| 5 |
2RH-25321-11-00 |
PLATE, BRAKE SHOE Price: $106.99 |
| 6 |
19D-W253E-00-00 |
BRAKE SHOE KIT Price: $52.99 |
| 7 |
90506-12001-00 |
SPRING, TENSION Price: $10.49 |
| 8 |
90506-15001-00 |
SPRING, TENSION Price: $6.49 |
| 9 |
2RH-25351-00-00 |
CAMSHAFT Price: $37.99 |
| 10 |
5H0-25355-00-00 |
LEVER, CAMSHAFT Price: $41.99 |
| 11 |
90101-06278-00 |
BOLT This part replaces 90101-06765-00. Price: $2.60 |
| 12 |
95314-06600-00 |
NUT This part replaces 95304-06600-00. Price: $2.50 |
| 13 |
3Y6-2533A-01-00 |
PLATE, INDICATOR Price: $6.49 |
| 14 |
5Y1-25366-10-00 |
CLUTCH, HUB Price: $131.99 |
| 15 |
93306-30437-00 |
BEARING Price: $72.99 |
| 16 |
2UJ-25377-00-00 |
COLLAR, WHEEL Price: $41.99 |
| 17 |
93106-30029-00 |
OIL SEAL Price: $17.49 |
| 18 |
4DN-25445-30-00 |
SPROCKET, DRIVEN (45T) Price: $50.99 |
| 19 |
90116-10485-00 |
BOLT, STUD Price: $10.49 |
| 20 |
90185-10170-00 |
NUT, SELF-LOCKING This part replaces 95604-10200-00. Price: $10.49 |
| 21 |
5Y1-25364-00-00 |
DAMPER Price: $30.99 |
| 22 |
94427-15600-00 |
RIM (MT2.75-15 M/C) Price: $293.99 |
| 23 |
2UJ-25304-02-00 |
SPOKE SET, REAR Price: $88.99 |
| 28 |
9Y581-92113-00 |
CHAIN (DID520DMA2 SDH 114LL) This part replaces 94581-11114-00. Price: $116.99 |
| 29 |
2UJ-25381-00-00 |
AXLE, WHEEL This part replaces 4HC-25181-00-00. Price: $45.99 |
| 30 |
90387-15004-00 |
COLLAR Price: $15.49 |
| 31 |
90387-153U1-00 |
COLLAR Price: $10.49 |
| 32 |
92990-14200-00 |
WASHER, PLAIN This part replaces 92903-14200-00. Price: $2.65 |
| 33 |
90185-14002-00 |
NUT, SELF-LOCKING Price: $12.49 |
| 34 |
2UJ-25388-00-00 |
PULLER, CHAIN 1 Price: $42.99 |
| 35 |
55K-2539F-00-00 |
PLATE 1 Price: $32.99 |
| 36 |
95304-08600-00 |
NUT Price: $9.49 |
| 37 |
92990-08600-00 |
WASHER, PLATE This part replaces 92903-08600-00. Price: $2.70 |
| 38 |
2UJ-25371-00-00 |
BAR, TENSION Price: $17.99 |
| 39 |
90109-08005-00 |
BOLT Price: $6.49 |
| 40 |
95617-08100-00 |
NUT, U This part replaces 95607-08100-00. Price: $10.49 |
| 41 |
92907-08600-00 |
WASHER, PLATE Price: $3.25 |
| 42 |
90109-08003-00 |
BOLT Price: $6.49 |
