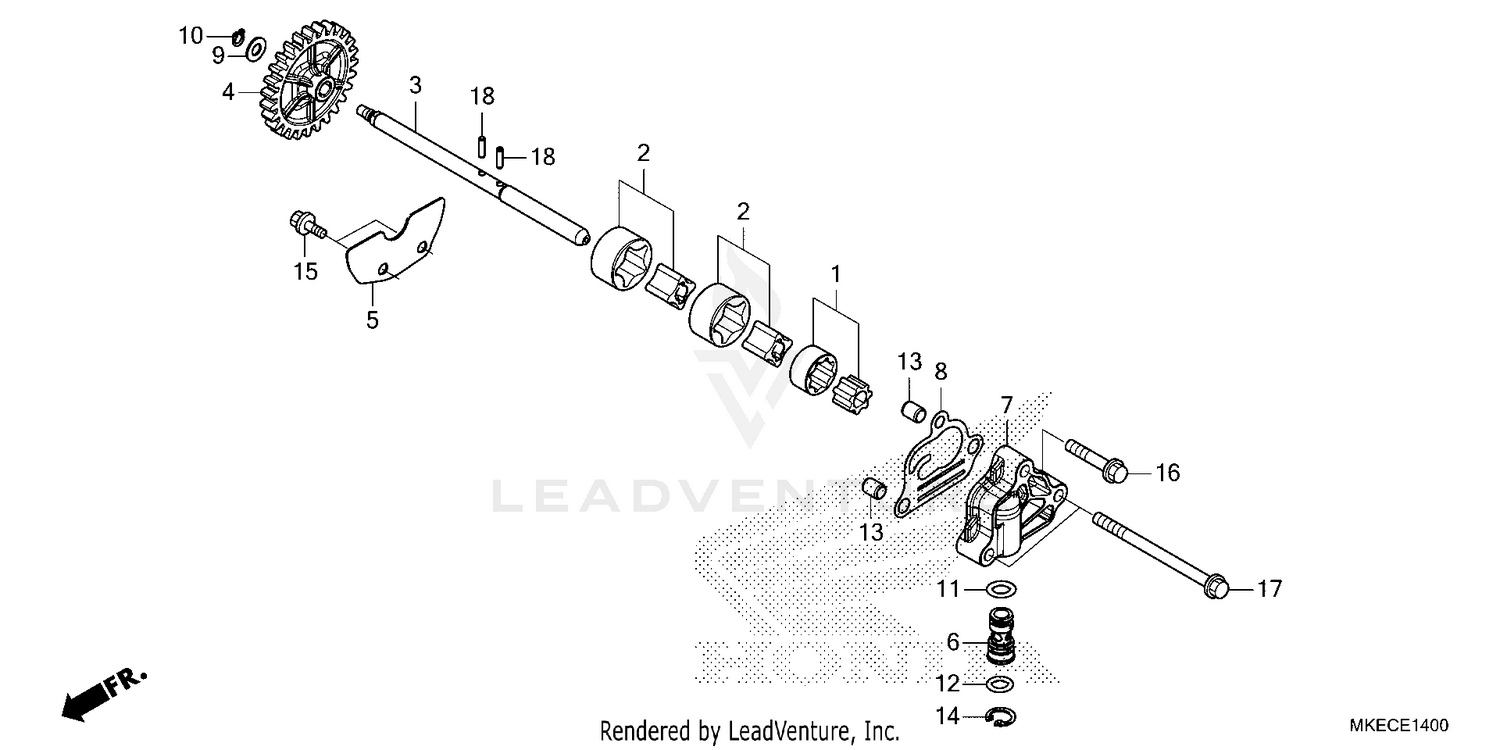

| Ref | Part Number | Description |
|---|
| 1 |
15021-958-000 |
ROTOR SET, OIL PUMP Price: $42.73 |
| 2 |
15021-MKE-A70 |
ROTOR SET, OIL PUMP Price: $29.02 |
| 3 |
15111-MKE-A70 |
SHAFT, OIL PUMP Price: $78.40 |
| 4 |
15130-MKE-A00 |
GEAR, OIL PUMP DRIVEN (27T) Price: $65.64 |
| 5 |
15202-MKE-A00 |
GUIDE PLATE, OIL PUMP GEAR Price: $4.00 |
| 6 |
15220-MKE-AA0 |
VALVE ASSY., RELIEF Price: $44.51 |
| 7 |
15310-MKE-A00 |
COVER, OIL PUMP Price: $78.51 |
| 8 |
15351-MKE-A01 |
GASKET, OIL PUMP COVER Price: $1.35 |
| 9 |
90443-MEL-000 |
WASHER (6MM) Price: $2.73 |
| 10 |
90603-MKE-A00 |
CIRCLIP (6MM) Price: $2.18 |
| 11 |
90751-GK1-003 |
O-RING (8.5X1.7) Price: $3.09 |
| 12 |
91305-PE2-003 |
O-RING (9.8X1.9) (Honda Code 1869478) Price: $2.77 |
| 13 |
94301-08100 |
PIN A, DOWEL (8X10) Price: $2.35 |
| 14 |
94520-14000 |
CIRCLIP (INNER) (14MM) Price: $1.05 |
| 15 |
95701-06012-00 |
BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12) Price: $1.70 |
| 16 |
95701-06030-00 |
BOLT, FLANGE (6X30) Price: $1.97 |
| 17 |
95701-06085-00 |
BOLT, FLANGE (6X85) (Honda Code 2545317) Price: $1.96 |
