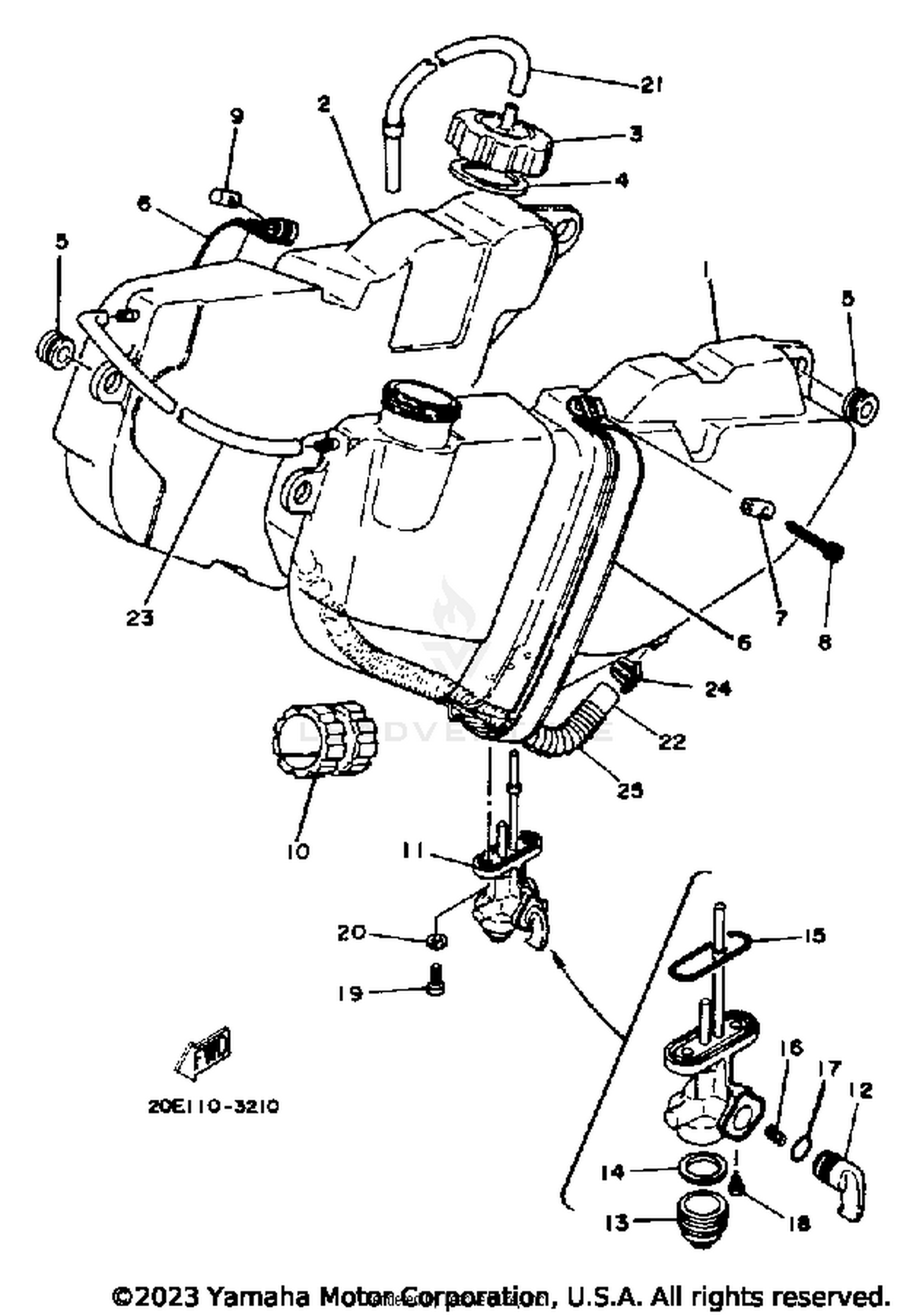

| Ref | Part Number | Description |
|---|
| 1 |
5V7-24111-00-00 |
FUEL TANK Price: $44.53 |
| 2 |
5V7-24211-00-00 |
FUEL TANK Price: $37.80 |
| 3 |
1W1-24611-00-00 |
BODY, CAP Price: $29.99 |
| 4 |
1W1-24612-00-00 |
GASKET, CAP Price: $10.99 |
| 5 |
90480-15064-00 |
GROMMET Price: $10.49 |
| 6 |
5V7-24199-00-00 |
BAND,TNK FITTING 2 Price: $23.99 |
| 7 |
806-24135-00-00 |
CLAMP 1 Price: $3.80 |
| 8 |
90149-05006-00 |
SCREW, SPEC''L SHAPE (821-24176 Price: $1.90 |
| 9 |
90179-05030-00 |
NUT, SPEC''L SHAPE (806-24146-0 Price: $3.45 |
| 10 |
3X3-24181-00-00 |
DAMPER, LOCATING 1 Price: $7.99 |
| 11 |
3X3-24500-00-00 |
FUEL COCK ASSEMBLY 1 Price: $85.99 |
| 12 |
1A0-24524-01-00 |
LEVER, COCK Price: $11.49 |
| 13 |
1A0-24521-01-00 |
CUP, FILTER Price: $28.99 |
| 14 |
498-24522-00-00 |
GASKET Price: $43.99 |
| 15 |
214-24512-00-00 |
GASKET Price: $33.99 |
| 16 |
1A0-24529-01-00 |
SPRING Price: $7.49 |
| 17 |
1A0-24512-00-00 |
GASKET Price: $8.49 |
| 18 |
619-24535-00-00 |
SCREW, LEVER FITTING Price: $2.25 |
| 19 |
90149-06011-00 |
SCREW Price: $2.05 |
| 20 |
90202-05187-00 |
WASHER, PLATE Price: $1.70 |
| 21 |
90445-09361-00 |
HOSE (L540) This part replaces 90445-09238-00. Price: $17.99 |
| 22 |
90445-16416-00 |
HOSE This part replaces 90445-16594-00. Price: $9.99 |
| 23 |
90445-09222-00 |
HOSE Price: $3.95 |
| 24 |
90468-08104-00 |
CLIP Price: $4.25 |
