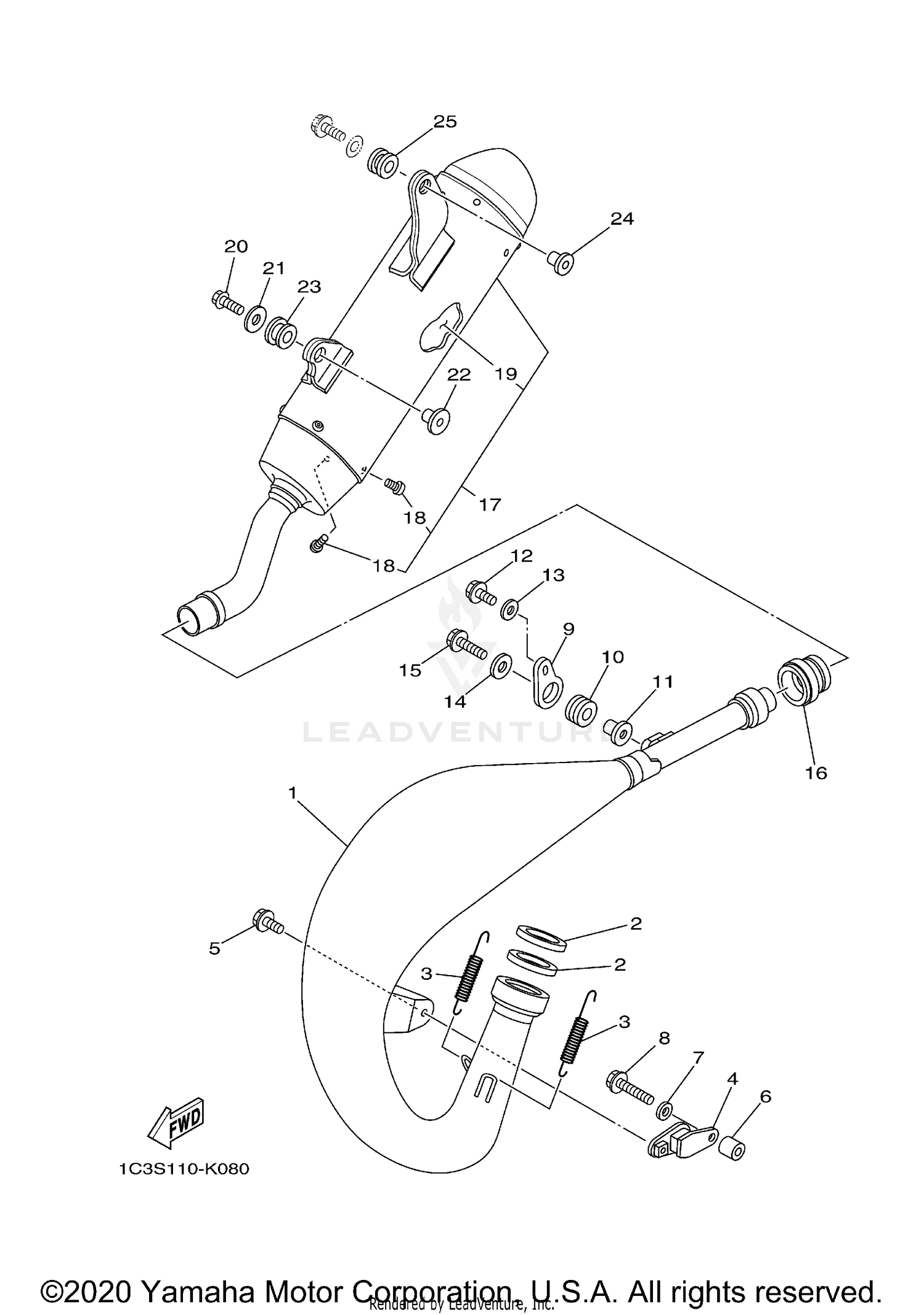

| Ref | Part Number | Description |
|---|
| 1 |
1C3-14610-00-00 |
EXHAUST PIPE ASSY 1 Price: $316.99 |
| 2 |
5MV-14642-00-00 |
SEAL, EXHAUST Price: $22.99 |
| 3 |
90506-20018-00 |
SPRING, TENSION Price: $10.49 |
| 4 |
565-14771-01-00 |
STAY, MUFFLER 1 This part replaces 565-14771-00-00. Price: $19.99 |
| 5 |
95022-06012-00 |
BOLT, FLANGE Price: $3.55 |
| 6 |
1C3-14763-00-00 |
SPACER Price: $7.49 |
| 7 |
90201-06077-00 |
WASHER, PLATE Price: $6.49 |
| 8 |
95022-06025-00 |
BOLT, FLANGE Price: $1.90 |
| 9 |
5CU-14771-01-00 |
STAY, MUFFLER 1 Price: $36.99 |
| 10 |
90480-16561-00 |
GROMMET Price: $18.49 |
| 11 |
90387-063G3-00 |
COLLAR Price: $9.49 |
| 12 |
95022-06014-00 |
BOLT, FLANGE Price: $3.40 |
| 13 |
90201-06078-00 |
WASHER, PLATE Price: $6.49 |
| 14 |
90201-06033-00 |
WASHER, PLATE Price: $3.20 |
| 15 |
95022-06025-00 |
BOLT, FLANGE Price: $1.90 |
| 16 |
4JY-14615-00-00 |
JOINT, EXHAUST 1 Price: $66.99 |
| 17 |
1C3-14753-00-00 |
SILENCER, EXHAUST Price: $466.99 |
| 18 |
92012-06010-00 |
BOLT, BUTTON HEAD Price: $4.65 |
| 19 |
1C3-1469A-00-00 |
FIBER Price: $168.99 |
| 20 |
95022-06030-00 |
BOLT, FLANGE Price: $1.80 |
| 21 |
90201-06086-00 |
WASHER, PLATE Price: $8.49 |
| 22 |
90387-06121-00 |
COLLAR Price: $10.49 |
| 23 |
90480-17004-00 |
GROMMET Price: $9.49 |
| 24 |
90387-06039-00 |
COLLAR Price: $9.49 |
