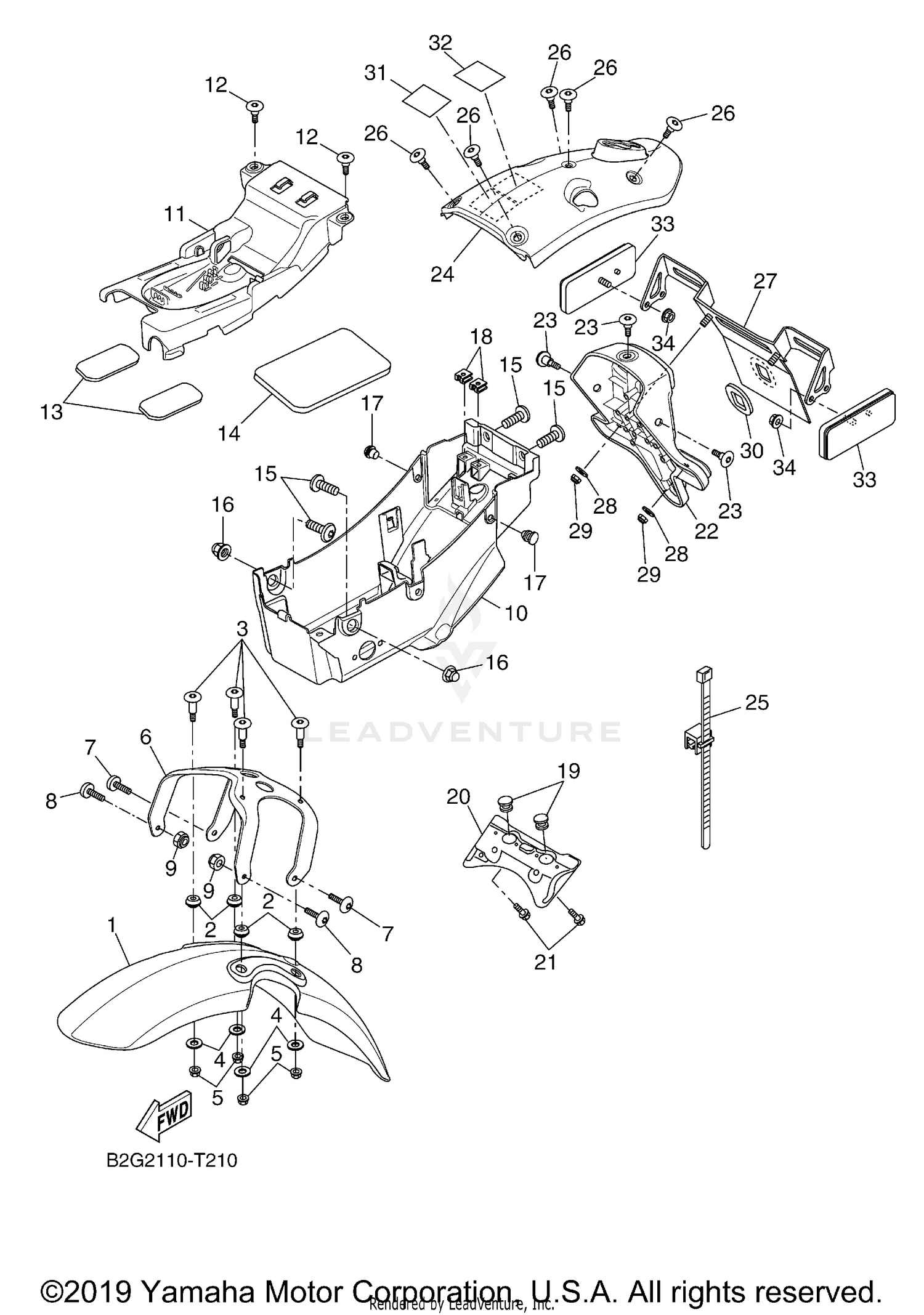

| Ref | Part Number | Description |
|---|
| 2 |
B2G-21544-00-00 |
COLLAR 1 Price: $6.49 |
| 3 |
90111-06123-00 |
BOLT, HEX. SOCKET BUTTON Price: $3.95 |
| 4 |
90201-06072-00 |
WASHER, PLATE Price: $10.49 |
| 5 |
95604-06200-00 |
NUT, U FLANGE Price: $2.95 |
| 6 |
B34-F1512-00-00 |
BRACKET, FENDER Price: $227.99 |
| 7 |
90111-06038-00 |
BOLT, HEXAGON SOCKET BUTTON Price: $4.65 |
| 8 |
90149-06302-00 |
SCREW Price: $6.49 |
| 9 |
90185-06M07-00 |
NUT, SELF-LOCKING Price: $3.15 |
| 10 |
B34-H212B-00-00 |
BOX, BATTERY 1 Price: $82.99 |
| 11 |
B34-H2129-01-00 |
COVER, BATTERY This part replaces B34-H2129-00-00. Price: $98.99 |
| 12 |
90111-05011-00 |
BOLT, HEX. SOCKET BUTTON Price: $6.49 |
| 13 |
B2G-21649-00-00 |
DAMPER Price: $5.49 |
| 14 |
1WS-21639-00-00 |
DAMPER 2 Price: $7.49 |
| 15 |
90109-06325-00 |
BOLT This part replaces 90109-06323-00. Price: $1.85 |
| 16 |
90176-06008-00 |
NUT, CROWN Price: $2.85 |
| 17 |
90338-07180-00 |
PLUG This part replaces 90338-06018-00. Price: $8.49 |
| 18 |
90183-04039-00 |
NUT, spring Price: $8.49 |
| 19 |
90480-14100-00 |
GROMMET Price: $9.49 |
| 20 |
1WS-21642-01-00 |
GUARD, FLAP This part replaces 1WS-21642-00-00. Price: $5.99 |
| 21 |
90269-06002-00 |
RIVET Price: $9.49 |
| 22 |
B34-F1685-00-00 |
BRACKET, LICENSE Price: $147.99 |
| 23 |
90111-05011-00 |
BOLT, HEX. SOCKET BUTTON Price: $6.49 |
| 25 |
90464-45005-00 |
CLAMP Price: $3.95 |
| 26 |
90111-05011-00 |
BOLT, HEX. SOCKET BUTTON Price: $6.49 |
| 27 |
B2G-84751-00-00 |
BRACKET, LICENSE Price: $47.99 |
| 28 |
92990-06600-00 |
WASHER, PLATE This part replaces 92902-06600-00. Price: $2.85 |
| 29 |
95617-06100-00 |
NUT, U This part replaces 95602-06100-00. Price: $2.90 |
| 30 |
B2G-21639-00-00 |
DAMPER 2 Price: $6.49 |
| 31 |
34B-21684-00-00 |
PLATE, ROUTING Price: $7.49 |
| 32 |
4B5-21686-01-00 |
PLATE, ROUTING 2 This part replaces 4B5-21686-00-00. Price: $6.49 |
| 33 |
3Y6-85130-02-00 |
REAR REFLECTOR ASSY Price: $30.99 |
