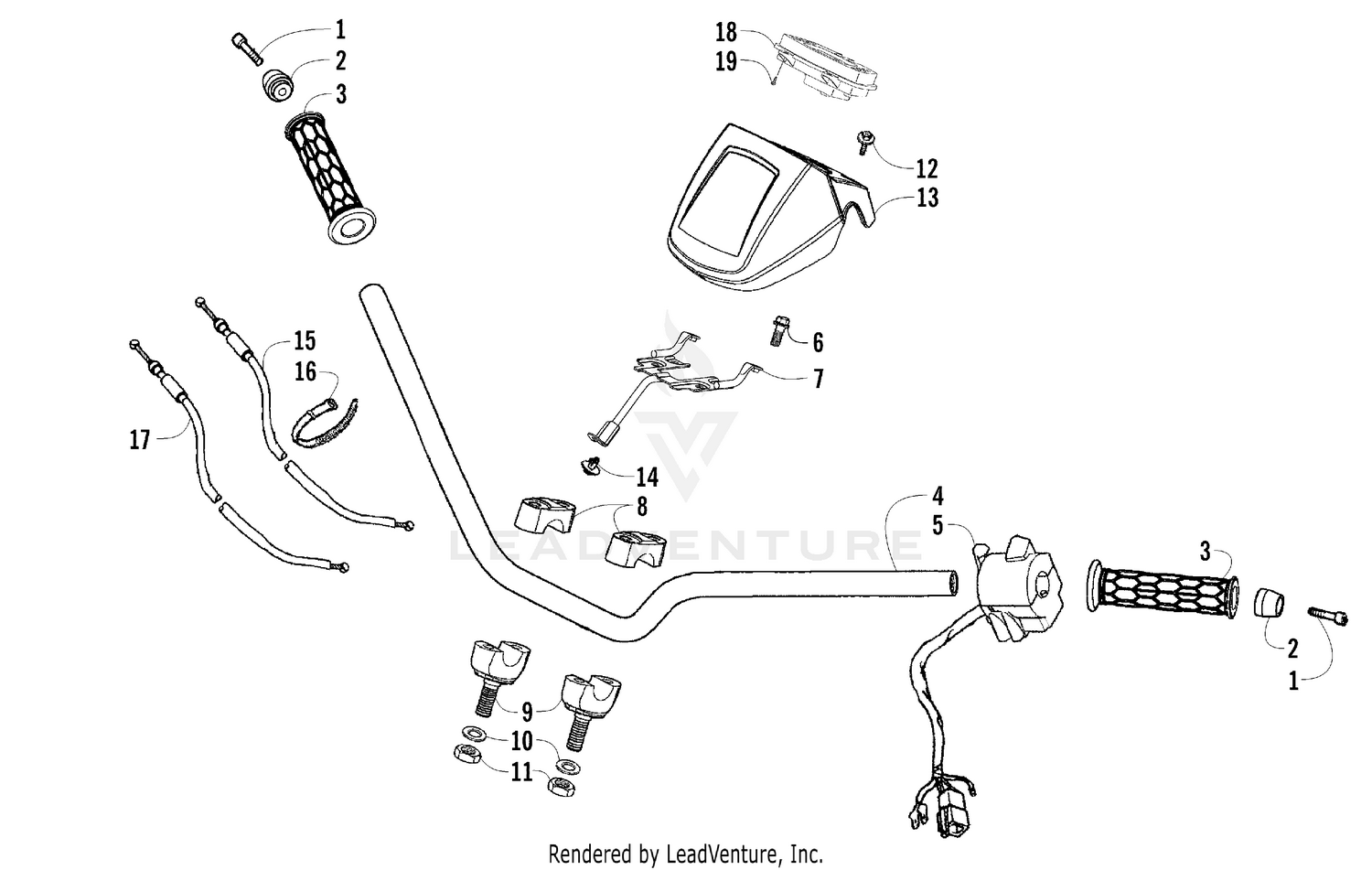

HANDLEBAR AND CONTROLS ASSEMBLY [94247]

Parts (19)

Ref	Part Number	Description
1	3304-016	BOLT WASHER 8MM Price: $5.18
2	3305-541	END STRG HNDL Price: $23.53
3	3305-905	GRIP,HANDLE-4040 SPEC Price: $14.25
4	3305-714	HANDLE PIPE STRG-BLACK Price: $90.95
5	3303-852	SW ASSY LH HANDLE COMP Price: $156.95
6	3305-400	BOLT WASHER 8*35 Price: $1.41
7	3305-715	STAY HANDLE COVER Price: $30.95
8	3303-954	HOLDER HANDLE PIPE Price: $12.51
9	3303-955	HOLDER UNDER HNDL PIPE Price: $40.95
10	3304-136	WASHER PLAIN 10MM Price: $0.93
11	3306-189	NUT HEX 10MM Price: $2.98
12	3304-029	BOLT WASH 5*16 Price: $0.85
13	3306-199	COVER HANDLE (BLACK) Price: $30.95
14	3303-592	CLIP MUDGUARD Price: $2.42
15	3305-072	CABLE COMP THROT Price: $23.53
16	3303-289	BAND OIL HANDLE Price: $0.89
16	3303-839	BAND WIRE HARNESS B1 Price: $2.65
17	3303-723	CABLE COMP CHOKE Price: $21.39
18	3305-923	METER ASSY SPEED Price: $339.95
