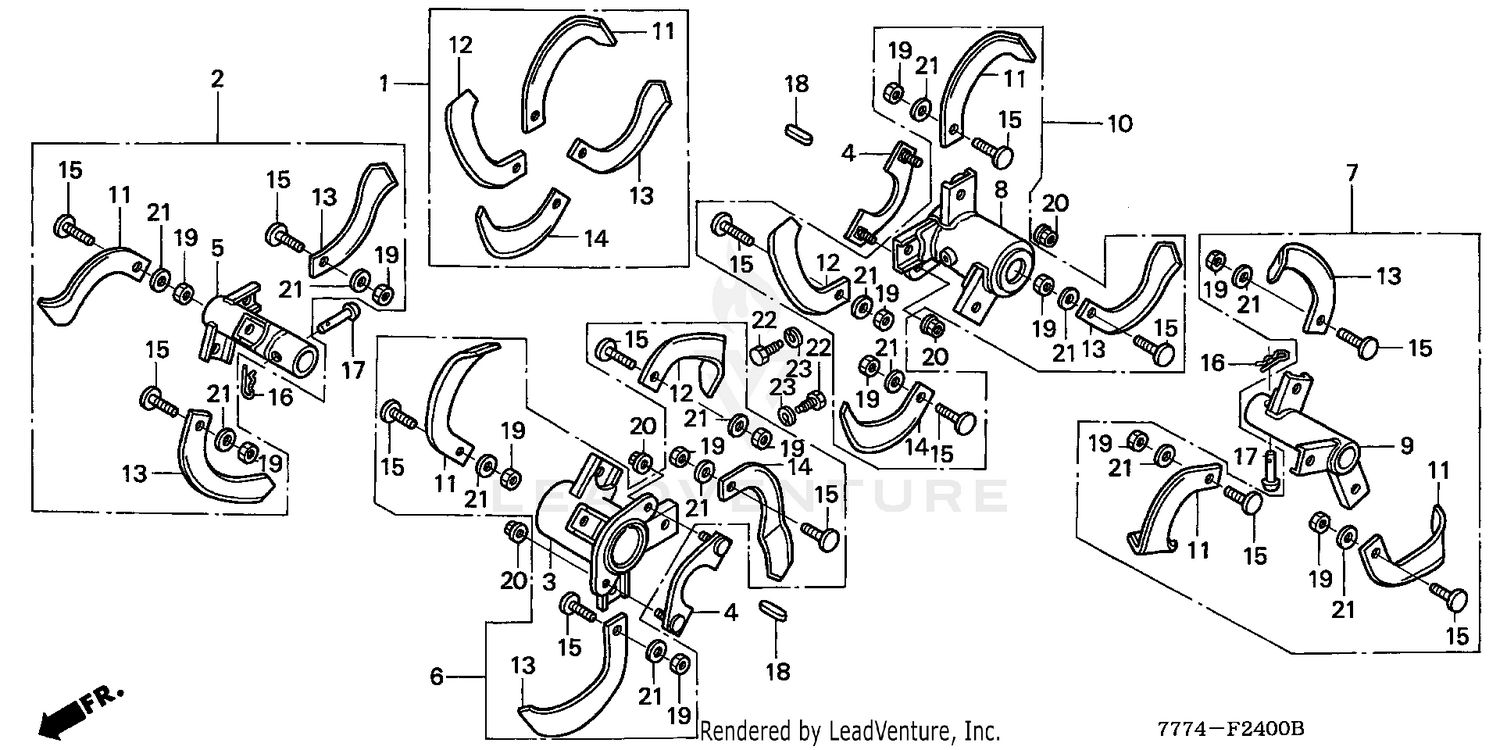

ROTARY TINE
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 11 | 72461-773-003 | TINE A, ROTARY Price: $14.48 |
| 12 | 72464-777-003 | TINE, R. ROTARY Price: $16.10 |
| 13 | 72465-773-003 | TINE B, ROTARY Price: $14.48 |
| 14 | 72468-777-003 | TINE, L. ROTARY Price: $16.10 |
| 15 | 90101-777-000 | BOLT, TINE FIXING (10X22) Price: $4.06 |
| 16 | 90652-773-003 | PIN, SNAP (10MM) Price: $1.86 |
| 17 | 90751-773-003 | PIN (10X45) Price: $5.68 |
| 18 | 90752-777-000 | KEY (7X7X30) Price: $8.24 |
| 19 | 94001-10080-0S | NUT, HEX. (10MM) Price: $1.82 |
| 21 | 94111-10800 | SEE PART DETAILS - PRI; WASHER, SPRING (10MM) Price: $1.46 |
