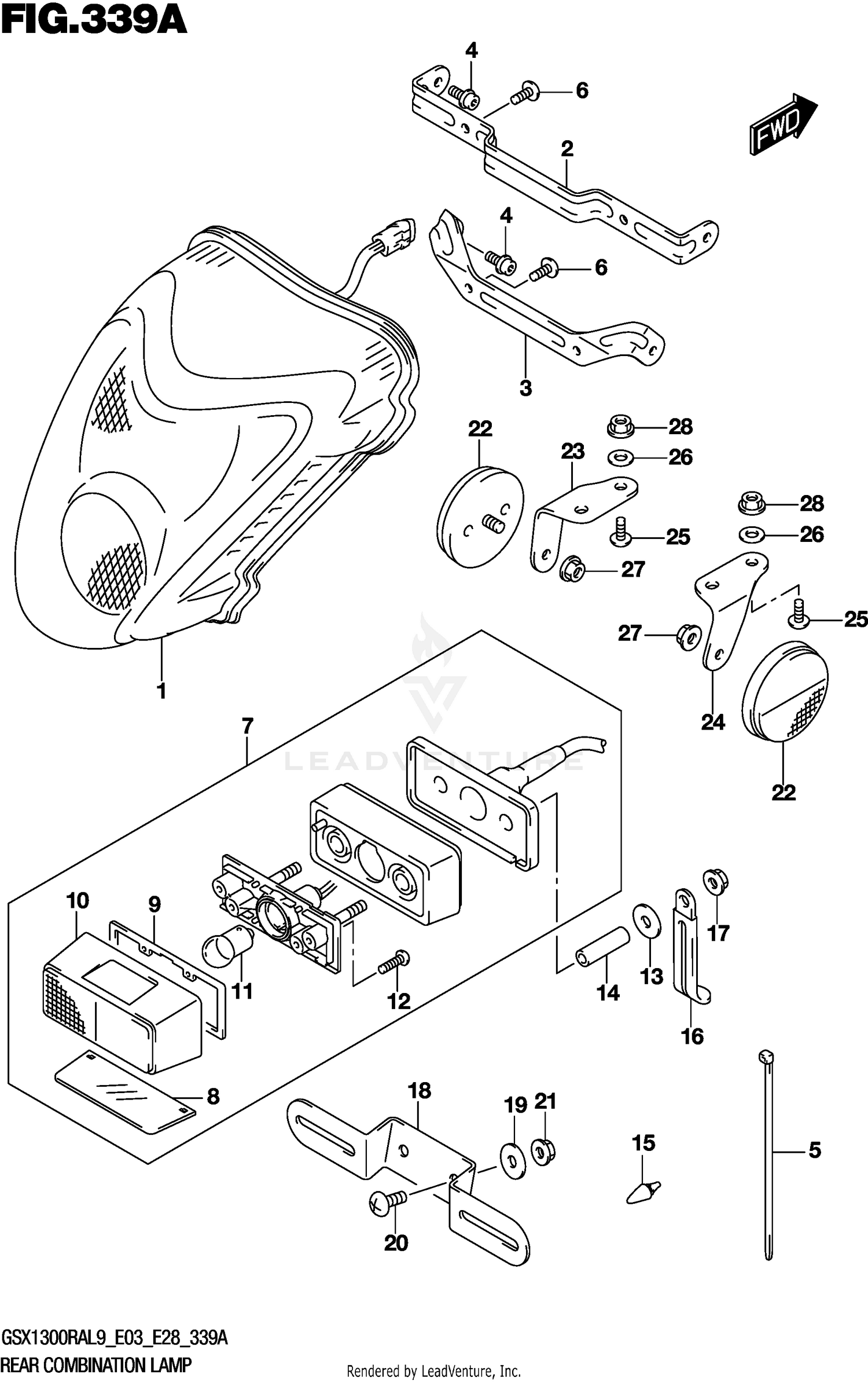

| Ref | Part Number | Description |
|---|
| 1 |
35710-15H30 |
LAMP ASSY, REAR COMBINATION Price: $435.09 |
| 2 |
35726-15H00 |
BRACKET, REAR COMBINATION Price: $13.83 |
| 3 |
35726-15H10 |
BRACKET, REAR COMBINATION Price: $13.83 |
| 4 |
09106-05031 |
SCREW, REAR COMBINATION LAMP Price: $3.51 |
| 5 |
09407-14407 |
CLAMP (L:145) Price: $3.70 |
| 6 |
03541-0516A |
SCREW Price: $1.65 |
| 7 |
35910-41G32 |
LAMP ASSY, LICENSE Price: $95.55 |
| 11 |
09471-12058 |
BULB (12V5W) This part replaces 09471-12140. Price: $1.67 |
| 13 |
09160-06077 |
WASHER (6.5X20X1.2) Price: $2.30 |
| 14 |
09180-06356 |
SPACER (6.5X9X34) Price: $4.93 |
| 15 |
09321-06038 |
CUSHION This part replaces 09321-06028. Price: $1.98 |
| 16 |
09404-06429 |
CLAMP (L:45) Price: $2.20 |
| 17 |
08316-1006A |
NUT (6X12) Price: $2.64 |
| 18 |
35927-15H00 |
BRACKET, LICENSE PLATE Price: $16.70 |
| 19 |
09160-06077 |
WASHER (6.5X20X1.2) Price: $2.30 |
| 20 |
02142-0616A |
SCREW Price: $1.65 |
| 21 |
08316-1006A |
NUT (6X12) Price: $2.64 |
| 22 |
35970-14A20 |
REFLECTOR ASSY, RR SIDE Price: $19.20 |
| 23 |
35975-15H00 |
BRACKET, REAR SIDE REAR, RH Price: $10.10 |
| 24 |
35976-15H00 |
BRACKET, REAR SIDE REAR, LH Price: $10.10 |
| 25 |
02142-0612A |
SCREW Price: $1.65 |
| 26 |
09160-06126 |
WASHER (6.5X14X2.0) Price: $2.33 |
| 27 |
08316-1005A |
NUT Price: $2.64 |
