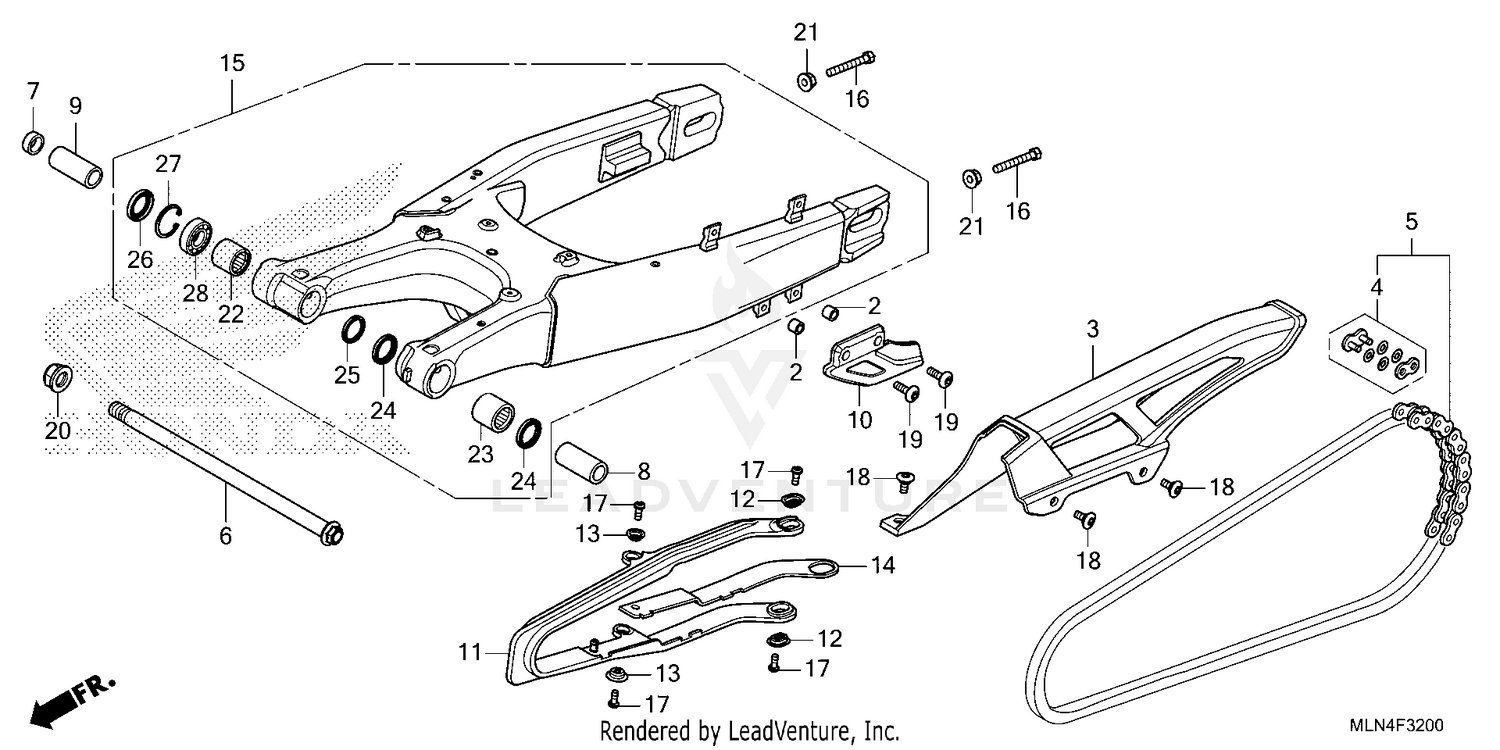

| Ref | Part Number | Description |
|---|
| 2 |
52161-MLC-D00 |
COLLAR, CHAIN GUARD Price: $2.29 |
| 3 |
40510-MKS-E00 |
CASE, DRIVE CHAIN Price: $103.87 |
| 4 |
40535-MKR-D11 |
MASTER LINK (DAIDO) Price: $13.25 |
| 5 |
40540-MLN-E01 |
CHAIN, DRIVE Price: $217.25 |
| 6 |
52101-MKS-E00 |
BOLT, SWINGARM PIVOT Price: $61.84 |
| 7 |
52141-MKS-E00 |
COLLAR A, PIVOT Price: $5.93 |
| 8 |
52142-MKS-E00 |
COLLAR, L. PIVOT DISTANCE Price: $19.58 |
| 9 |
52143-MKS-E00 |
COLLAR, R. PIVOT DISTANCE Price: $19.05 |
| 10 |
52160-MKS-E00 |
GUARD, CHAIN Price: $22.45 |
| 11 |
52170-MKS-E00 |
SLIDER, CHAIN Price: $73.09 |
| 12 |
52171-KR6-000 |
WASHER, CHAIN SLIDER Price: $2.95 |
| 13 |
52171-MAN-620 |
WASHER, CHAIN SLIDER Price: $3.67 |
| 14 |
52171-MKS-E00 |
RUBBER, CHAIN SLIDER Price: $12.76 |
| 15 |
52200-MKS-E00ZB |
SWINGARM SUB-ASSY., RR. (TYPE1) Price: $1,707.05 |
| 16 |
90106-MCF-D00 |
BOLT, HEX. (8X50) Price: $2.76 |
| 17 |
90107-MJP-G50 |
SCREW, PAN (5X12) Price: $2.15 |
| 18 |
90118-MJK-N20 |
SCREW, SPECIAL (6X14) Price: $3.09 |
| 19 |
90119-MKS-E00 |
BOLT, SPECIAL (6X20) Price: $2.93 |
| 20 |
90305-MCB-610 |
NUT, SPECIAL U (16MM) This part replaces 90305-MBZ-C50. Price: $9.62 |
| 21 |
90309-357-000 |
NUT, HEX. (10MM) Price: $4.27 |
| 22 |
91063-MZ1-003 |
BEARING, NEEDLE (24X31X28) (NOT AVAILABLE) Price: $28.82 |
| 23 |
91071-MT7-003 |
BEARING, NEEDLE (NTN) Price: $27.67 |
| 24 |
91202-MAL-601 |
DUST SEAL (25X33X4) Price: $8.75 |
| 25 |
91203-GC8-003 |
OIL SEAL (24X31X3.5) (NOT AVAILABLE) Price: $10.84 |
| 26 |
91214-MAL-601 |
DUST SEAL (23X35X5) Price: $9.38 |
| 27 |
94520-35000 |
CIRCLIP (INNER) (35MM) Price: $2.03 |
