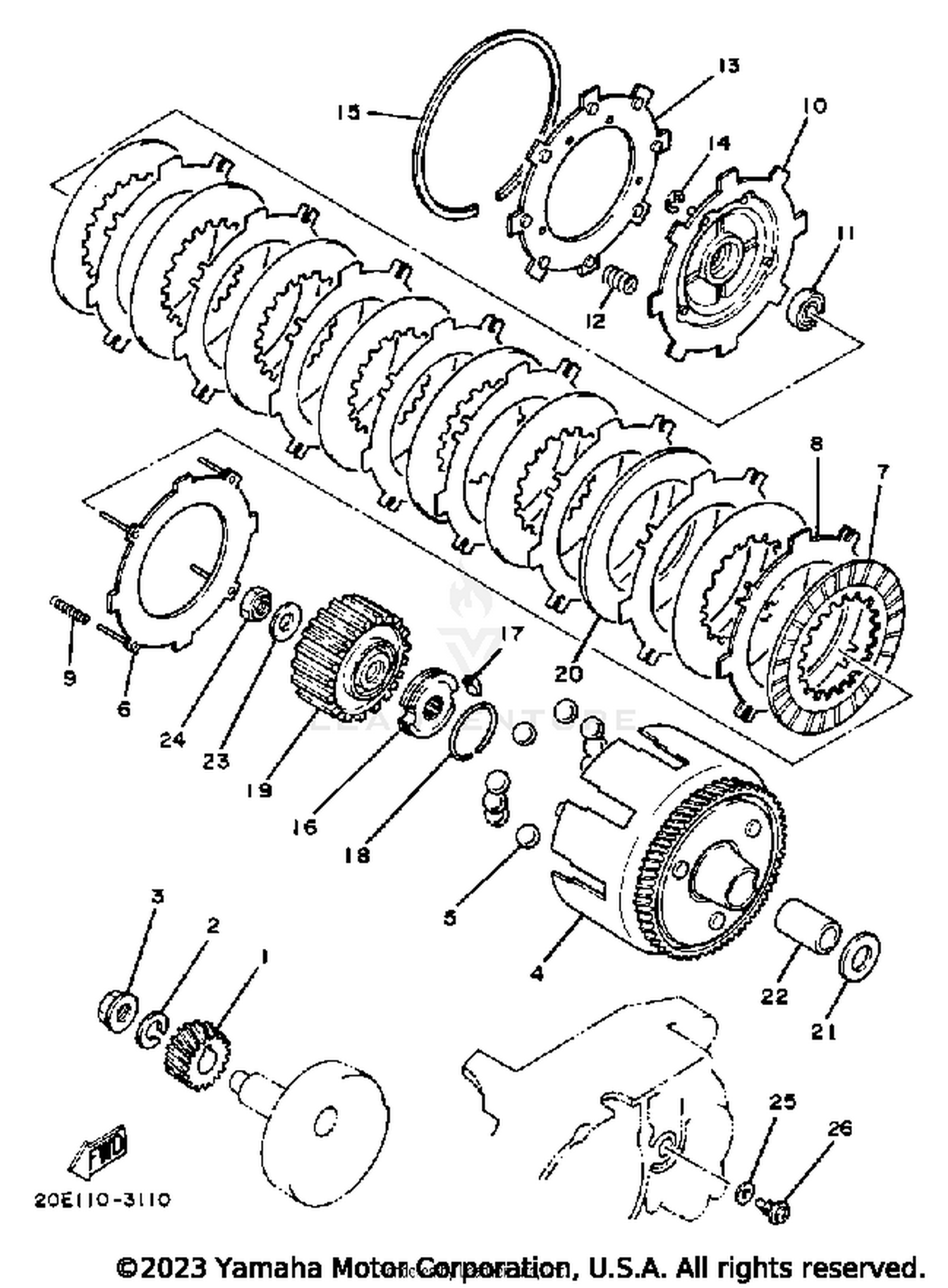

| Ref | Part Number | Description |
|---|
| 1 |
20E-16111-00-00 |
GEAR,PRI DRIVE Price: $42.12 |
| 2 |
90204-12007-00 |
WASHER, SPRING Price: $9.49 |
| 3 |
90179-12659-00 |
NUT This part replaces 90179-12244-00. Price: $9.49 |
| 4 |
20E-16150-01-00 |
PRI DRVN GEAR Price: $144.99 |
| 5 |
93505-08030-00 |
BALL Price: $9.49 |
| 6 |
20E-16520-00-00 |
PLATE,THRST WEIGHT Price: $20.99 |
| 7 |
3X3-16521-00-00 |
PLATE, FRICTION Price: $20.99 |
| 9 |
90501-10698-00 |
SPRING,COMPRESSION Price: $2.95 |
| 10 |
20E-16550-00-00 |
PRESSURE PLATE ASSY Price: $48.99 |
| 11 |
93306-00004-00 |
BEARING (B6000) Price: $41.99 |
| 12 |
90501-13647-00 |
SPRING, COMPRESSION Price: $7.99 |
| 13 |
3X3-16561-00-00 |
PLATE, PRESSURE 2 Price: $17.99 |
| 14 |
99080-03600-00 |
CIRCLIP This part replaces 93430-03013-00. Price: $3.55 |
| 15 |
93451-25067-00 |
CIRCLIP, INNER Price: $14.99 |
| 16 |
517-16180-00-00 |
ONE WAY BOSS COMP. Price: $24.99 |
| 17 |
384-15635-00-00 |
PAWL, KICK Price: $6.49 |
| 18 |
2T4-15637-01-00 |
SPRING, PAWL This part replaces 2T4-15637-00-00. Price: $3.85 |
| 19 |
20E-16571-00-00 |
BOSS,CLUTCH Price: $34.99 |
| 20 |
20E-16526-00-00 |
PLATE,CLUTCH 3 Price: $11.49 |
| 21 |
90201-174E1-00 |
WASHER, PLATE Price: $9.49 |
| 22 |
90560-17146-00 |
SPACER Price: $26.99 |
| 23 |
90208-12800-00 |
WASHER, CONICAL SPRING This part replaces 90208-12015-00. Price: $0.75 |
| 24 |
90179-12659-00 |
NUT This part replaces 90179-12244-00. Price: $9.49 |
| 25 |
90430-08204-00 |
GASKET This part replaces 90430-08069-00. Price: $8.99 |
