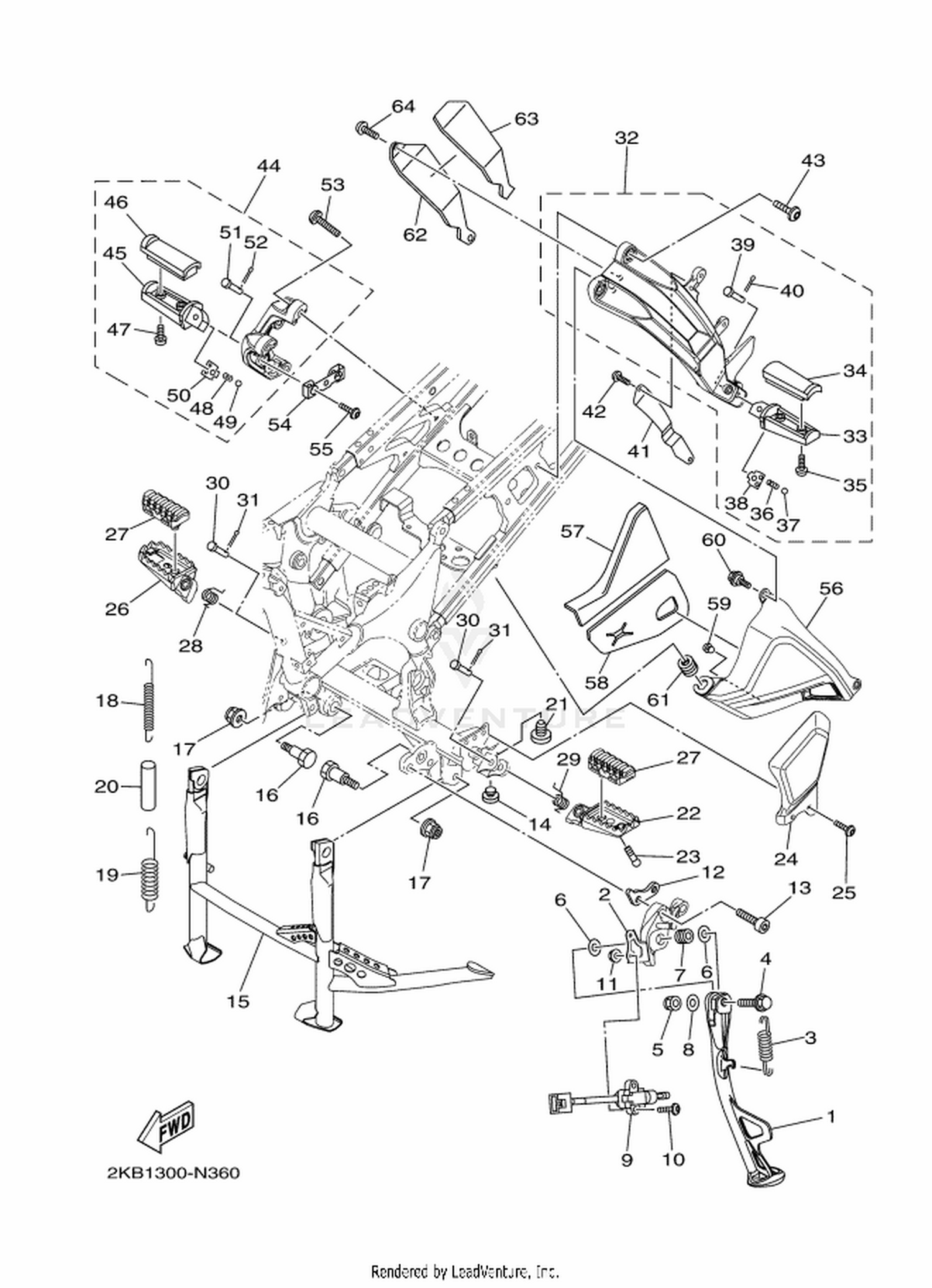

| Ref | Part Number | Description |
|---|
| 1 |
2BS-27311-00 |
STAND, SIDE Price: Call Us |
| 2 |
23P-27321-00 |
BRACKET, SIDE STAND Price: Call Us |
| 3 |
23P-27316-00 |
SPRING, SIDE STAND Price: Call Us |
| 4 |
90105-102A6 |
BOLT, FLANGE Price: Call Us |
| 5 |
90185-10012 |
NUT, SELF-LOCKING Price: Call Us |
| 6 |
90201-10051 |
WASHER, PLATE Price: Call Us |
| 7 |
90387-10020 |
COLLAR Price: Call Us |
| 8 |
90201-101J1 |
WASHER, PLATE Price: Call Us |
| 9 |
23P-82566-60 |
SWITCH, SIDE STAND Price: Call Us |
| 10 |
92017-05020 |
BOLT, BUTTON HEAD Price: Call Us |
| 11 |
95607-05200 |
NUT, U FLANGE Price: Call Us |
| 12 |
23P-27322-00 |
WASHER Price: Call Us |
| 13 |
90110-10010 |
BOLT, HEXAGON SOCKET HEAD Price: Call Us |
| 14 |
128-27114-00 |
STOPPER, MAIN STAND Price: Call Us |
| 15 |
23P-27111-00 |
STAND, MAIN Price: Call Us |
| 16 |
90109-10057 |
BOLT Price: Call Us |
| 17 |
95602-10200 |
NUT, U FLANGE Price: Call Us |
| 18 |
23P-27116-00 |
SPRING, MAIN STAND Price: Call Us |
| 19 |
23P-27116-10 |
SPRING, MAIN STAND Price: Call Us |
| 20 |
90445-19003 |
HOSE Price: Call Us |
| 21 |
23P-27114-00 |
STOPPER, MAIN STAND Price: Call Us |
| 22 |
23P-27451-00 |
FOOTREST Price: Call Us |
| 23 |
90109-08174 |
BOLT Price: Call Us |
| 24 |
23P-27445-10 |
PLATE 1 Price: Call Us |
| 25 |
92012-06012 |
BOLT, BUTTON HEAD Price: Call Us |
| 26 |
23P-27461-00 |
FOOTREST Price: Call Us |
| 27 |
23P-27413-00 |
COVER, FOOTREST Price: Call Us |
| 28 |
90508-20051 |
SPRING, TORSION Price: Call Us |
| 29 |
90508-20041 |
SPRING, TORSION Price: Call Us |
| 30 |
91701-08040 |
PIN Price: Call Us |
| 31 |
91401-25015 |
PIN, COTTER Price: Call Us |
| 32 |
23P-27430-10 |
REAR FOOTREST ASSY 1 Price: Call Us |
| 33 |
5RT-27431-00 |
FOOTREST, REAR 1 Price: Call Us |
| 36 |
90501-12743 |
SPRING, COMPRESSION Price: Call Us |
| 37 |
93501-04011 |
BALL Price: Call Us |
| 38 |
5VX-27437-00 |
WASHER, SPECIAL Price: Call Us |
| 40 |
91401-25015 |
PIN, COTTER Price: Call Us |
| 41 |
23P-27412-00 |
BRACKET, FOOTREST 1 Price: Call Us |
| 43 |
90109-085G6 |
BOLT Price: Call Us |
| 44 |
23P-27440-10 |
REAR FOOTREST ASSY 2 Price: Call Us |
| 45 |
5RT-27441-00 |
FOOTREST, REAR 2 Price: Call Us |
| 48 |
90501-12743 |
SPRING, COMPRESSION Price: Call Us |
| 49 |
93501-04011 |
BALL Price: Call Us |
| 50 |
5VX-27437-00 |
WASHER, SPECIAL Price: Call Us |
| 52 |
91401-25015 |
PIN, COTTER Price: Call Us |
| 53 |
90109-085G6 |
BOLT Price: Call Us |
| 54 |
2KB-27333-00 |
BRKT Price: Call Us |
| 55 |
92012-08014 |
BOLT, BUTTON HEAD Price: Call Us |
| 56 |
23P-27491-00 |
PROTECTOR Price: Call Us |
| 57 |
23P-2749A-00 |
SEAT 3 Price: Call Us |
| 58 |
23P-2749B-00 |
SEAT 4 Price: Call Us |
| 59 |
1J7-21717-00 |
DAMPER Price: Call Us |
| 60 |
90109-06264 |
BOLT Price: Call Us |
| 61 |
90480-12325 |
GROMMET Price: Call Us |
| 62 |
2BS-27422-00 |
BRACKET, FOOTREST 2 Price: Call Us |
| 63 |
2BS-2175P-00 |
SEAT 4 Price: Call Us |
