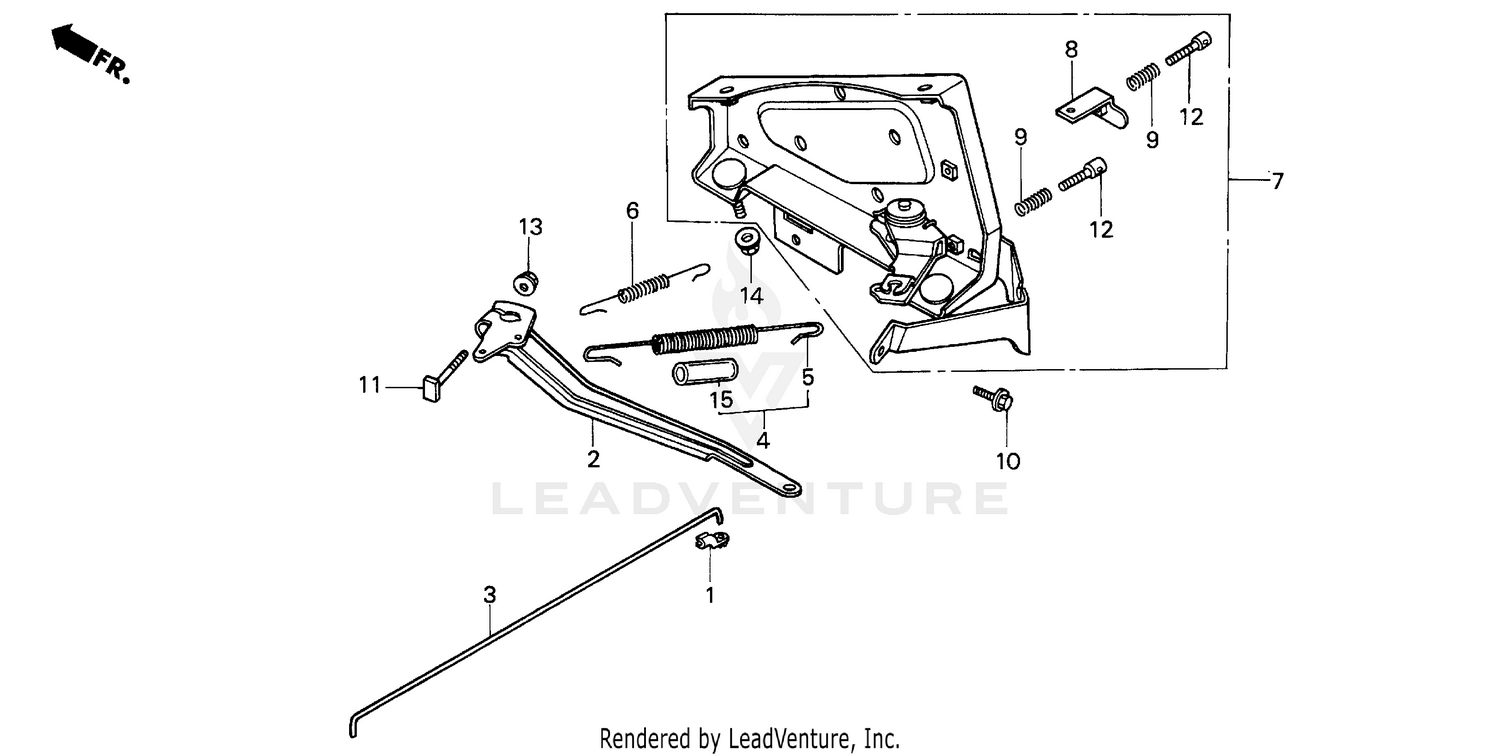

| Ref | Part Number | Description |
|---|
| 1 |
16263-ZE3-790 |
JOINT, ROD Price: $5.32 |
| 2 |
16551-ZE3-790 |
ARM, GOVERNOR Price: $14.36 |
| 3 |
16555-ZE3-790 |
ROD, GOVERNOR Price: $4.28 |
| 4 |
16560-ZE3-790 |
SPRING ASSY., GOVERNOR Price: $5.96 |
| 5 |
16561-ZE3-790 |
SPRING, GOVERNOR Price: $5.58 |
| 6 |
16563-ZE3-790 |
SPRING, GOVERNOR IDLE Price: $3.94 |
| 7 |
16570-ZE3-791 |
CONTROL ASSY. Price: $42.52 |
| 8 |
16571-898-000 |
PLATE, CONTROL Price: $4.80 |
| 9 |
16584-ZE3-790 |
SPRING, CONTROL ADJUSTING Price: $4.02 |
| 10 |
90013-883-000 |
SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845). Price: $1.94 |
| 11 |
90015-ZE3-790 |
BOLT, GOVERNOR ARM (Honda Code 2560852). Price: $2.90 |
| 12 |
90121-ZE3-790 |
SCREW, LOCK PAN Price: $2.40 |
| 13 |
94050-06000 |
SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623). Price: $0.82 |
| 14 |
94050-08000 |
SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0481143). Price: $1.18 |
