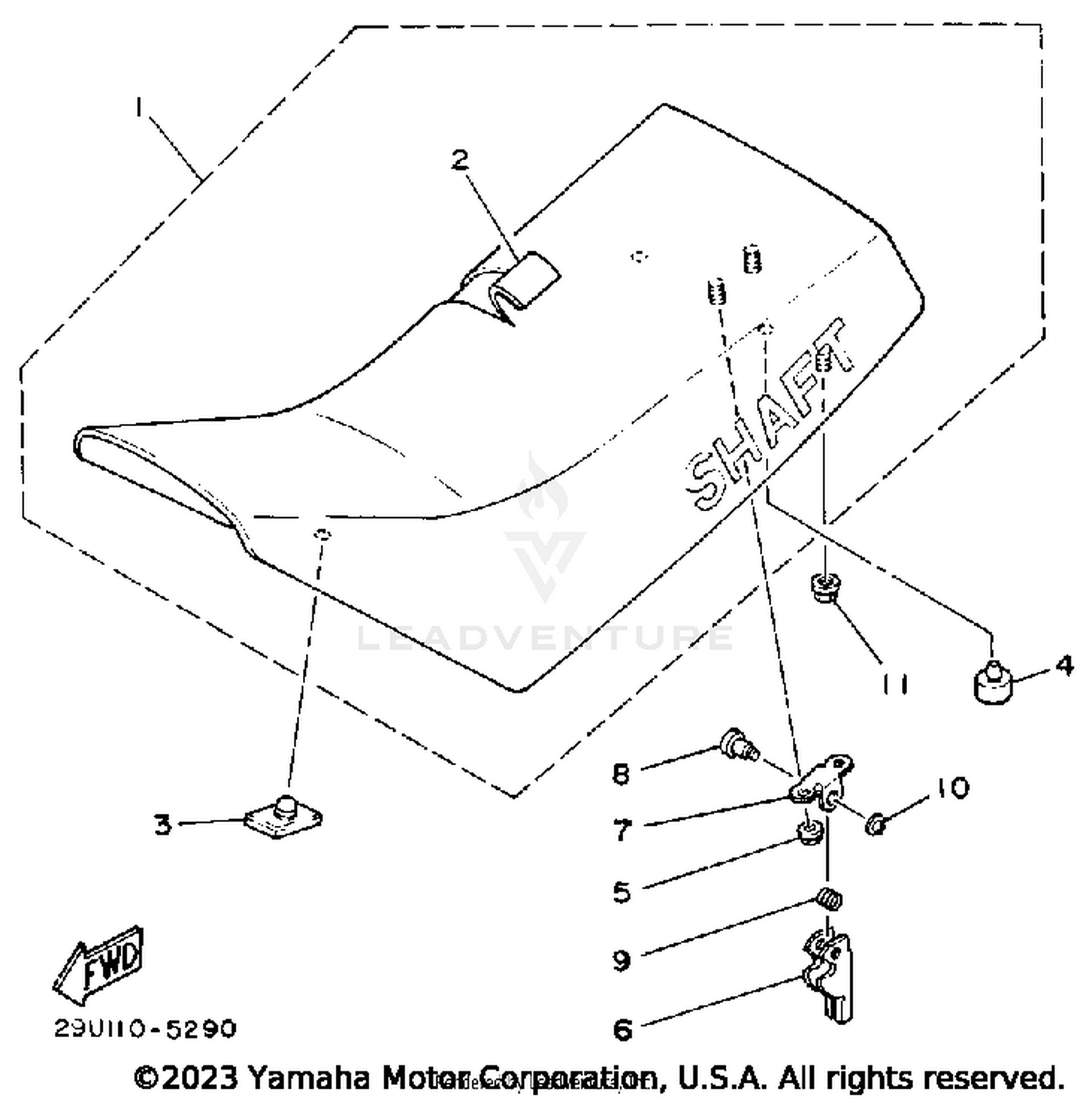

SEAT
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 3GC-24710-00-00 | SINGLE SEAT ASSEMBLY This part replaces 29U-W2471-00-00. Price: $278.99 |
| 2 | 3GC-24711-00-00 | COVER, SINGLE SEAT This part replaces 29U-24711-00-00. Price: $203.99 |
| 3 | 509-24724-00-00 | DAMPER, SEAT Price: $11.99 |
| 4 | 371-27114-00-00 | STOPPER, MAIN STAND Price: $8.49 |
| 5 | 95780-06500-00 | NUT, FLANGE This part replaces 95701-06500-00. Price: $2.95 |
| 6 | 29U-24776-00-00 | LEVER, SEAT Price: $15.49 |
| 7 | 4K0-24775-00-00 | BRACKET, SEAT LEVER Price: $7.49 |
| 8 | 4K0-24774-01-00 | PIN Price: $17.99 |
| 9 | 90508-20454-00 | SPRING, TORSION Price: $8.49 |
| 10 | 99080-04600-00 | CLIP This part replaces 93430-04002-00. Price: $1.99 |
