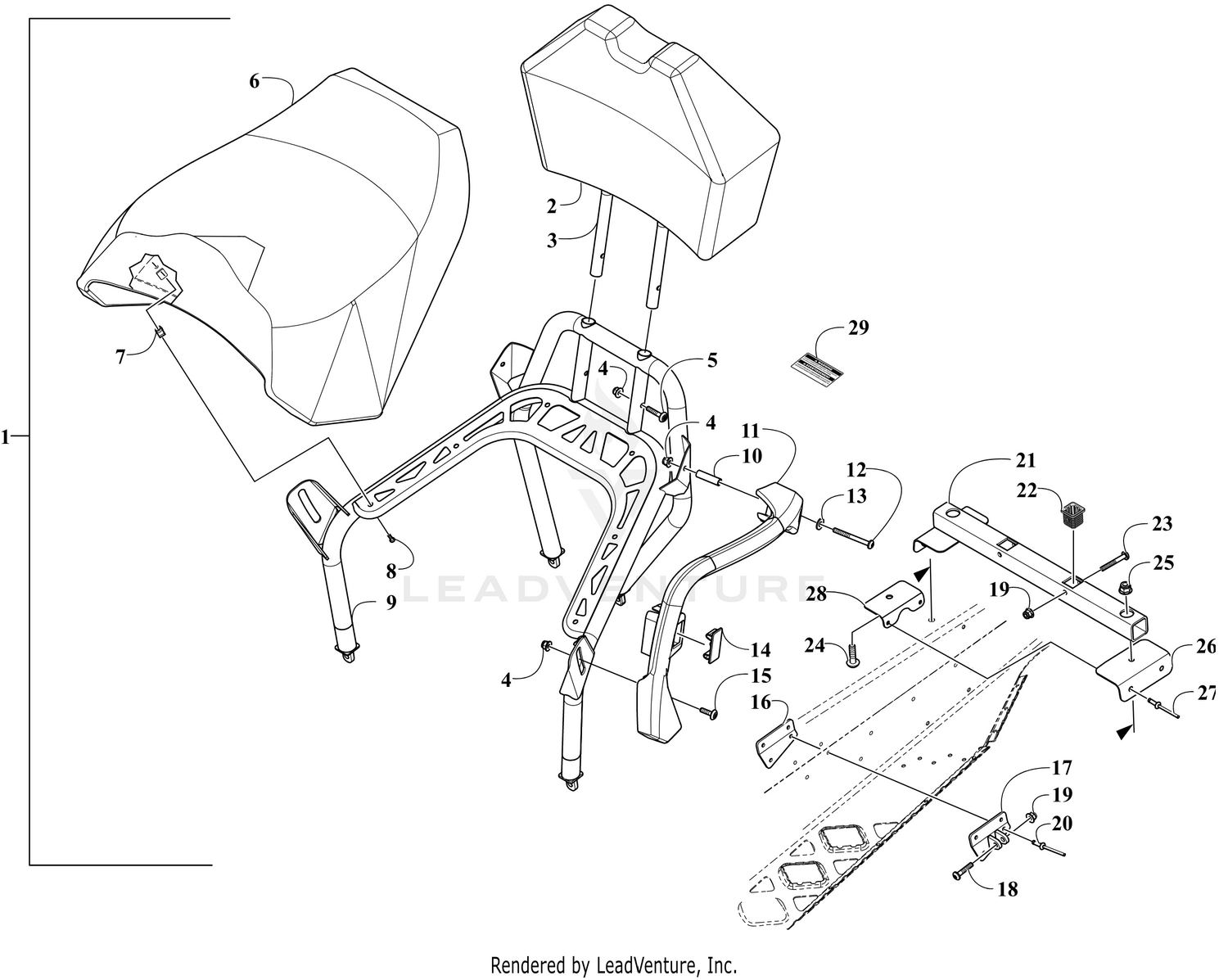

PASSENGER SEAT AND BACKREST ASSEMBLY [109242]

Ref	Part Number	Description
2	5706-785	BACKREST,PASSENGER-ASSY Price: $146.95
3	5706-872	BACKREST,2-UP SEAT-PTD BLK Price: $65.95
4	8427-602	Nut, Hex Price: $0.23
5	8476-630	Screw, Machine Price: $1.18
6	5706-758	SEAT,PASSENGER-ASSY (5/6/8/9000) Price: $399.95
7	1623-637	Clip, U-Nut Price: $2.61
8	8470-520	Screw, Machine Price: $0.48
9	6706-351	FRAME,2-UP SEAT-PTD BLK Price: $283.95
10	6606-444	Axel, Handhold Price: $6.06
11	4706-532	Handhold - Right Price: $299.95
11	5606-085	Handhold - Left Price: $299.95
12	2623-079	Screw, Machine Price: $1.92
13	8050-217	Washer, Flat Price: $0.24
14	0409-070	Plug, Switch Hole Price: $3.88
15	8476-620	Screw, Machine Price: $0.48
16	6716-420	Bracket, Reinforcement - Right Price: $16.28
16	6716-421	Bracket, Reinforcement - Left Price: $16.28
17	6716-418	Bracket, Side - Right - Black Price: $52.95
17	6716-419	Bracket, Side - Left - Black Price: $52.95
18	8468-630	Screw, Machine Price: $0.71
19	8427-603	Nut, Lock Price: $0.35
20	1623-206	Rivet Price: $2.30
21	6716-417	Bracket, Tunnel - Black Price: $96.95
22	0441-592	BUSHING,RACK FRAME Price: $2.29
23	8468-645	Screw, Machine Price: $1.32
24	8477-830	Screw, Machine Price: $1.92
25	8427-805	Nut, Lock Price: $1.18
26	2607-115	Gusset, Support Price: $25.95
27	1623-257	Rivet Price: $2.30
28	1607-095	Gusset, Support Price: $3.38
