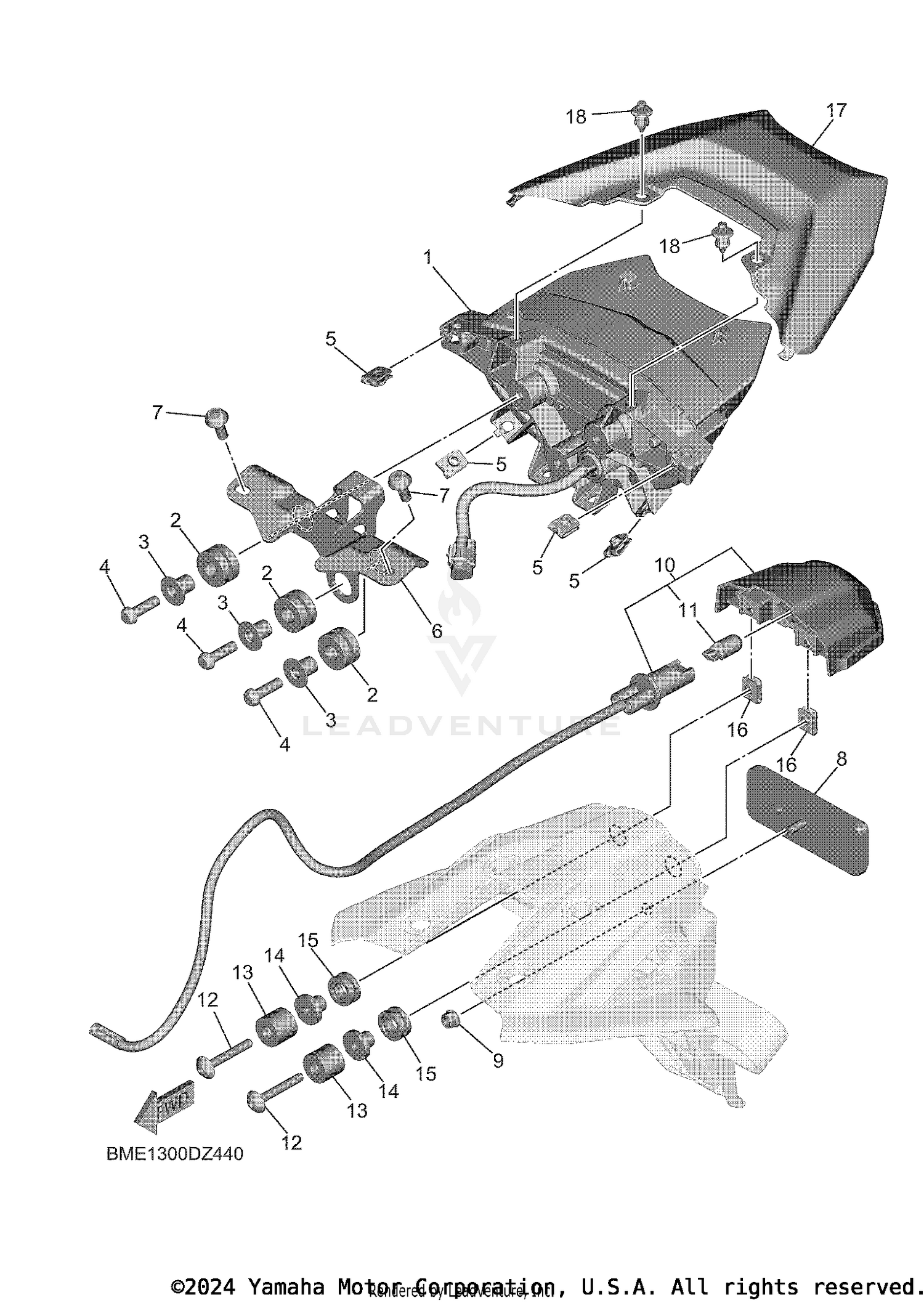

TAILLIGHT
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | BME-84700-00-00 | TAILLIGHT ASSY Price: $319.99 |
| 2 | 90480-14229-00 | GROMMET Price: $9.49 |
| 3 | 90387-06289-00 | COLLAR Price: $3.18 |
| 4 | 92012-06020-00 | BOLT, BUTTON HEAD Price: $9.49 |
| 5 | 90183-050A6-00 | NUT, SPRING This part replaces 90183-05076-00. Price: $2.95 |
| 6 | BME-2117E-00-00 | BRACKET, TAILLIGHT Price: $50.99 |
| 7 | 90111-06029-00 | BOLT, HEX. SOCKET BUTTON Price: $6.49 |
| 8 | 3Y6-85130-02-00 | REAR REFLECTOR ASSY Price: $30.99 |
| 9 | 95607-05200-00 | NUT, U FLANGE This part replaces 95602-05200-00. Price: $10.49 |
| 10 | 2PN-84745-02-00 | LICENCE LIGHT UNIT ASSY Price: $45.99 |
| 11 | 2DP-H4347-00-00 | BULB (12V-5W) Price: $8.49 |
| 12 | 90111-05006-00 | BOLT, HEX. SOCKET BUTTON Price: $8.49 |
| 13 | 90387-08125-00 | COLLAR Price: $6.49 |
| 14 | 90387-05044-00 | COLLAR Price: $15.49 |
| 15 | 90480-14017-00 | GROMMET Price: $5.49 |
| 16 | 90183-050A6-00 | NUT, SPRING This part replaces 90183-05076-00. Price: $2.95 |
| 17 | BME-2172X-00-00 | COVER, TAILLIGHT Price: $31.99 |
