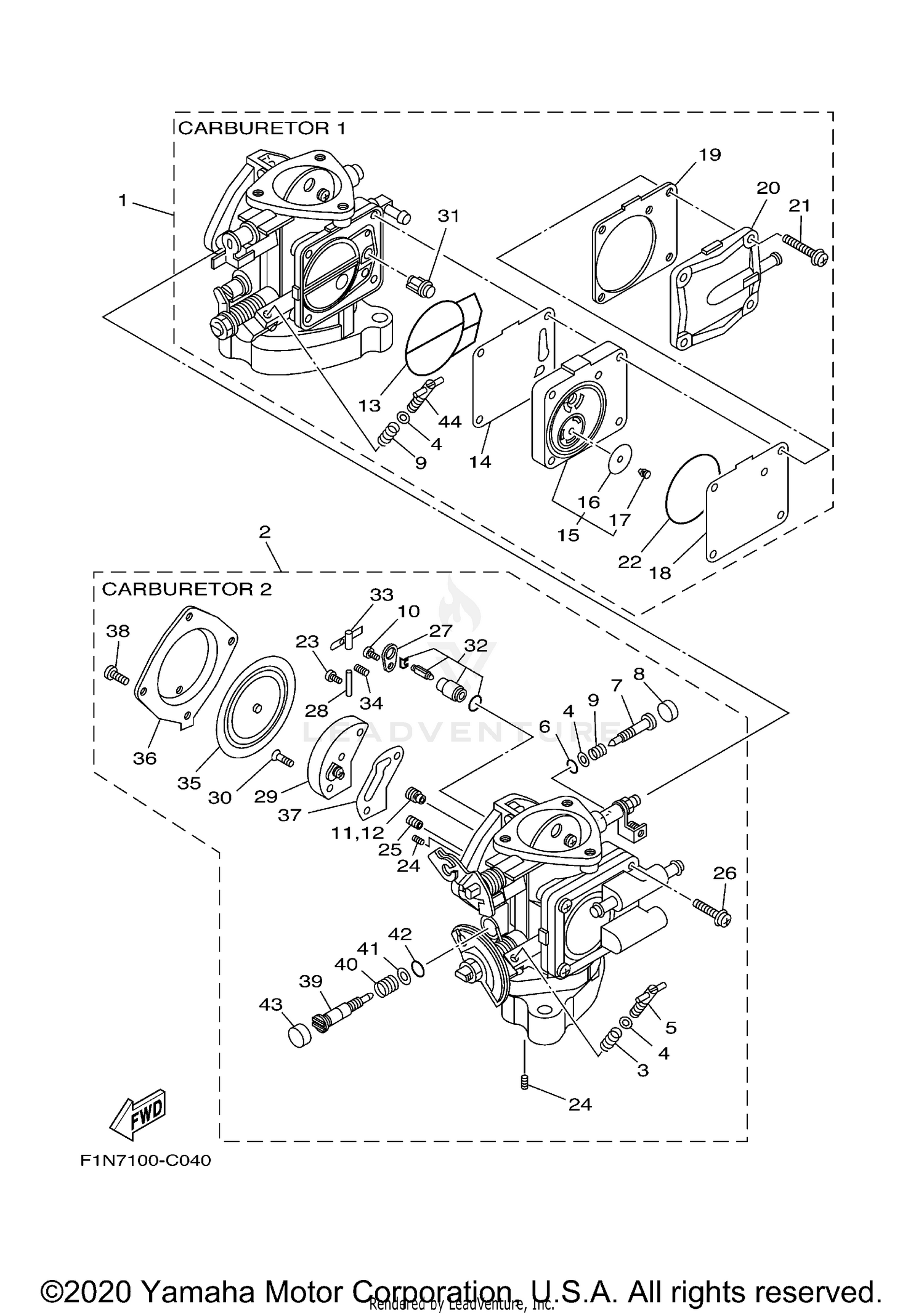

| Ref | Part Number | Description |
|---|
| 1 |
64U-14301-11-00 |
CARBURETOR ASSY 1 This part replaces 64U-14301-10-00. Price: $611.99 |
| 2 |
64U-14302-11-00 |
CARBURETOR ASSY 2 This part replaces 64U-14302-10-00. Price: $771.99 |
| 4 |
812-14235-00-00 |
WASHER, NEEDLE Price: $2.99 |
| 6 |
6K8-14562-00-00 |
O-RING This part replaces 812-14147-00-00. Price: $2.25 |
| 7 |
64U-14946-00-00 |
PLATE, NEEDLE FITTING Price: $30.99 |
| 8 |
64U-1432A-00-00 |
PLUG Price: $3.99 |
| 9 |
68V-14331-00-00 |
SPRING, THROTTLE VAL This part replaces 3KW-14932-00-00. Price: $11.15 |
| 10 |
6M6-14503-00-00 |
SCREW Price: $7.49 |
| 13 |
6K8-14564-00-00 |
O-RING Price: $11.49 |
| 23 |
6K8-14503-02-00 |
SCREW Price: $6.99 |
| 24 |
6K8-14521-10-00 |
SCREW Price: $34.49 |
| 25 |
830-14231-14-00 |
JET, MAIN (# 70) Price: $10.99 |
| 27 |
6K8-14527-11-00 |
PLATE Price: $11.49 |
| 28 |
439-14186-00-00 |
PIN, FLOAT Price: $12.49 |
| 29 |
6R7-24412-02-00 |
BODY 1 Price: $45.99 |
| 30 |
6K8-14523-12-00 |
SCREW, STOP This part replaces 6K8-14523-11-00. Price: $7.99 |
| 31 |
6R7-14569-00-00 |
STRAINER Price: $15.49 |
| 32 |
61X-14916-16-00 |
JET NEEDLE COMP. Price: $23.49 |
| 33 |
6K8-14547-01-00 |
ARM, FLOAT Price: $8.49 |
| 34 |
6R7-14253-00-00 |
SPRING Price: $3.49 |
| 35 |
6R7-14541-00-00 |
DIAPHRAGM, PUMP Price: $41.49 |
| 36 |
6R7-14542-00-00 |
BODY, PUMP 1 Price: $56.49 |
| 37 |
6K8-14536-11-00 |
GASKET Price: $10.99 |
| 38 |
98580-05012-00 |
SCREW, PAN HEAD This part replaces 97880-05012-00. Price: $7.99 |
| 39 |
64U-14923-10-00 |
SCREW, PILOT Price: $37.99 |
| 40 |
6K8-14589-00-00 |
SPRING Price: $4.99 |
| 41 |
822-14235-00-00 |
WASHER, NEEDLE Price: $4.90 |
| 42 |
583-14561-00-00 |
O-RING Price: $5.99 |
| 43 |
64U-1432A-10-00 |
PLUG Price: $4.99 |
