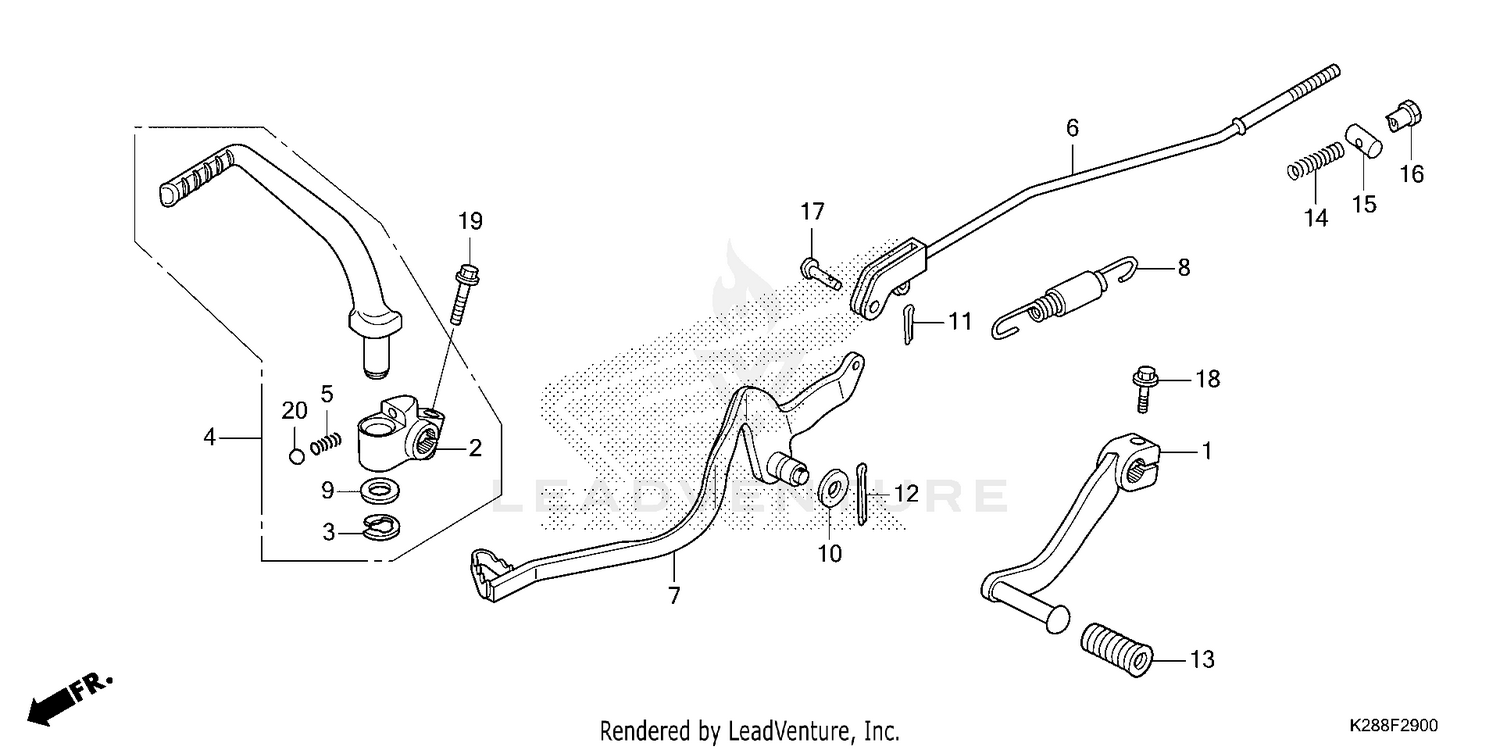

| Ref | Part Number | Description |
|---|
| 1 |
24701-K28-305 |
PEDAL, GEARSHIFT (COO) Price: $44.88 |
| 2 |
28241-K28-910 |
JOINT, KICK ARM Price: $52.04 |
| 3 |
28293-333-000 |
CLIP, KICK STARTER ARM Price: $3.05 |
| 4 |
28300-K28-305 |
ARM ASSY., KICK STARTER (COO) Price: $127.52 |
| 5 |
28333-KK0-000 |
SPRING, KICK STARTER Price: $2.87 |
| 6 |
43451-K28-910 |
ROD, RR. BRAKE Price: $19.93 |
| 7 |
46500-K28-305 |
PEDAL, BRAKE (COO) This part replaces 46500-K28-910. Price: $72.98 |
| 8 |
46513-KRH-900 |
SPRING SET, BRAKE PEDAL Price: $12.24 |
| 9 |
90505-KRM-860 |
WASHER (15.5X22) Price: $0.38 |
| 10 |
94101-10000 |
WASHER, PLAIN (10MM) Price: $1.20 |
| 11 |
94201-20120 |
PIN, COTTER (2.0X12) Price: $1.08 |
| 12 |
94201-20150 |
PIN, COTTER (2.0X15) Price: $1.08 |
| 13 |
95011-40000 |
RUBBER, CHANGE PEDAL Price: $1.44 |
| 14 |
95014-73100 |
SPRING A, BRAKE ROD Price: $1.47 |
| 15 |
95015-32001 |
JOINT B, BRAKE ARM Price: $1.07 |
| 16 |
95015-42000 |
NUT B, BRAKE ROD ADJUSTING Price: $2.20 |
| 17 |
95015-53000 |
PIN, JOINT (C) Price: $3.84 |
| 18 |
95701-06020-08 |
BOLT, FLANGE (6X20) Price: $0.40 |
| 19 |
95701-08028-08 |
BOLT, FLANGE (8X28) Price: $2.20 |
